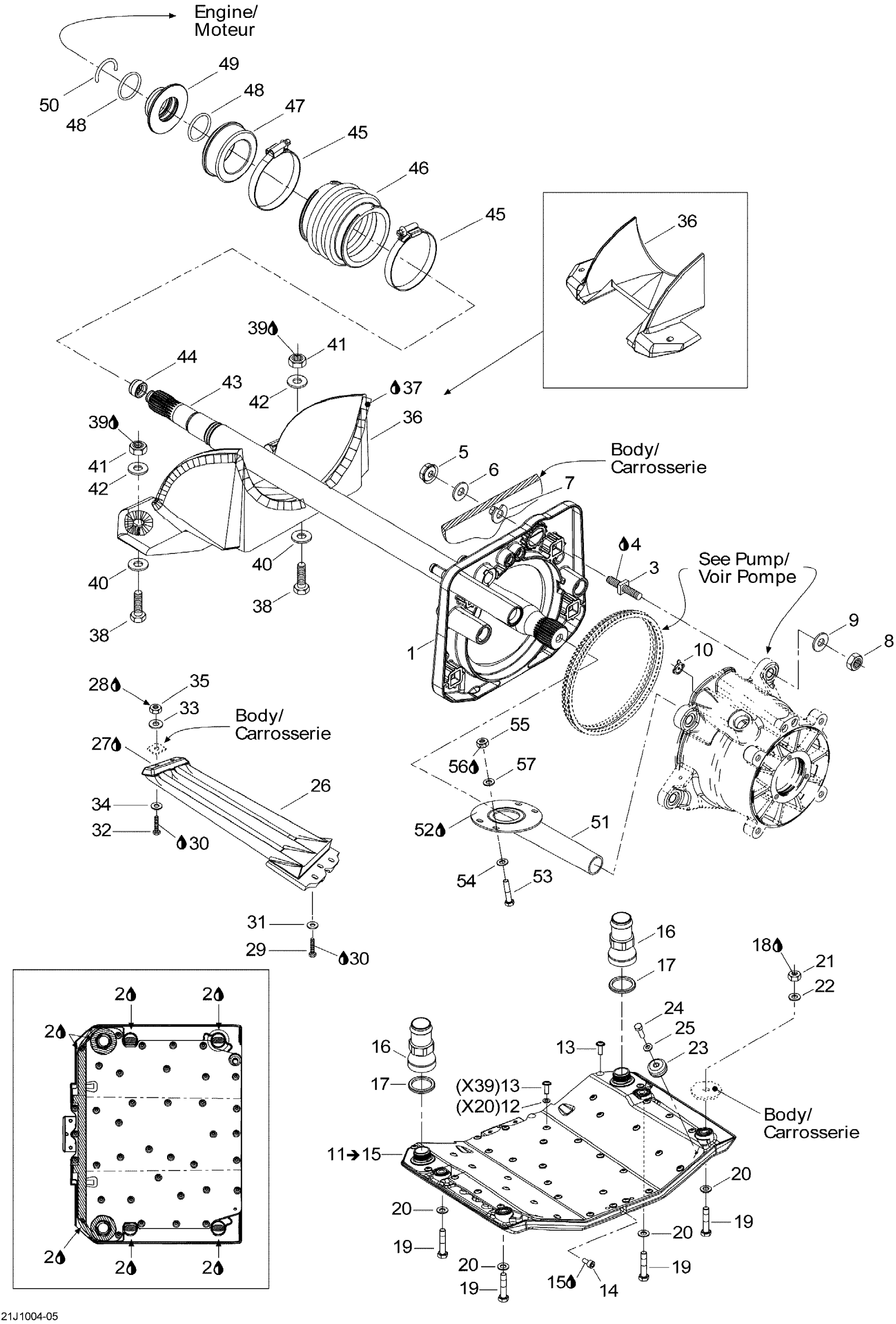

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120333

Unavailable

2

Instant Gasket

219701421

$50.02

3

Square Stud

250300022

$15.57

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

5

Elastic Stop Nut M10, Brass

232501200

$2.16

6

Flat Washer 10 mm, Stainless

234002600

$1.85

7

Shim 0.3 mm

272000053

$8.02

8

Elastic Stop Nut M10, Brass

232501200

$2.16

9

Flat Washer

211200051

$1.34

10

Reducer, Green This part replaces 271001586.

271002029

$12.82

11

RIDING PLATE - Call your local BRP dealership | Includes 10 to 13

204120367

Unavailable

12

Sealing Washer

250200114

$3.61

13

Torx Screw M6 X 14

250000384

$6.15

14

Socket Drain Plug M6 X 12

250500005

$11.74

15

RETAINING RING - Call your local BRP dealership

293710114

Unavailable

16

Straight Plastic Fitting

293710111

$6.88

17

O-Ring

293300121

$6.18

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

Hex. Screw M8 X 40

207084060

$1.85

20

Flat Washer 8 mm, Stainless

234082600

$1.98

21

Hex. Elastic Nut M8

232581600

$1.25

22

Stainless, Flat Washer 8 mm

234081600

$0.46

23

Anode Zinc

271001813

$13.62

24

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

25

Stainless Flat Washer M6

234061600

$0.25

26

PUMP GRATE - Call your local BRP dealership

204120375

Unavailable

27

Instant Gasket

219701421

$50.02

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

Hex. Screw M6 X 16

207161660

$1.22

30

Loctite 271, 10 ml

293800005

$20.77

31

Stainless Flat Washer M6

234061600

$0.25

32

Hex. Screw M8 X 40

207184060

$1.85

33

Stainless, Flat Washer 8 mm

234081600

$0.46

34

Stainless, Flat Washer 8 mm

234081600

$0.46

35

Hex. Elastic Nut M8

232581600

$1.25

36

INLET RAMP - Call your local BRP dealership

204120370

Unavailable

37

Instant Gasket

219701421

$50.02

38

Hex. Screw M8 X 40

207084060

$1.85

39

Loctite 243, 10 ml

293800060

$20.77

40

Stainless, Flat Washer 8 mm

234081600

$0.46

41

Hex. Elastic Nut M8

232581600

$1.25

42

Flat Washer 8 mm, Stainless

234082600

$1.98

43

Drive Shaft

271001550

$265.82

44

Drive Shaft Plug

272000173

$7.02

45

Norma Clamp

293650079

$8.89

46

Bellow This part replaces 271001422.

271001933

$18.82

47

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

48

O-Ring

293300107

$0.83

49

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

50

C-Clip

271001577

$2.68

51

SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001716.

271001836

Unavailable

52

Instant Gasket

219701421

$50.02

53

Phillips Screw M5 X 35

208653560

$1.85

54

Flat Washer M5, Stainless

234051600

$0.64

55

Hex. Elastic Nut M5 | X

232551600

$0.91

56

Silicone Sealant 51388, 300 ml

296000309

$35.72

57

Flat Washer 5 mm, Stainless

234052600

$0.64
