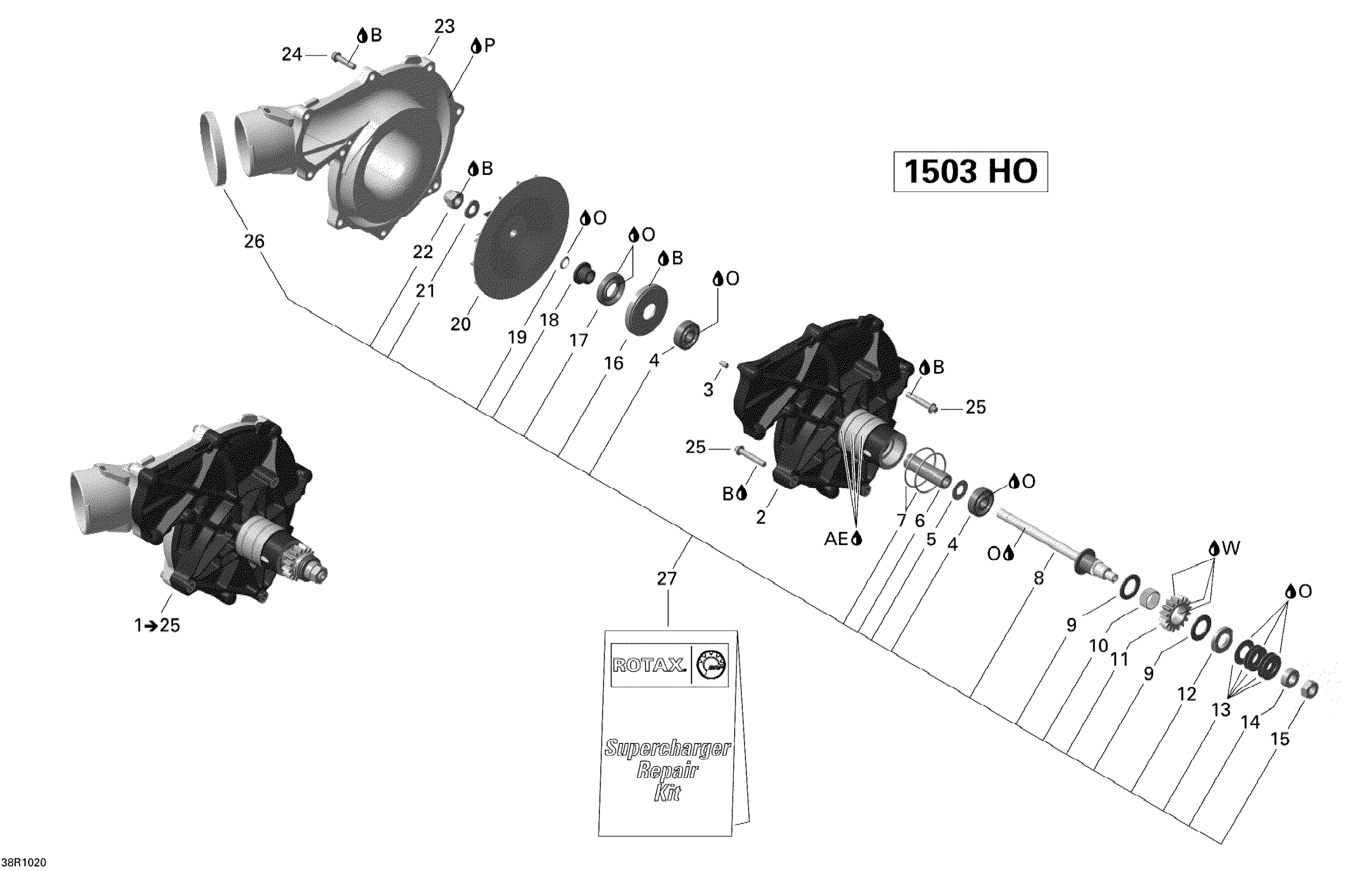

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Supercharger Diagram

#

Description
Price

1

Supercharge Ass'y | Includes 1 to 25 This part replaces 420881992.

420893563

$1,394.22

2

Compressor Base Plate

420867180

$228.12

3

Drive Pin 5 X 10

420929650

$1.34

4

Bearing Ball This part replaces 420832710.

420832713

$31.82

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

O-Ring | Included in gasket kit

420650270

$5.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Pin This part replaces 420632430.

420632435

$28.57

11

Not Available As Spare Part - Friction Washer

Unavailable

12

LOCK WASHER - Call your local BRP dealership

420926377

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

17

Oil Seal

420950940

$24.67

18

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

19

O-Ring

420950950

$0.83

21

SHIM - Call your local BRP dealership

420627418

Unavailable

22

CAP NUT - Call your local BRP dealership

420842833

Unavailable

20

Compressor Impeller

420867195

$688.78

23

Compressor Housing

420867157

$139.07

24

Torx Flange Screw M6 X 25

420641238

$2.68

25

Torx Flange Screw M6 X 35

420641258

$2.78

26

Gear Clamp

420851703

$16.87

27

Supercharger Kit This part replaces 420881101.

420881102

$450.42

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

AE

Grease, Super Lube

293550030

$24.67
