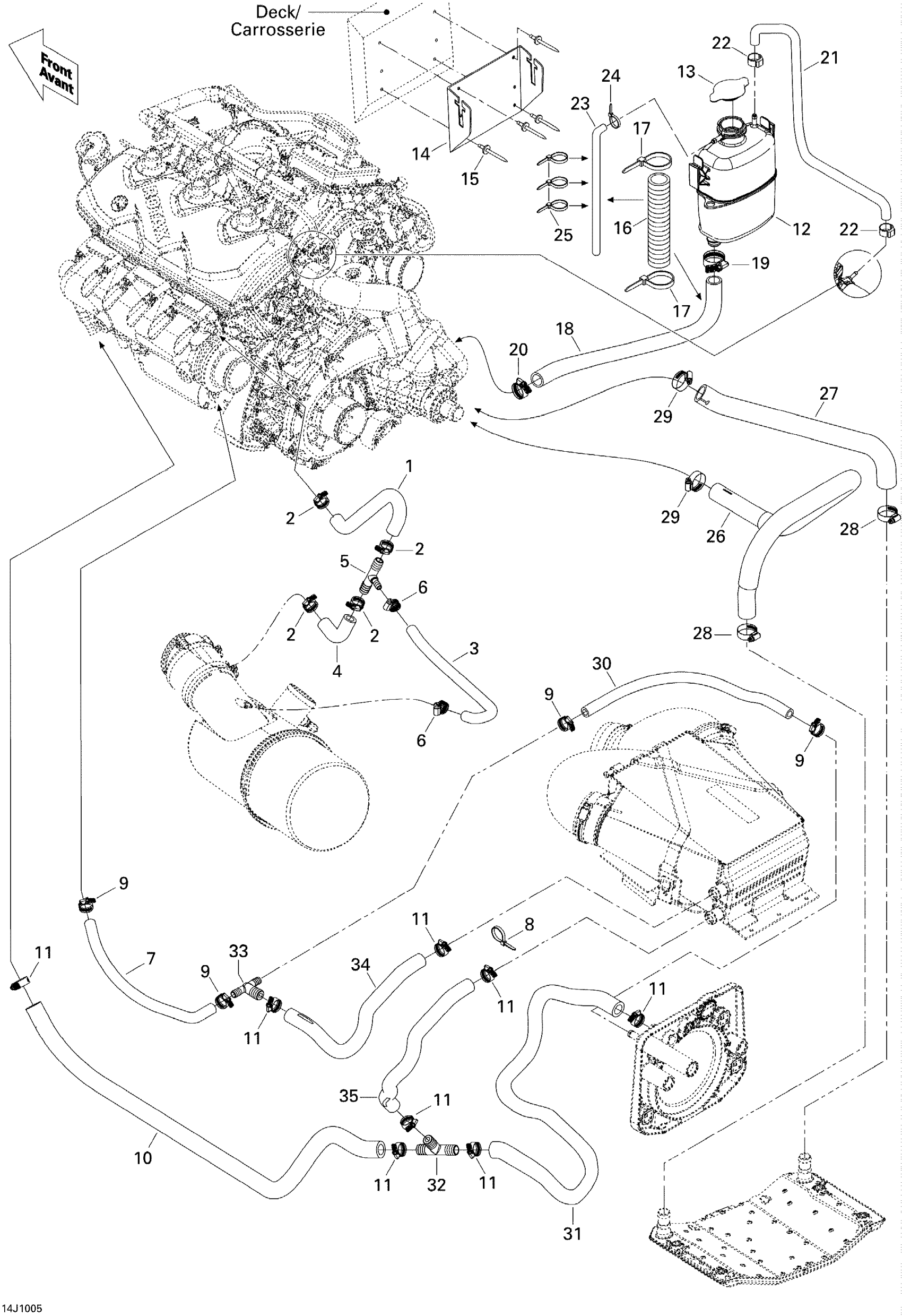

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000086

$109.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300211

Unavailable

15

Pop Rivet 3/16"

293150039

$1.49

16

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

17

Tie Wrap 142 mm

293750002

$1.25

18

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

19

Tridon Gear Clamp

293650051

$4.19

20

Tridon Gear Clamp

293650019

$5.82

21

Was 275500549 Hose 1/4"

219704357

$194.99

22

Oetiker Gear Clamp

293650025

$3.09

23

Polyurethane Hose 10000Mm Long

219704410

$56.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Tie Wrap 142 mm

293750002

$1.25

26

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

27

RH Radiator Hose

276000248

$58.99

28

Tridon Gear Clamp

293650045

$5.69

29

Tridon Gear Clamp

293650045

$5.69

30

Was 276000001 Hose 12.5 mm

219704394

$51.99

31

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

32

T-Fitting

293710131

$15.87

33

T-Fitting

293710132

$12.65

34

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

35

Hose 19.0Mm. 2000Mm Long

219704361

$48.99
