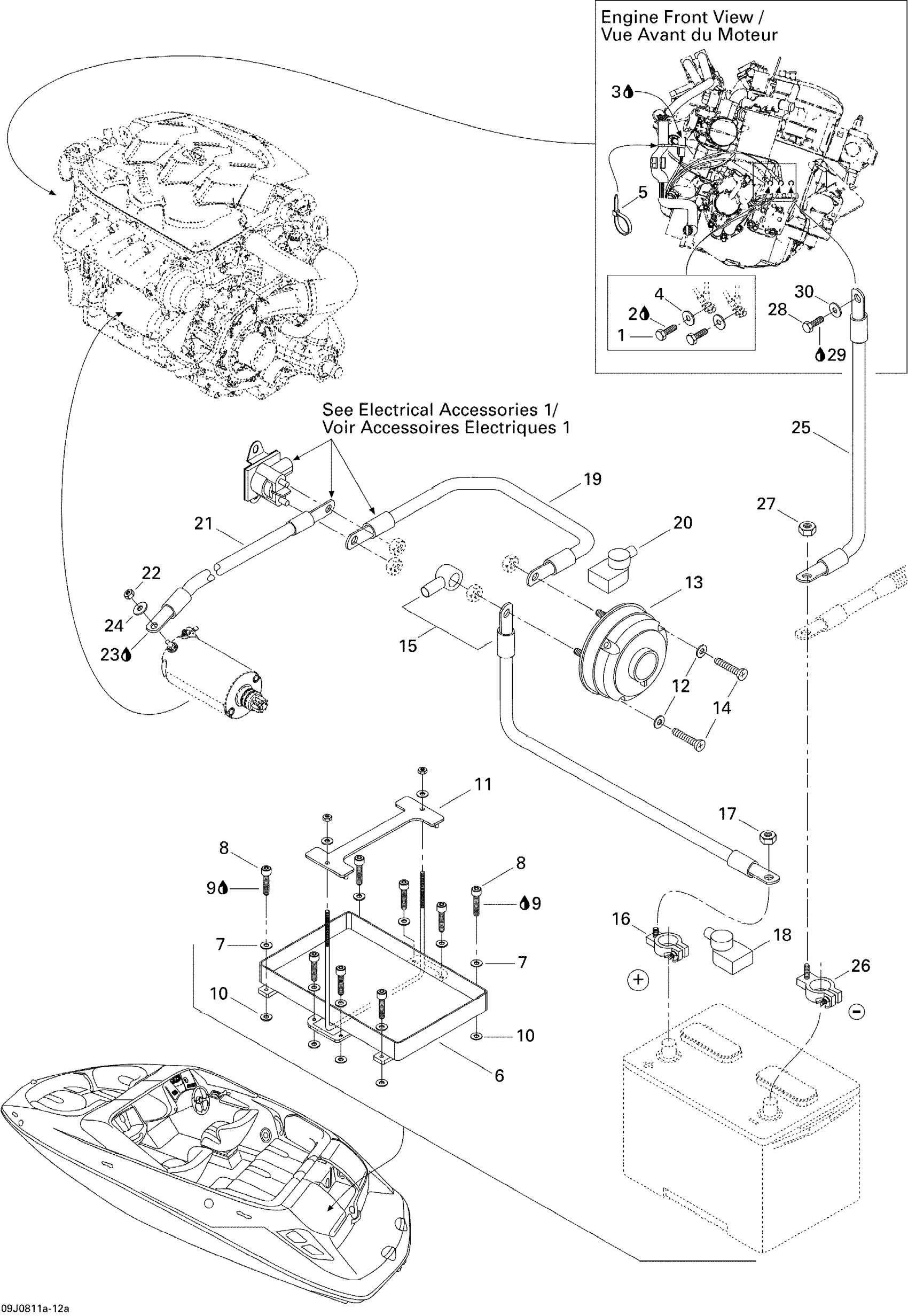

Sea-doo 180 Challenger SE 215, 2008 Electrical System Edition 1 Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Stainless Flat Washer M6

234061600

$0.33

5

Tie-Rap 180 mm

414115200

$0.11

6

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

7

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

8

Socket Head Screw M6 X 25

205062560

$1.69

9

Loctite 243, 10 ml

293800060

$21.49

10

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

11

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

12

Flat Washer M5, Stainless

234051600

$0.77

13

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

14

PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership

250000089

Unavailable

15

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

16

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

17

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

18

RED BOOT - Call your local BRP dealership

204470269

Unavailable

19

RED CABLE - Call your local BRP dealership

204470799

Unavailable

20

RED BOOT - Call your local BRP dealership

204470269

Unavailable

21

RED CABLE - Call your local BRP dealership

204470798

Unavailable

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Stainless Flat Washer M6

234061600

$0.33

25

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

26

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

27

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

28

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Flat Washer M6, Stainless

234062600

$0.77
