- 180 Challenger SE 215, 2008
10- Electrical Harness Edition 2

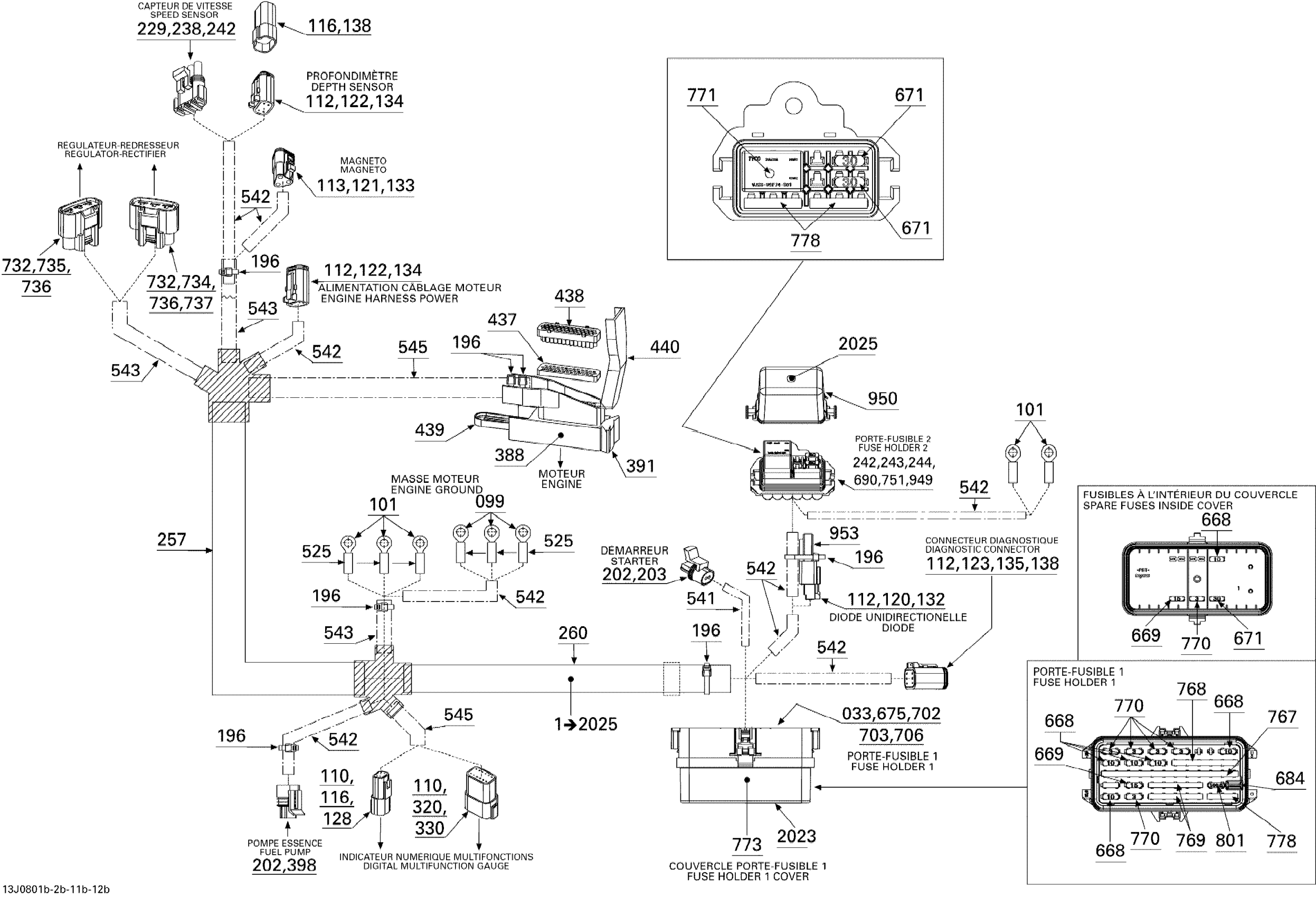

Sea-doo 180 Challenger SE 215, 2008 10- Electrical Harness Edition 2 Diagram
#
1
ENGINE WIRING HARNESS - Call your local BRP dealership
204471289
Unavailable
33
Wire Seal
278000999
$3.19
99
Open Barrel
278000992
$2.21
101
Open Barrel Terminal
278001392
$4.79
110
Male Terminal
278000631
$4.39
112
Female Terminal
278000632
$2.09
113
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
116
Female Housing, 4 Circuits
278000635
$16.49
120
Female Connector, 2 Circuits
409207300
$9.85
121
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
122
Male Connector, 4 Circuits | CE
278000739
$19.49
123
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
128
Female Wedge, 4 Circuits
278000636
$4.39
132
Male Lock, 2 Circuits
409207500
$3.19
133
Female Lock
409207200
$4.39
134
Male Lock, 4 Circuits | CE
278000738
$3.09
135
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
138
Sealing Cap
293000052
$3.19
196
Tie Wrap 142 mm
293750002
$1.25
202
Female Terminal
278001114
$3.19
203
Male Connector, 2 Circuits
278001113
$16.86
229
Female Terminal
278000223
$3.19
238
Male Housing, 3 Circuits
278000273
$9.59
242
Wire Seal
278000218
$4.39
243
Wire Seal
710000048
$7.69
244
Wire Seal
278000216
$3.19
257
Was 409901600 Tubing 19mm
219704398
$95.99
260
Was 515175319 Tubing 22 mm
219704423
$14.99
320
Male Connector, 12 Circuits
409015800
Unavailable
330
MALE LOCK, 12 CIRCUITS - Call your local BRP dealership
409015600
Unavailable
388
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
391
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
398
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
437
SEAL - Call your local BRP dealership
515175886
Unavailable
438
Latch
515175883
$9.12
439
LOCK - Call your local BRP dealership
515175884
Unavailable
440
COVER - Call your local BRP dealership
515175885
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
541
Tubing 6 Mm 3000Mm Long
219704425
$13.75
542
Was 409901700 Tubing (9 mm)
219704399
$84.99
543
Tubing 12 mm
409902000
Unavailable
545
Tubing 16 Mm 1000Mm Long
219704408
$7.49
668
Little Fuse, 10 Amperes
710000744
$8.79
669
Little Fuse, 15 Ampere
710000745
$8.49
671
Little Fuse, 30 Amperes
710000747
$8.49
675
Fuse Box Base Ass´y
415129856
$50.99
684
Fuse Puller
710000781
$8.09
690
Female Terminal
710000890
$4.55
702
Female Terminal
710000836
$5.61
703
Female Terminal
710000837
$5.39
706
Cap
710000840
$5.89
732
Female Terminal
710000877
$9.12
734
Female Housing, 3 Circuits
710000879
$25.99
735
Housing, 3 Circuits
710000880
$21.99
736
Seal
710000881
$17.99
737
Cap
710000882
$11.49
751
Female Terminal
710000918
$7.69
767
Bus Bar
278002165
$8.79
768
Bus Bar
278002165
$8.79
769
Bus Bar
278002165
$8.79
770
Little Fuse, 3 AMP
710001008
$3.79
771
Relay, 30 AMP | Obsolete. ATV order 515176774
278002168
Unavailable
773
Fuse Cover
710001026
$21.99
778
Bus Bar
278002165
$8.79
801
RESISTANCE 500 OHMS - Call your local BRP dealership
278002188
Unavailable
949
Fuse Box Ass'y
278002285
$28.49
950
Fuse Box Cover
278002286
$27.49
953
DIODE CAP - Call your local BRP dealership
278002306
Unavailable
2023
FUSE DECAL - Call your local BRP dealership
278002171
Unavailable
2025
FUSE DECAL - Call your local BRP dealership
278002192
Unavailable
