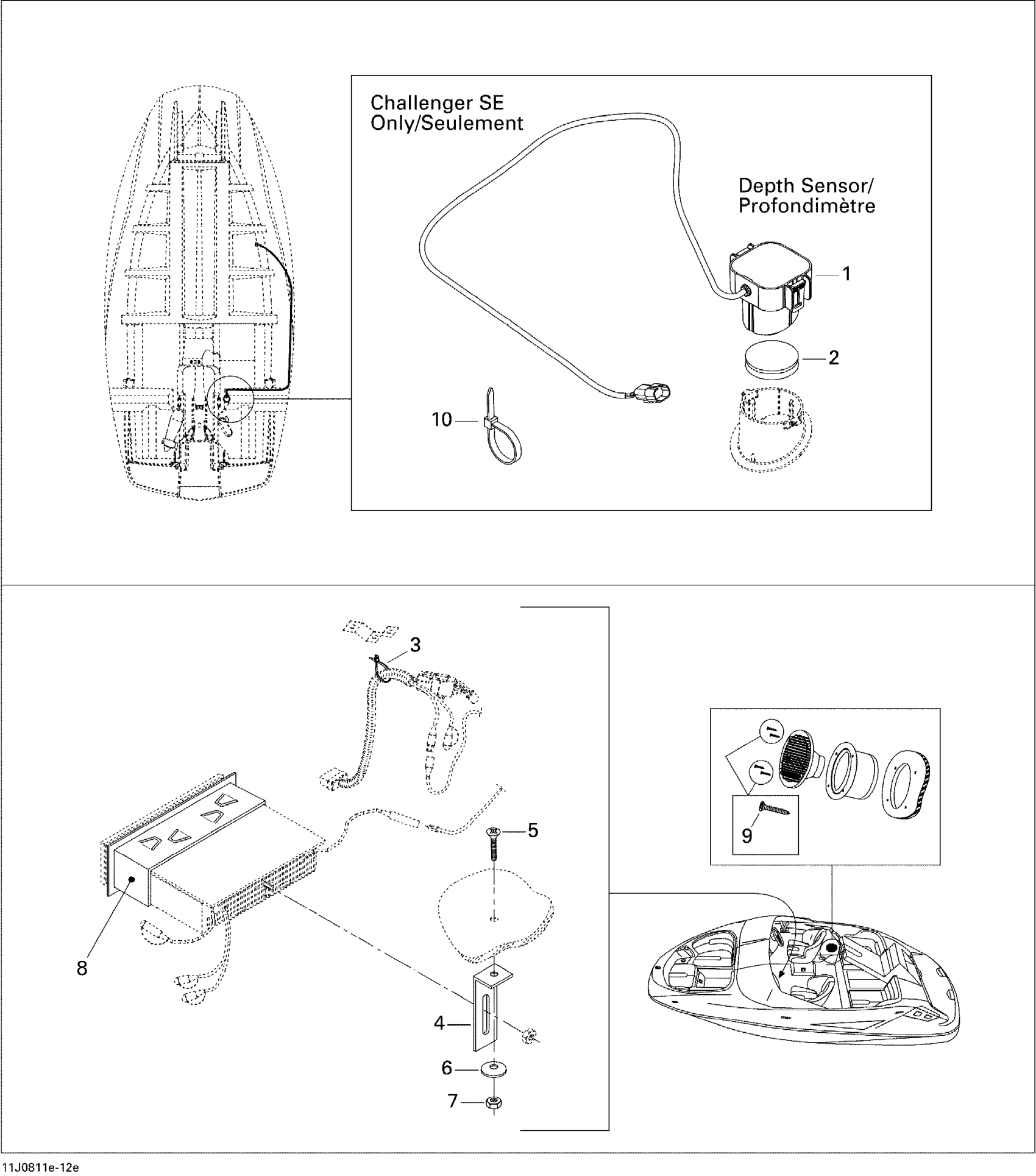

Sea-doo 180 Challenger SE 215, 2008 Electrical Accessories 5 Diagram

#

Description

Price

1

DEPTH SENSOR - Call your local BRP dealership

278001995

Unavailable

2

Gel Pad

293550042

$21.99

3

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

4

RADIO SUPPORT - Call your local BRP dealership

204470981

Unavailable

5

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

9

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

10

Tie Wrap 94 mm | 4X4

293750001

$1.03
