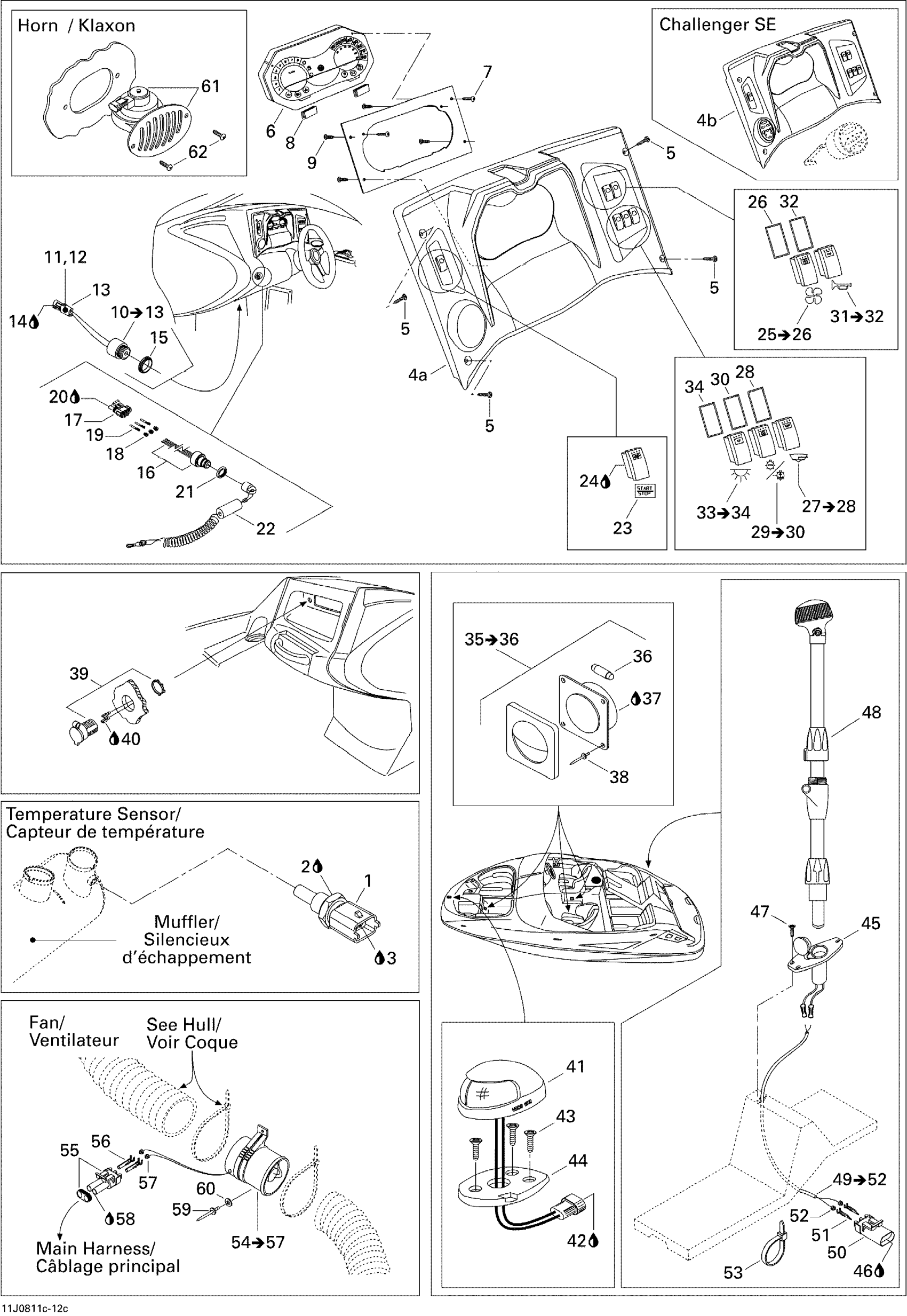

Sea-doo 180 Challenger SE 215, 2008 Electrical Accessories 3 Diagram

#

Description
Price

1

Temperature Sensor

278002895

$39.99

2

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4a

Not Available As Spare Parts

XXX

Unavailable

4b

FASCIA - Call your local BRP dealership

204471237

Unavailable

5

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

6

Cluster Gauge

204471378

$899.99

7

Hex. Flange Screw K40 X 25

241142560

$2.64

8

TRIM - Call your local BRP dealership

293830113

Unavailable

9

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

10

Buzzer Ass'y

204470913

$92.99

11

Male Terminal | XT Models

278000222

$3.19

12

Wire Seal

278000218

$4.39

13

Female Housing, 2 Circuits

278000217

$9.59

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

Buzzer Nut

278000707

Unavailable

16

Safety Switch This part replaces 278002325.

278002773

$114.99

17

Male Housing, 3 Circuits

278000273

$9.59

18

Wire Seal

278000218

$4.39

19

Female Terminal

278000223

$3.19

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Safety Nut (DESS Switch)

278002963

$3.28

22

Safety Lanyard

204471206

$56.99

23

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

26

Gasket

204470132

Unavailable

27

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

28

Gasket

204470132

Unavailable

29

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

30

Gasket

204470132

Unavailable

31

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

32

Gasket

204470132

Unavailable

33

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

34

Gasket

204470132

Unavailable

35

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

36

BULB - Call your local BRP dealership

204470081

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

39

DC Outlet

710001248

$37.99

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Front Lamp

204470372

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

44

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

45

REAR LIGHT BASE - Call your local BRP dealership

204470990

Unavailable

46

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

47

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

48

REAR LIGHT POLE - Call your local BRP dealership

204470979

Unavailable

49

REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42

204470980

Unavailable

50

Female Housing, 2 Circuits

278000217

$9.59

51

Male Terminal | XT Models

278000222

$3.19

52

Wire Seal

278000218

$4.39

53

Tie Wrap 142 mm

293750002

$1.25

54

Fan Ass'y | Includes 44 to 47

204470108

$144.99

55

Male Connector, 2 Circuits

278000220

$15.49

56

Female Terminal

278000223

$3.19

57

Wire Seal

278000218

$4.39

58

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

59

Pop Rivet 3/16"

293150008

$0.50

60

Flat Washer 5 mm, Stainless

234052600

$0.77

61

HORN - Call your local BRP dealership

204470801

Unavailable

62

Phillips Tapping Screw M4.2 X 32

209943260

$1.47
