- 180 Challenger SE 215, 2008
10- Electrical Accessories 2

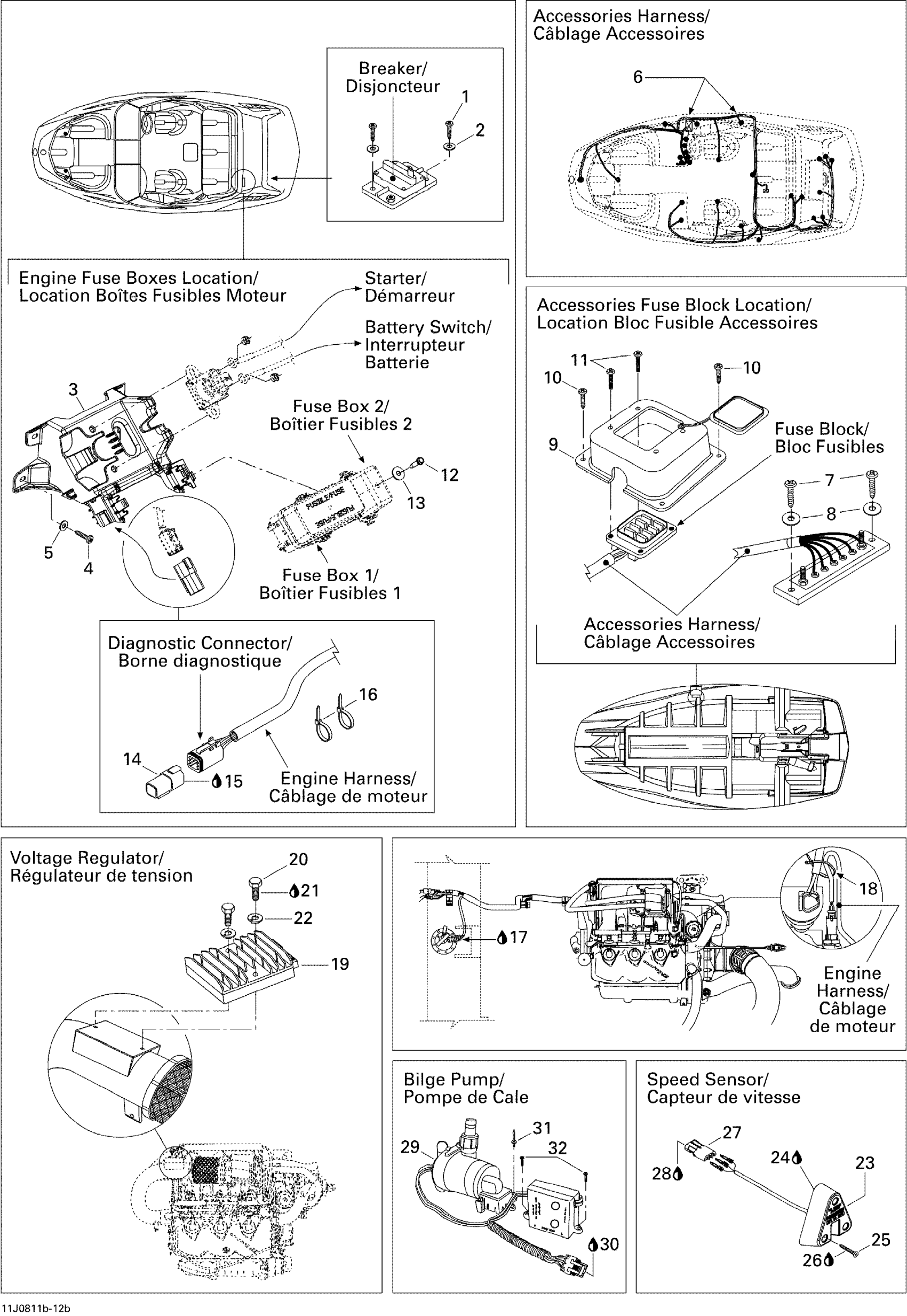

Sea-doo 180 Challenger SE 215, 2008 10- Electrical Accessories 2 Diagram
#
Description
Price
1
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
2
Flat Washer 4 mm, Stainless
234041600
$1.15
3
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
4
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Accessories Wiring Haness
204471288
Unavailable
7
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
8
Flat Washer 4 mm, Stainless
234041600
$1.15
9
FUSE BLOCK SUPPORT - Call your local BRP dealership
204471274
Unavailable
10
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
11
Pan Head Screw 10-32 X 1/2"
204100220
$2.51
12
Hex. Screw 10-14 X 7/8”
211000023
$3.59
13
Flat Washer 5 mm, Stainless
234052600
$0.77
14
Diagnostic Connector
278002704
$19.49
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
Tie-Rap 180 mm
414115200
$0.11
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
Tie Wrap 142 mm
293750002
$1.25
19
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
20
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Lock Washer 1/4”
211200025
$1.29
23
Speed Sensor
278001993
$169.99
24
Silicone Sealant 51388, 300 ml
296000309
$36.99
25
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
26
Silicone Sealant 51388, 300 ml
296000309
$36.99
27
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
28
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
29
BILGE PUMP - Call your local BRP dealership
204471078
Unavailable
30
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
31
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
32
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
