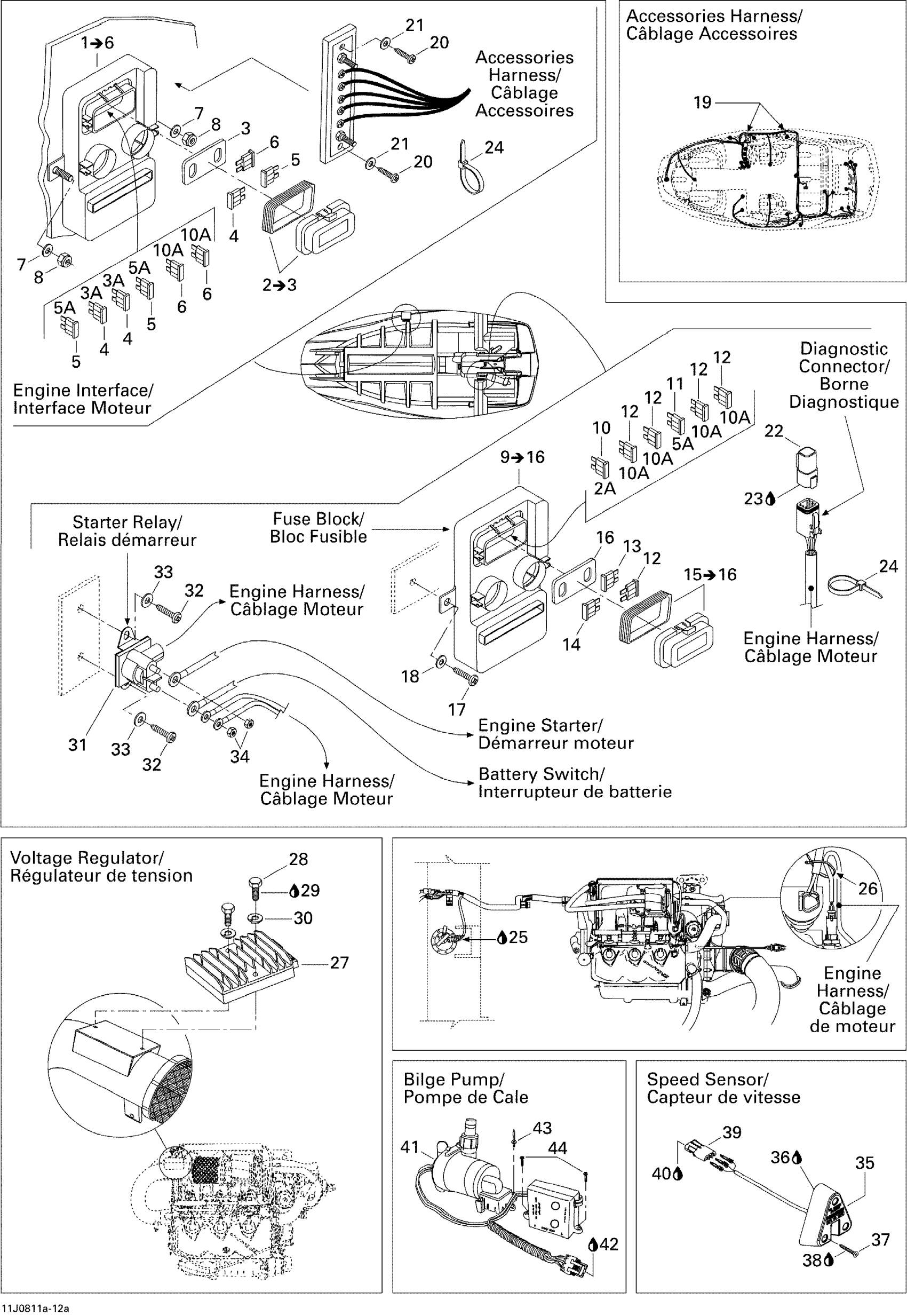

Sea-doo 180 Challenger SE 215, 2008 Electrical Accessories 1 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204471264

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.12

6

Fuse, 10 Amperes | North America

278001197

$1.79

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Flat Washer M6, Stainless

234062600

$0.64

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

11

Fuse, 5 Amperes | CE

278000344

$3.12

12

Fuse, 10 Amperes | North America

278001197

$1.79

13

Fuse, 20 Amperes

409003900

$3.12

14

Fuse, 30 Amperes

410917200

$3.12

15

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

16

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

17

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

18

Flat Washer M6, Stainless

234062600

$0.64

19

Accessories Wiring Haness

204471232

Unavailable

20

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

21

Flat Washer 4 mm, Stainless

234041600

$0.91

22

Diagnostic Connector

278002704

$15.57

23

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

24

Tie-Rap 180 mm

414115200

$0.09

25

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

26

Tie Wrap 142 mm

293750002

$0.88

27

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

28

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

29

Loctite 243, 10 ml

293800060

$20.77

30

Lock Washer 1/4”

211200025

$1.04

31

Starter Relay

278003012

$35.07

32

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

33

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$0.92

35

Speed Sensor

278001993

$143.62

36

Silicone Sealant 51388, 300 ml

296000309

$35.72

37

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

38

Silicone Sealant 51388, 300 ml

296000309

$35.72

39

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

40

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

41

BILGE PUMP - Call your local BRP dealership

204471078

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

43

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

44

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable
