- 180 Challenger SE 215, 2008
09- Tower And Bimini Top

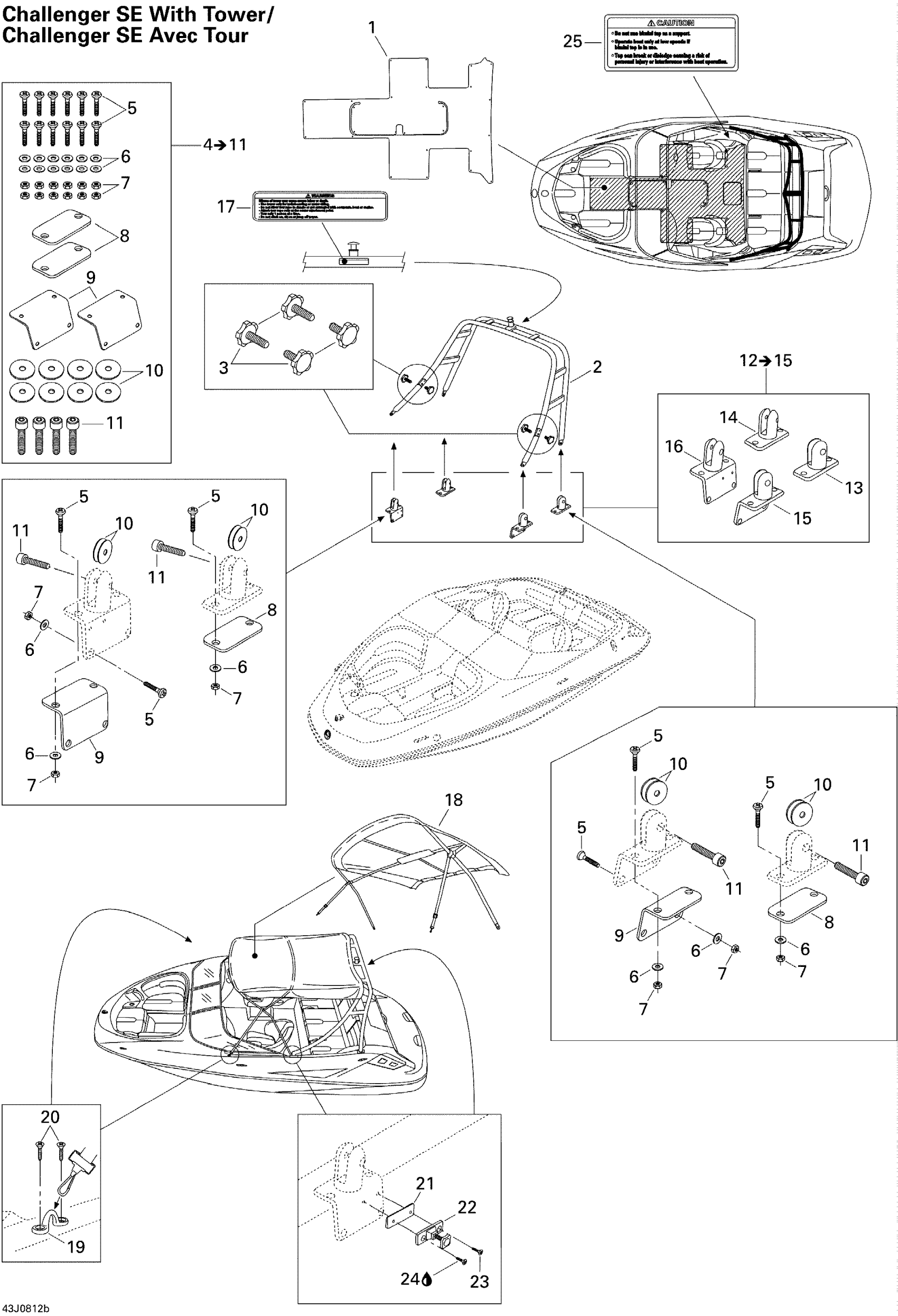

Sea-doo 180 Challenger SE 215, 2008 09- Tower And Bimini Top Diagram
#
Description
Price
1
Cockpit Carpet
204072382
Unavailable
2
Tower
204072261
Unavailable
3
Soft Touch Knob
204072011
Unavailable
4
TOWER HARDWARE KIT - Call your local BRP dealership | Includes 4 to 11
204072257
Unavailable
5
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership
204100151
Unavailable
6
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
7
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
8
REAR GASKET - Call your local BRP dealership
204130107
Unavailable
9
FRONT GASKET - Call your local BRP dealership
204130108
Unavailable
10
Washer, Nylon
204100158
Unavailable
11
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
12
TOWER MOUNTING KIT - Call your local BRP dealership | Includes 12 to 16
204072258
Unavailable
13
REAR TOWER SUPPORT, PORT SIDE - Call your local BRP dealership
204072251
Unavailable
14
REAR TOWER SUPPORT, STARBOARD - Call your local BRP dealership
204072252
Unavailable
15
Front Tower Support, Port Side
204072253
Unavailable
16
Front Tower Support, Starboard
204072259
Unavailable
17
WARNING DECAL, TOWER - Call your local BRP dealership
204901340
Unavailable
18
Bimini Top Ass'y
204950055
Unavailable
19
STRAP EYE - Call your local BRP dealership
204071845
Unavailable
20
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
21
BIMINI MOUNT SPACER - Call your local BRP dealership
204072263
Unavailable
22
BIMINI MOUNT - Call your local BRP dealership
204072264
Unavailable
23
FLAT PHILLIPS SCREW M5 X 1 - Call your local BRP dealership
208451660
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
