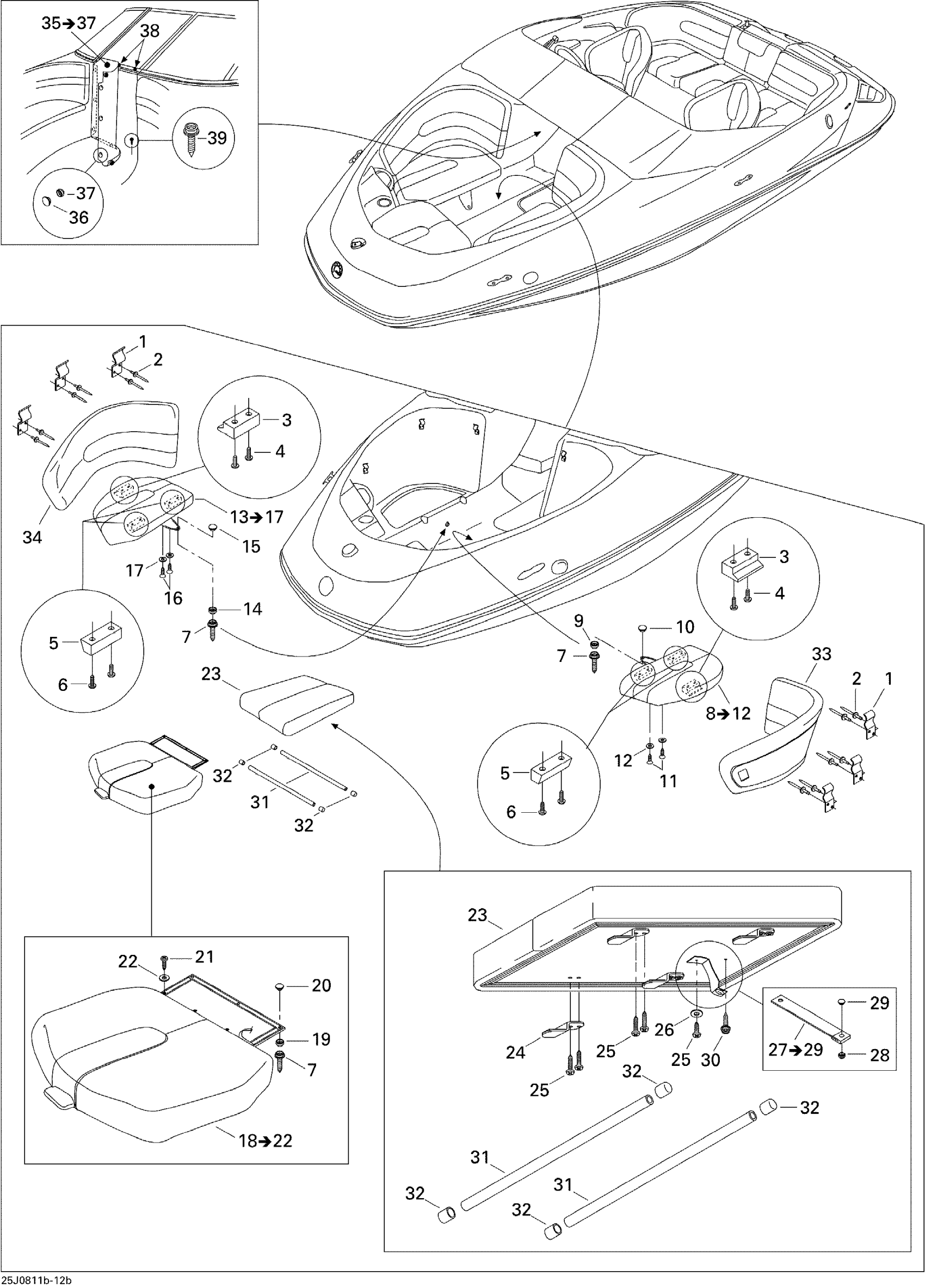

Sea-doo 180 Challenger SE 215, 2008 09- Seat, Front View Diagram

#

Description
Price

1

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

2

Pop Rivet 3/16"

293150043

$2.09

3

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

4

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

5

LATCH - Call your local BRP dealership

204611805

Unavailable

6

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

7

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

8

Front Seat Ass'y, Port Side | Includes 8 to 12

204614036

Unavailable

9

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

10

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

11

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

12

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

13

FRONT SEAT ASS'Y, STARBOARD - Call your local BRP dealership | Includes 13 to 17

204614042

Unavailable

14

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

15

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

16

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

17

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

18

Front Center Seat Ass'y | Includes 18 to 22

204614034

Unavailable

19

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

20

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

21

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

22

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

23

Seat Ass'y, Bow (Grey)

204613121

Unavailable

24

BRACKET - Call your local BRP dealership | Except STD

204613161

Unavailable

25

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

26

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

27

Retaining Strap Ass'y | Includes 27 to 29

204613173

Unavailable

28

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

29

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

30

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

31

TUBE, STAINLESS - Call your local BRP dealership | Except STD

204613164

Unavailable

32

TUBE CAP - Call your local BRP dealership | Except STD

204613165

Unavailable

33

Backrest Ass'y, Port Side

204614038

Unavailable

34

Backrest Ass'y, Starboard

204614040

Unavailable

35

Walk-thru Curtain | Includes 35 to 37

204613514

Unavailable

36

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

37

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

38

SNAP - Call your local BRP dealership

204613741

Unavailable

39

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable
