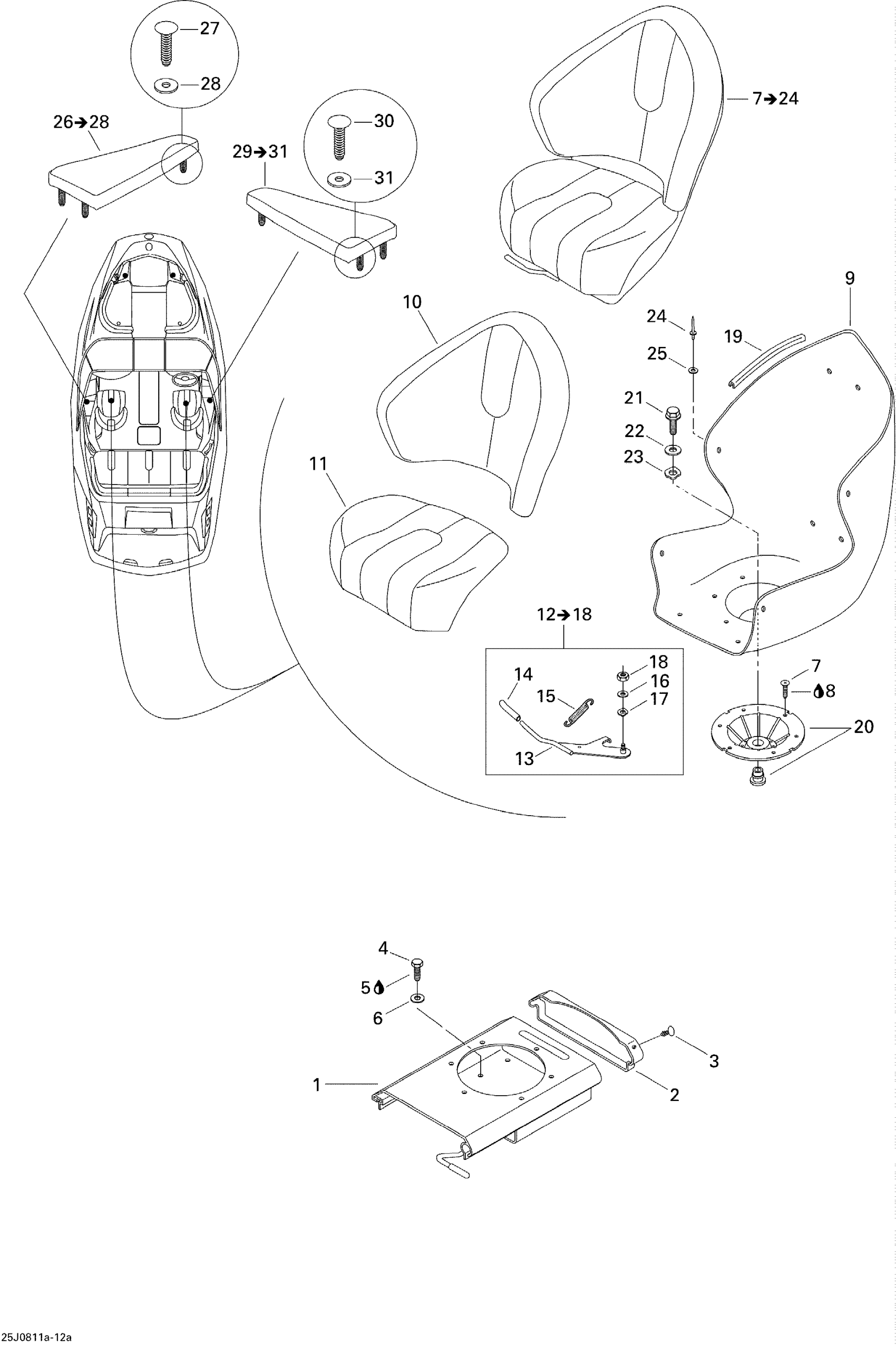

Sea-doo 180 Challenger SE 215, 2008 09- Seat Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Rear Protector
204610376
Unavailable
3
Black, Dart
293730006
$0.99
4
Hex. Screw M6 X 35
207163560
$1.49
5
Loctite 243, 10 ml
293800060
$21.49
6
Flat Washer M6, Stainless
234062600
$0.77
7
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
8
Loctite 243, 10 ml
293800060
$21.49
9
Seat Base
204611146
Unavailable
10
Backrest Cushion
204614061
Unavailable
11
SEAT CUSHION - Call your local BRP dealership
204614063
Unavailable
12
Lever Arm Ass’y
204610523
Unavailable
13
Lever Arm
204610524
Unavailable
14
Handle
204610348
Unavailable
15
SPRING - Call your local BRP dealership
204610349
Unavailable
16
Stainless Flat Washer M6
234061600
$0.33
17
Washer
211200059
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
20
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
21
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
22
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
23
WASHER - Call your local BRP dealership
293200056
Unavailable
24
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
25
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
26
Elbow Rest Ass'y, Port Side | Includes 26 to 28
204614056
Unavailable
27
Black Dart
293730014
$0.99
28
Flat Washer M6, Stainless
234062600
$0.77
29
Elbow Rest Ass'y, Starboard | Includes 29 to 31
204614058
Unavailable
30
Black, Dart
293730006
$0.99
31
Flat Washer M6, Stainless
234062600
$0.77
