Description

Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Instant Gasket

219701421

$51.99

3

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

4

Silicone Sealant 51388, 300 ml

296000309

$36.99

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Shim 0.3 mm

272000053

$11.49

8

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

9

Flat Washer

211200051

$1.68

10

Reducer This part replaces 291001887.

291004649

$17.49

11

Riding Plate Ass'y | Includes 10 to 12

271001649

$275.49

12

Socket Drain Plug M6 X 12

250500005

$16.49

13

Was 293800013 Loctite 56765

219704454

$65.99

14

Straight Plastic Fitting

293710111

$8.47

15

O-Ring

293300121

$8.32

16

Hex. Screw M8 X 40

207084060

$2.22

17

Loctite 243, 10 ml

293800060

$21.49

18

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Hex. Elastic Nut M8

232581600

$1.48

20

Stainless, Flat Washer 8 mm

234081600

$0.55

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

Anode Zinc

271001813

$18.99

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Pump Grate

204120294

Unavailable

26

Instant Gasket

219701421

$51.99

27

Hex. Screw M6 X 16

207161660

$1.59

28

Loctite 271, 10 ml

293800005

$26.99

29

Stainless Flat Washer M6

234061600

$0.33

30

Hex. Screw M8 X 40

207184060

$2.22

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Hex. Elastic Nut M8

232581600

$1.48

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

Drive Shaft

204120309

$476.99

36

Drive Shaft Plug

272000173

$8.68

37

Norma Clamp

293650077

$7.41

38

Bellows

272000183

$28.99

39

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

40

O-Ring

293300044

$1.05

41

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

42

C-Clip

271001575

$6.11

43

SHAFT GUARD - Call your local BRP dealership

204120338

Unavailable

44

Instant Gasket

219701421

$51.99

45

Phillips Screw M5 X 35

208653560

$2.22

46

Flat Washer M5, Stainless

234051600

$0.77

47

Hex. Elastic Nut M5 | X

232551600

$1.15

48

Silicone Sealant 51388, 300 ml

296000309

$36.99

49

Flat Washer 5 mm, Stainless

234052600

$0.77

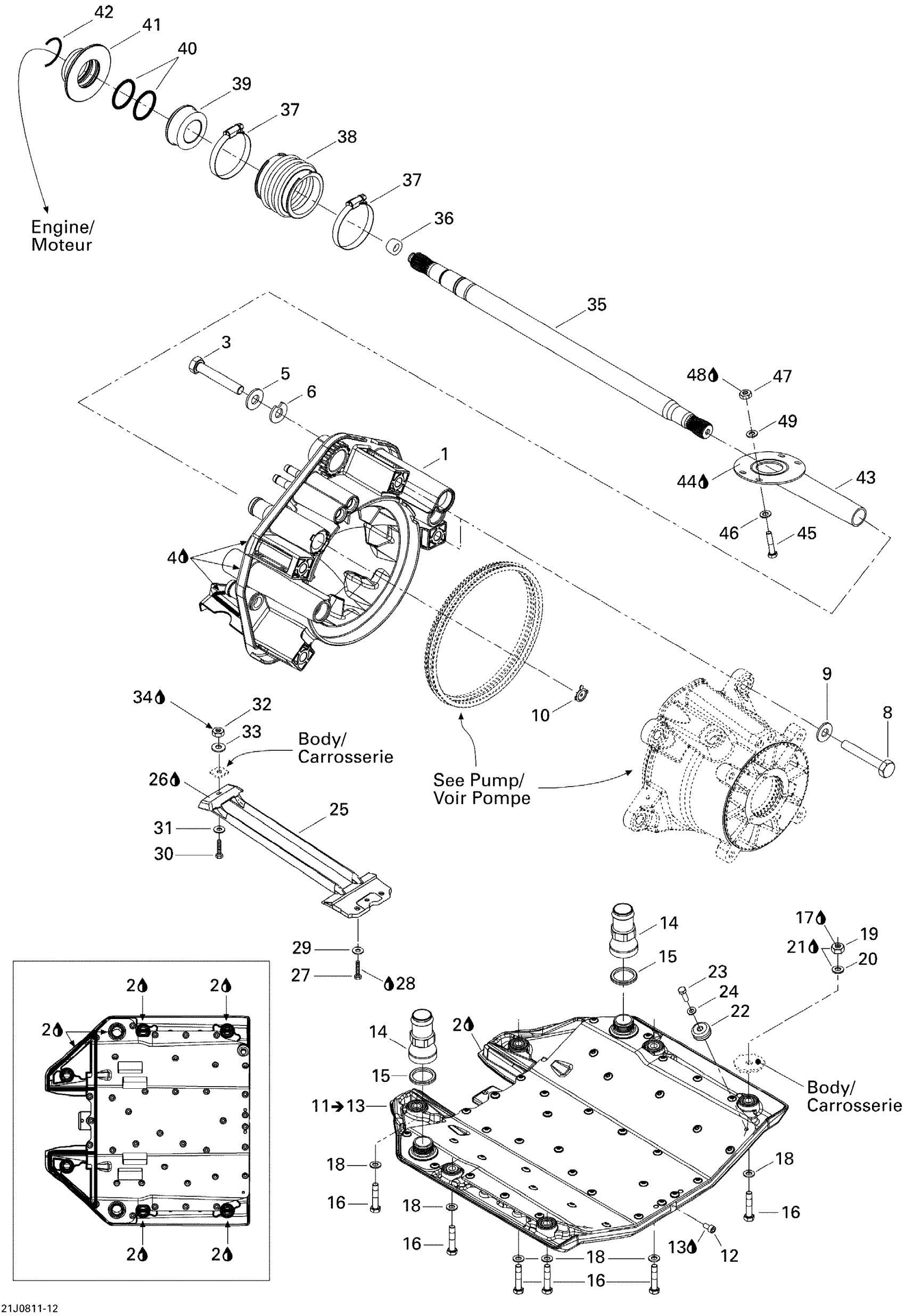

Sea-doo 180 Challenger SE 215, 2008 05- Propulsion Diagram

PUMP SUPPORT - Call your local BRP dealership

Instant Gasket

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

Silicone Sealant 51388, 300 ml

Flat Washer 10 mm, Stainless

Shim 0.3 mm

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

Flat Washer

Reducer This part replaces 291001887.

Riding Plate Ass'y | Includes 10 to 12

Socket Drain Plug M6 X 12

Was 293800013 Loctite 56765

Straight Plastic Fitting

O-Ring

Hex. Screw M8 X 40

Loctite 243, 10 ml

Flat Washer 8 mm, Stainless

Hex. Elastic Nut M8

Stainless, Flat Washer 8 mm

Silicone Sealant 51388, 300 ml

Anode Zinc

Hex. Screw M6 X 20, Scotch Grip

Stainless Flat Washer M6

Pump Grate

Instant Gasket

Hex. Screw M6 X 16

Loctite 271, 10 ml

Stainless Flat Washer M6

Hex. Screw M8 X 40

Stainless, Flat Washer 8 mm

Hex. Elastic Nut M8

Stainless, Flat Washer 8 mm

Silicone Sealant 51388, 300 ml

Drive Shaft

Drive Shaft Plug

Norma Clamp

Bellows

Carbon Ring Kit This part replaces 272000177.

O-Ring

Carbon Ring Kit This part replaces 272000177.

C-Clip

SHAFT GUARD - Call your local BRP dealership

Instant Gasket

Phillips Screw M5 X 35

Flat Washer M5, Stainless

Hex. Elastic Nut M5 | X

Silicone Sealant 51388, 300 ml

Flat Washer 5 mm, Stainless
