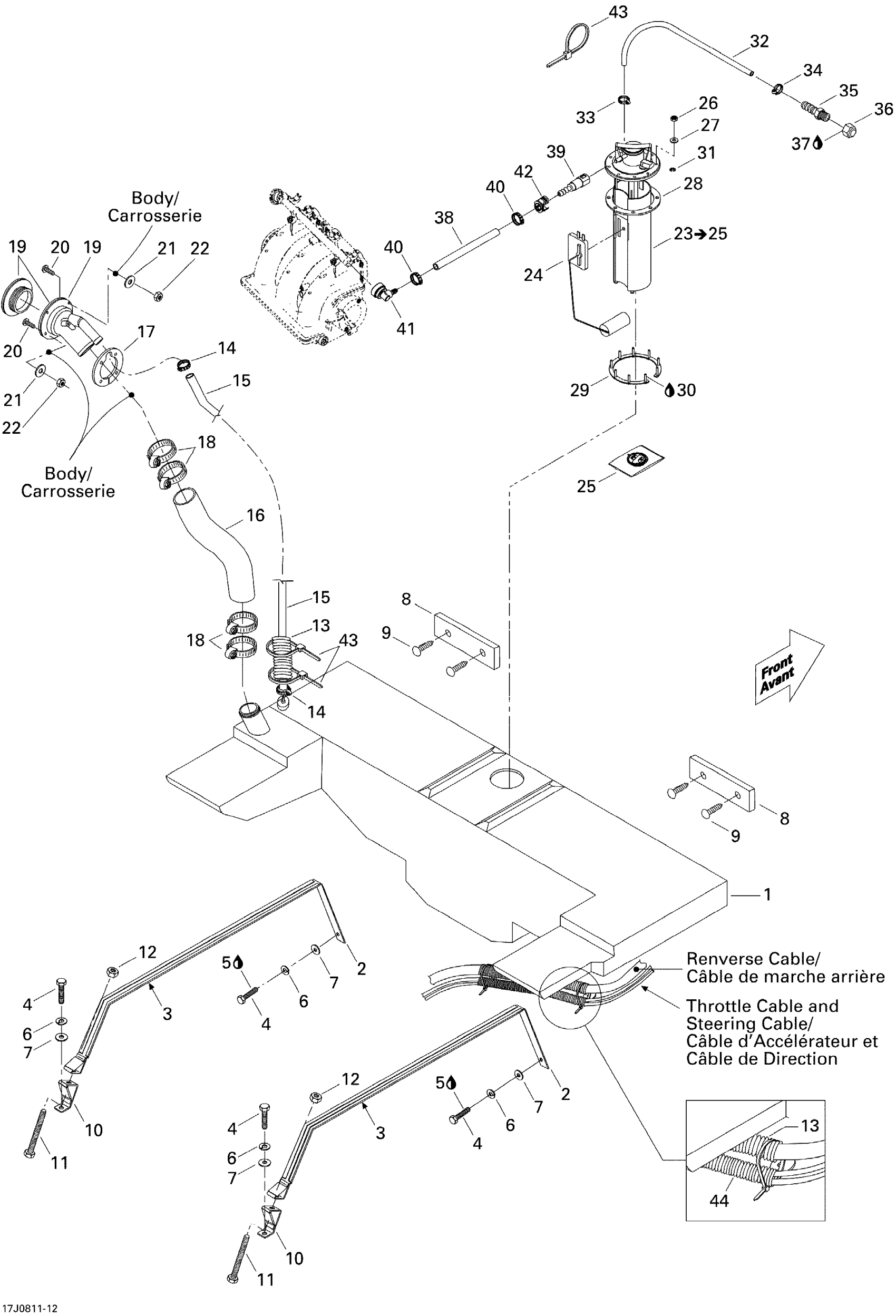

Sea-doo 180 Challenger SE 215, 2008 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

204560389

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Loctite 271, 10 ml

293800005

$26.99

6

Lock Washer 8 mm, Stainless

234181601

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

9

Black, Dart

293730006

$0.99

10

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

11

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

12

Hex. Elastic Nut M8

232581600

$1.48

13

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

14

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

FILLER NECK HOSE - Call your local BRP dealership

204560377

Unavailable

17

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

18

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

19

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

20

Phillips Screw M4 X 35

208643560

Unavailable

21

Flat Washer 4 mm

234040600

$0.55

22

Elastic Stop Nut M4

232541600

$1.15

23

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

24

Sensor Level

270600012

Unavailable

25

Fuel Filter, Bosch

219700368

$39.99

26

Elastic Stop Nut 5 mm

232551200

$1.47

27

Flat Washer 5 mm, Stainless

234052400

$2.85

28

Gasket

293250088

$14.99

29

C-Ring, 9 Studs

275500679

$77.49

30

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

31

Circlip 5 mm

293370002

$5.50

32

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

33

Tridon Gear Clamp

293650170

$1.99

34

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

35

COUPLER - Call your local BRP dealership

204560265

Unavailable

36

Pipe Cap

204560263

Unavailable

37

Was 293800013 Loctite 56765

219704454

$65.99

38

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

39

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

40

Torro Hose Clamp

204130212

Unavailable

41

Elbow Fitting 90°

293710105

$14.22

42

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

43

Tie Wrap 142 mm

293750002

$1.25

44

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable
