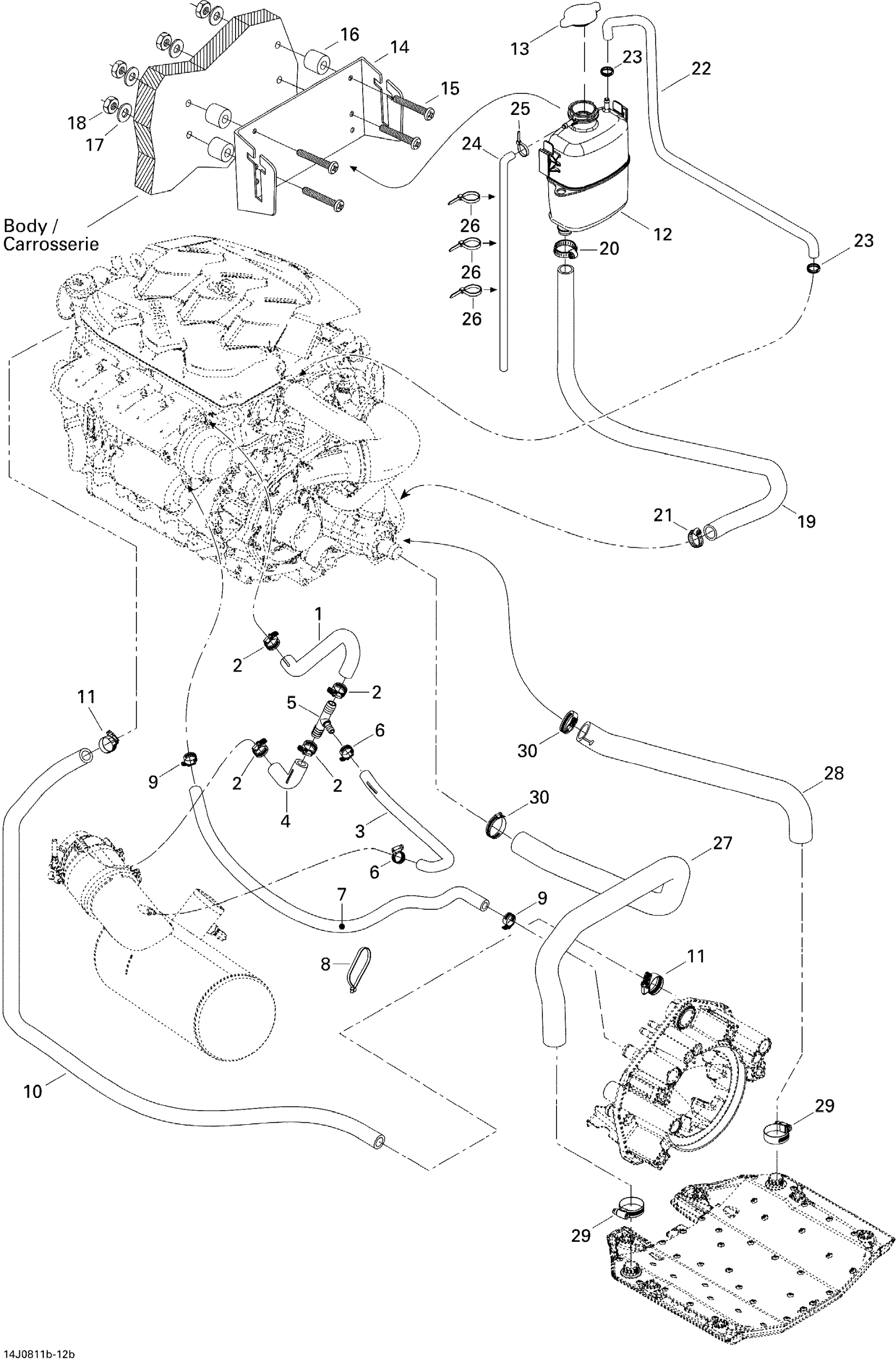

Sea-doo 180 Challenger SE 215, 2008 Cooling System Edition 2 Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000086

$109.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300211

Unavailable

15

Phillips Screw M5 X 35

208653560

$2.22

16

BUSHING - Call your local BRP dealership

204300166

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

$0.77

18

Hex. Elastic Nut M5 | X

232551600

$1.15

19

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

20

Tridon Gear Clamp

293650051

$4.19

21

Tridon Gear Clamp

293650019

$5.82

22

Was 275500549 Hose 1/4"

219704357

$194.99

23

Oetiker Gear Clamp

293650025

$3.09

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

27

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

28

RH Radiator Hose

276000248

$58.99

29

Tridon Gear Clamp

293650045

$5.69

30

Tridon Gear Clamp

293650045

$5.69
