01- Cooling System Edition 1

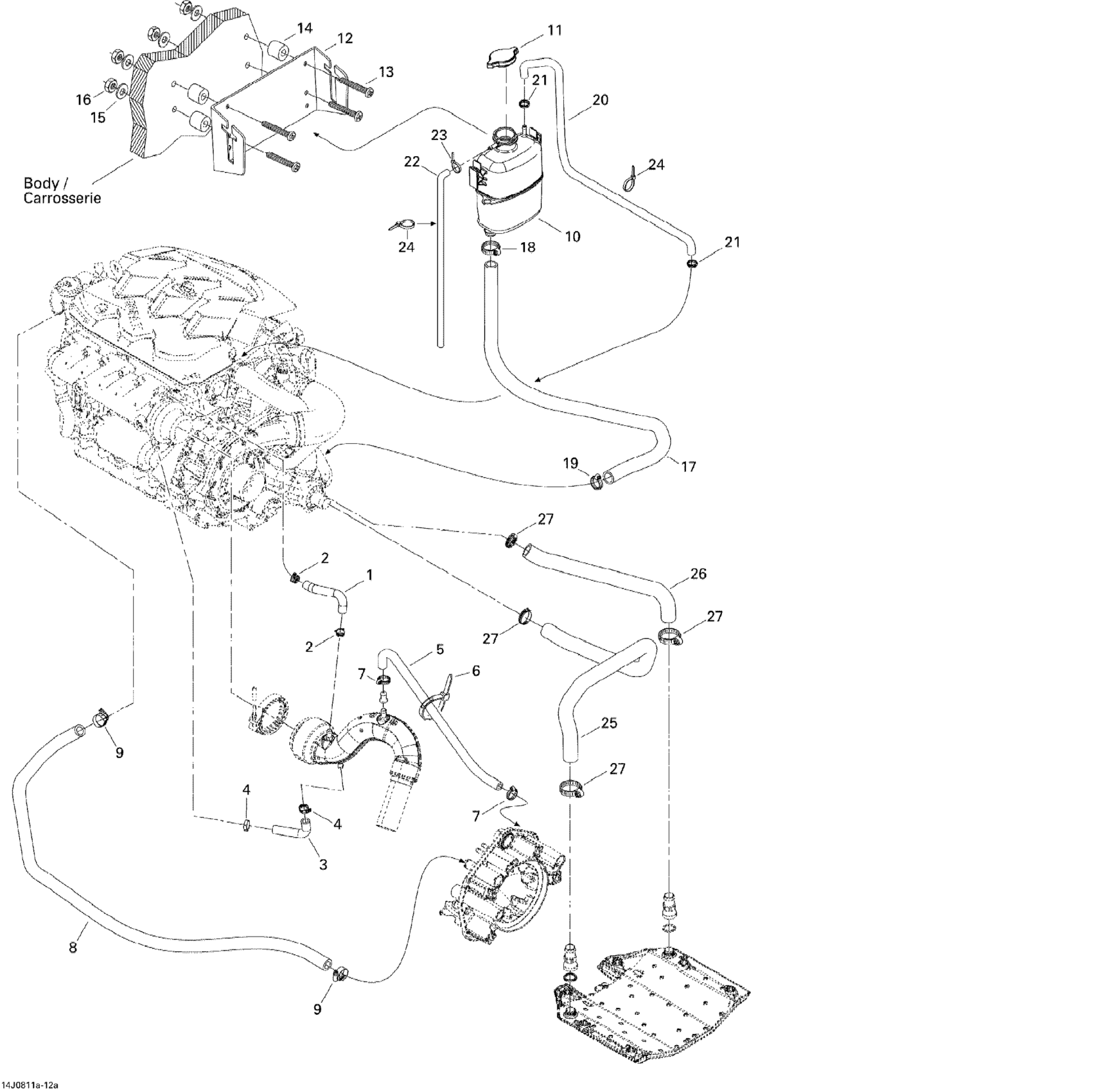

Sea-doo 180 Challenger SE 215, 2008 01- Cooling System Edition 1 Diagram
#
Description
Price
1
Formed Hose
276000155
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
Lower Formed Hose
276000104
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
Pressure Cap | Includes 720 to 720a
276000100
$25.99
12
COOLANT TANK BRACKET - Call your local BRP dealership
204300211
Unavailable
13
Phillips Screw M5 X 35
208653560
$2.22
14
BUSHING - Call your local BRP dealership
204300166
Unavailable
15
Flat Washer 5 mm, Stainless
234052600
$0.77
16
Hex. Elastic Nut M5 | X
232551600
$1.15
17
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
18
Tridon Gear Clamp
293650051
$4.19
19
Tridon Gear Clamp
293650019
$5.82
20
Was 275500549 Hose 1/4"
219704357
$194.99
21
Oetiker Gear Clamp
293650025
$3.09
22
Polyurethane Hose 10000Mm Long
219704410
$56.99
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
Tie Wrap 142 mm
293750002
$1.25
25
LH RADIATOR HOSE - Call your local BRP dealership
276000250
Unavailable
26
RH Radiator Hose
276000248
$58.99
27
Tridon Gear Clamp
293650045
$5.69
