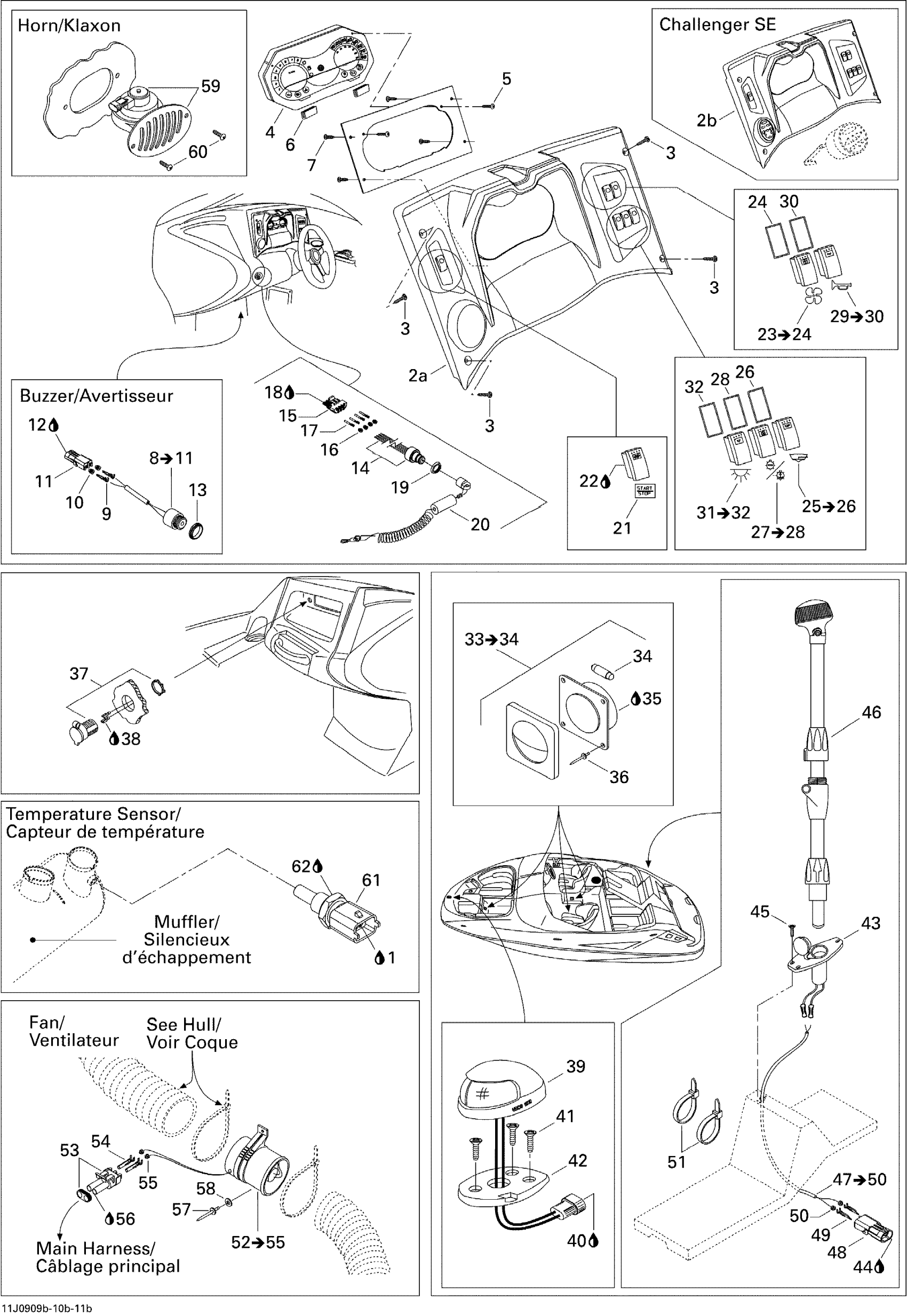

Sea-doo 180 Challenger SE, 1 x 255 HO, 2009 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2a

Not Available As Spare Parts

XXX

Unavailable

2b

FASCIA - Call your local BRP dealership

204471321

Unavailable

3

PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership

204100234

Unavailable

4

Cluster Gauge

204471378

$849.20

5

Hex. Flange Screw K40 X 16

241141660

$1.25

6

TRIM - Call your local BRP dealership

293830113

Unavailable

7

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

8

Buzzer Ass'y

204470913

$87.66

9

Male Terminal | XT Models

278000222

$2.55

10

Wire Seal

278000218

$3.48

11

Female Housing, 2 Circuits

278000217

$7.59

12

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

13

Buzzer Nut

278000707

Unavailable

14

Safety Switch

278002351

$89.67

15

Male Housing, 4 Circuits

278000395

$15.02

16

Wire Seal

278000218

$3.48

17

Female Terminal

278000223

$2.55

18

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

19

Safety Nut (DESS Switch)

278002963

$2.72

20

Safety Lanyard

204471206

$68.87

21

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

23

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

24

Gasket

204470132

Unavailable

25

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

26

Gasket

204470132

Unavailable

27

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

28

Gasket

204470132

Unavailable

29

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$46.12

30

Gasket

204470132

Unavailable

31

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

32

Gasket

204470132

Unavailable

33

Courtesy Light Ass'y | Includes 29 to 30

204470026

$46.12

34

BULB - Call your local BRP dealership

204470081

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

36

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

37

DC Outlet

710001248

$31.17

38

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

39

Front Lamp

204470372

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

41

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

42

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

43

REAR LIGHT BASE - Call your local BRP dealership

204470990

Unavailable

44

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

45

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

46

REAR LIGHT POLE - Call your local BRP dealership

204470979

Unavailable

47

REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42

204470980

Unavailable

48

Female Housing, 2 Circuits

278000217

$7.59

49

Male Terminal | XT Models

278000222

$2.55

50

Wire Seal

278000218

$3.48

51

Tie Wrap 142 mm

293750002

$0.88

52

Fan Ass'y | Includes 44 to 47

204470108

$114.37

53

Male Connector, 2 Circuits

278000220

$11.02

54

Female Terminal

278000223

$2.55

55

Wire Seal

278000218

$3.48

56

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

57

Pop Rivet 3/16"

293150088

$0.91

58

Flat Washer 5 mm, Stainless

234052600

$0.64

59

HORN - Call your local BRP dealership

204470801

Unavailable

60

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

61

Temperature Sensor

278002895

$31.82

62

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
