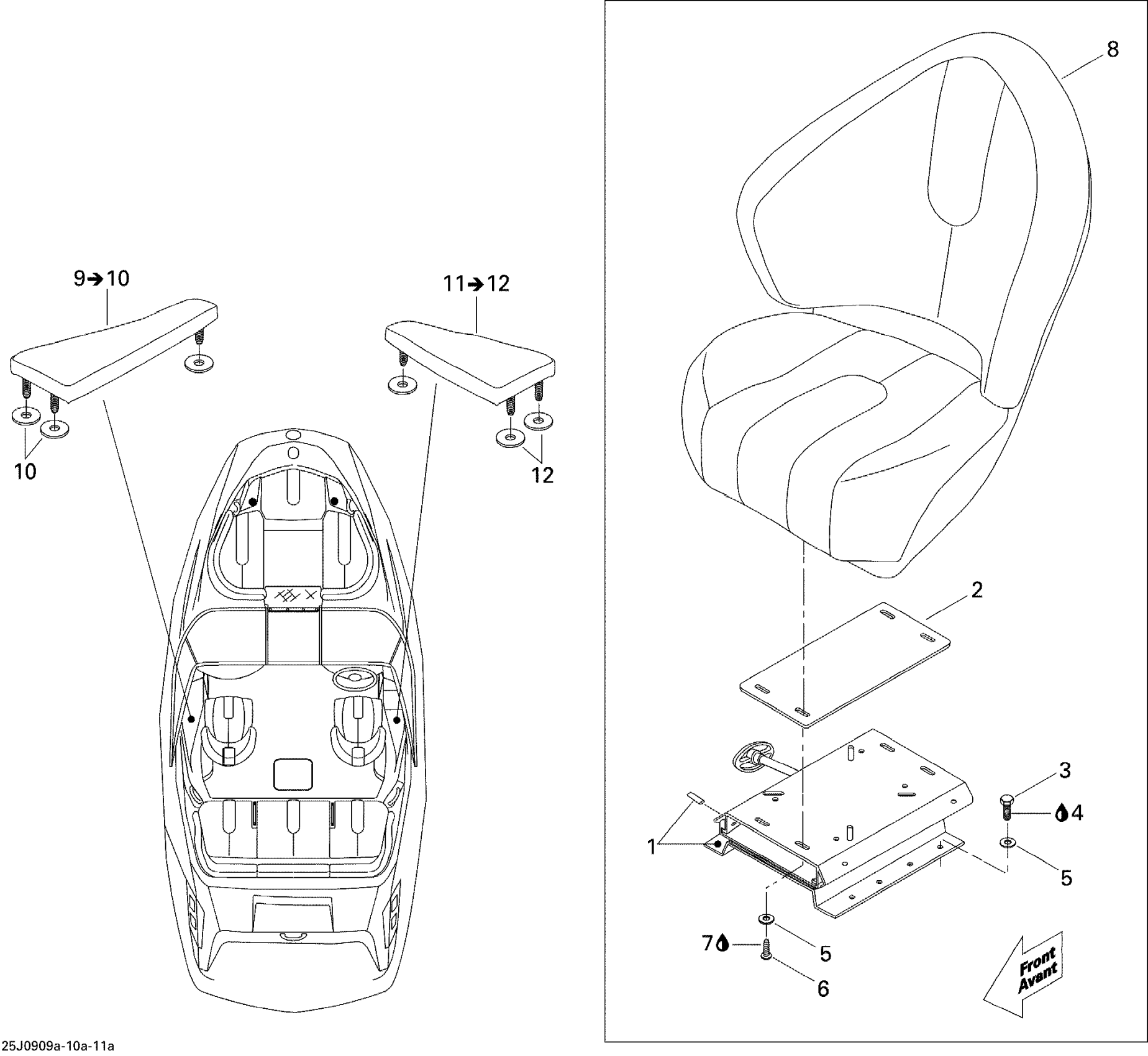

Sea-doo 180 Challenger SE, 1 x 255 HO, 2009 09- Seat , Driver, Passenger Diagram

#

Description

Price

1

SEAT BASE, PORT SIDE - Call your local BRP dealership

204614717

Unavailable

1

SEAT BASE, STARBOARD - Call your local BRP dealership

204614718

Unavailable

2

SEAT BASE SHIM - Call your local BRP dealership

204614821

Unavailable

3

Hex. Screw M6 X 35

207163560

$1.49

4

Loctite 243, 10 ml

293800060

$21.49

5

Flat Washer M6, Stainless

234062600

$0.77

6

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Driver, Passenger, Seat Ass'y

204614719

Unavailable

9

Elbowrest Ass'y, Port Side | Includes 9 to 10

204614655

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.77

11

ELBOWREST ASS'Y, STARBOARD - Call your local BRP dealership | Includes 11 to 12

204614658

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77
