02- Supercharger

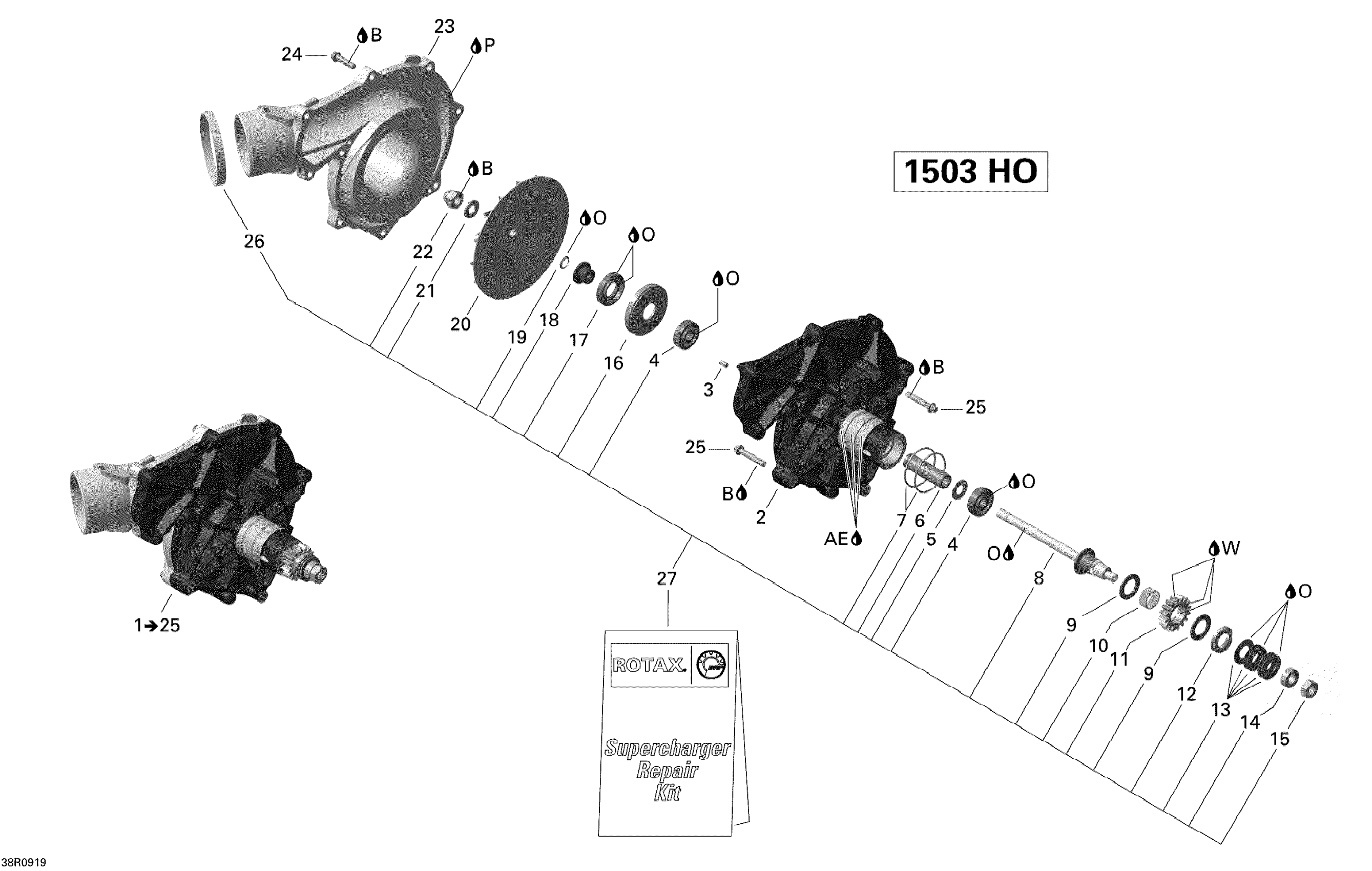

Sea-doo 180 Challenger SE, 1 x 255 HO, 2009 02- Supercharger Diagram
#
Description
Price
1
Supercharge Ass'y | Includes 1 to 25 This part replaces 420881992.
420893563
$1.00
2
Compressor Base Plate
420867180
$264.99
3
Drive Pin 5 X 10
420929650
$1.68
4
Bearing Ball This part replaces 420832710.
420832713
$39.99
5
THRUST WASHER - Call your local BRP dealership
420227685
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
O-Ring | Included in gasket kit
420650270
$8.01
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Needle Pin This part replaces 420632430.
420632435
$35.99
11
Not Available As Spare Part - Friction Washer
Unavailable
12
LOCK WASHER - Call your local BRP dealership
420926377
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
HEX. NUT - Call your local BRP dealership
420942950
Unavailable
16
THRUST WASHER - Call your local BRP dealership
420926393
Unavailable
17
Oil Seal
420950940
$30.49
18
STEP COLLAR - Call your local BRP dealership
420947012
Unavailable
19
O-Ring
420950950
$1.01
20
Compressor Impeller
420867195
$699.99
21
SHIM - Call your local BRP dealership
420627418
Unavailable
22
CAP NUT - Call your local BRP dealership
420842833
Unavailable
23
Compressor Housing
420867157
$174.49
24
Torx Flange Screw M6 X 25
420641238
$3.27
25
Torx Flange Screw M6 X 35
420641258
$3.38
26
Gear Clamp
420851703
$22.99
27
Supercharger Kit This part replaces 420881101.
420881102
$499.99
B
Loctite 243, 10 ml
293800060
$21.49
O
Not Available As Spare Part - Friction Washer
Unavailable
P
Loctite 5910, 300 ml
293800081
$57.99
W
Isoflex Grease, TOPAS NB52, 50 g
293550021
$56.99
AE
Grease, Super Lube
293550030
$28.99
