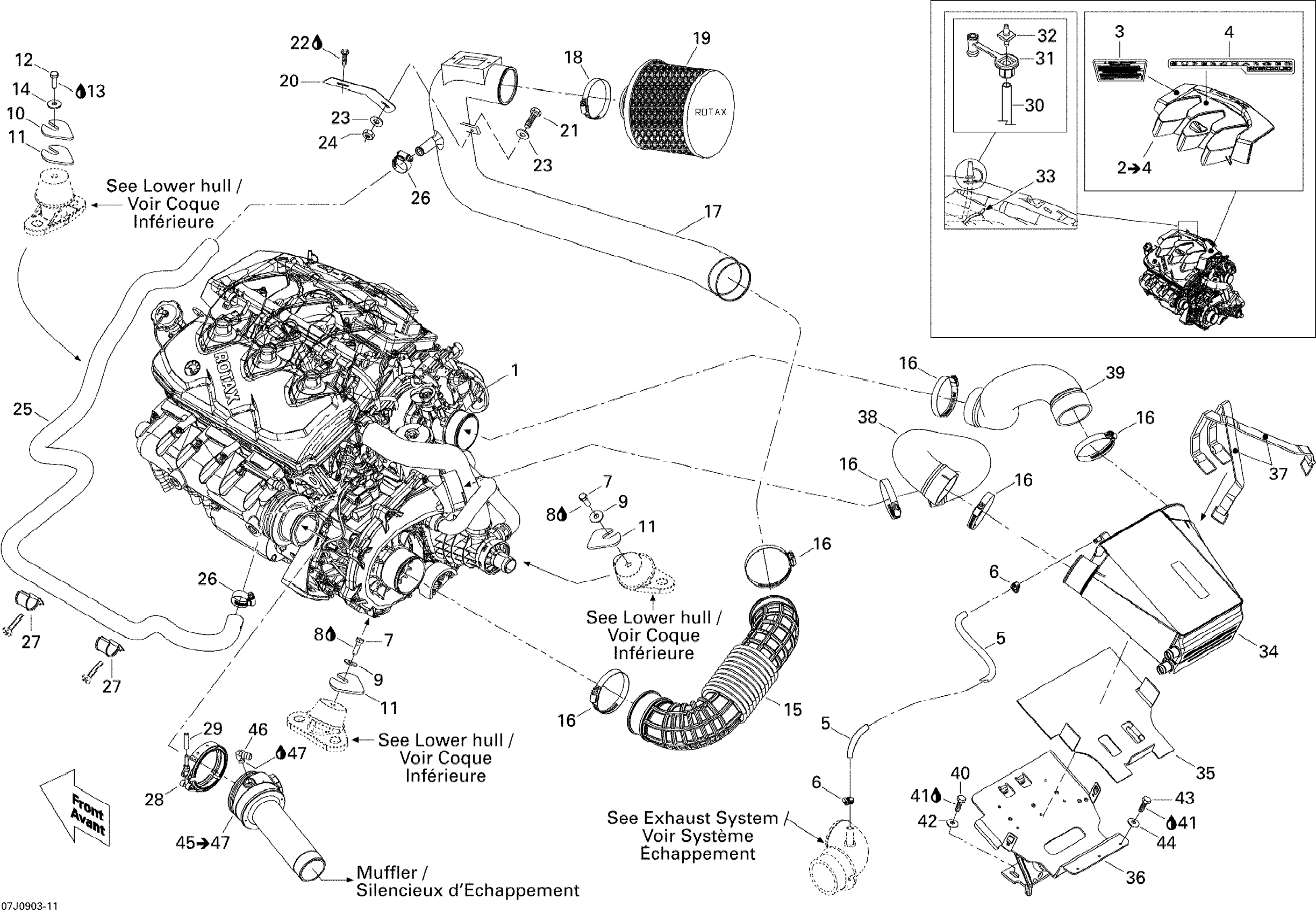

Sea-doo 180 Challenger SE, 1 x 255 HO, 2009 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

Was 275500549 Hose 1/4"

219704357

$194.99

6

Tridon Gear Clamp

293650170

$1.99

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

13

Loctite 243, 10 ml

293800060

$21.49

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

16

Tridon Clamp

293650179

$11.49

17

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

18

Tridon Clamp

293650179

$11.49

19

Air Filter This part replaces 204250436.

204250466

$137.99

20

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

21

Hex. Screw M6 X 30

207163060

$1.48

22

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

23

Flat Washer, Stainless/Neoprene

211200055

$0.73

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

26

Tridon Gear Clamp

293650051

$4.19

27

Retainer

275500664

$14.75

28

Exhaust Clamp

274001417

$58.99

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

31

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

32

CONNECTOR - Call your local BRP dealership

293710107

$1.09

33

Tie Wrap 142 mm

293750002

$1.25

34

Intercooler

276000179

Unavailable

35

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

36

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

37

Fuel Tank Strap

293850093

$21.99

38

INTERCOOLER HOSE, INLET - Call your local BRP dealership

204250441

Unavailable

39

INTERCOOLER HOSE, OUTLET - Call your local BRP dealership

204250442

Unavailable

40

Hex. Screw M6 X 25

207162560

$1.47

41

Loctite 243, 10 ml

293800060

$21.49

42

Flat Washer M6, Stainless

234062600

$0.77

43

Hex. Screw M5 X 20

207152060

$1.47

44

Flat Washer 5 mm, Stainless

234052600

$0.77

45

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

46

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

47

Was 293800013 Loctite 56765

219704454

$65.99
