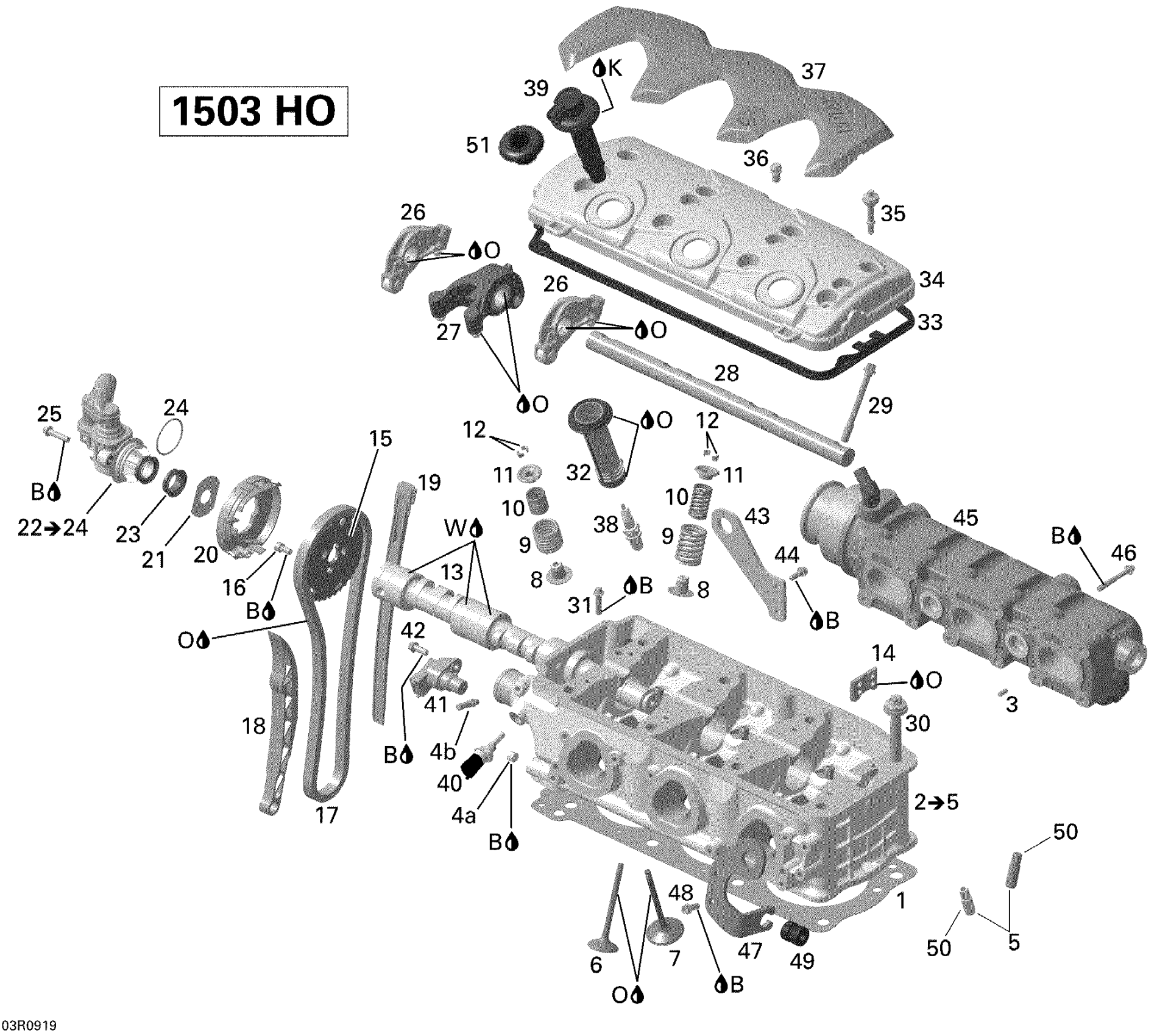

Sea-doo 180 Challenger SE, 1 x 255 HO, 2009 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$115.64

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$786.54

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Drive Pin 5 X 10

420929650

$1.54

4a

Plug Screw M10 X 1

420641323

$13.18

4b

Hose Nipple

420924724

$14.10

5

Valve Guide | Inner diameter machined

420253929

$43.25

6

Exhaust Valve, 31 mm

420254682

$97.73

7

Intake Valve 38MM

420253163

$38.78

8

Valve Steam Seal

420630202

$6.91

9

Valve Spring

420238180

$14.90

10

Valve Spring Inside

420838280

$12.15

11

Valve Spring Retainer

420254283

$8.09

12

Valve Cotter

420253645

$7.01

13

Camshaft This part replaces 420837851.

420637780

Unavailable

14

Camshaft Guide

420851694

$30.57

15

Timing Gear, 38 Teeth

420254309

$66.39

16

Allen Screw M6 X 12

420840032

$4.15

17

Camshaft Chain

420898042

$91.76

18

Chain Tension Guide

420236541

$14.90

19

Chain Guide

420236501

$13.18

20

Cover

420660037

$22.36

21

Thrust Washer

420627494

$7.01

22

Vent Valve | Includes 22 to 24

420856500

$91.01

23

V-Ring 20S FPM Blow By Valve

420630125

$10.76

24

O-Ring

420950870

$5.06

25

Torx Flange Screw M6 X 25

420641238

$3.07

26

Rocker Arm, Exhaust

420254329

$129.07

27

Rocker Arm, Inner

420254316

$170.12

28

Rocker Arm, Shaft

420854594

$187.28

29

Torx Screw M8 X 72

420641080

$5.04

30

Torx Flange Screw M11 X 147

420641110

$9.91

31

Torx Flange Screw M6 X 25

420641238

$3.07

32

Spark Plug Pipe

420851754

$26.09

33

Valve Cover Gasket | Included in gasket kit

420950820

$31.31

34

Valve Cover

420811589

$139.52

35

Allen Screw M6 x 30,5

420440561

$4.21

36

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

37

Valve Cover

420660167

$55.19

38

Spark Plug, NGK DCP-R8E

715900637

$6.49

39

Ignition Coil Kit This part replaces 420664020.

296000307

$99.22

40

Temperature Sensor

278002895

$36.54

41

Camshaft Position Sensor Ass'y

420664046

$81.31

42

Torx Flange Screw M6 X 16

420641048

$2.82

43

Transport Bracket PTO

420851618

$25.34

44

Torx Flange Screw M6 X 16

420641048

$2.82

45

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$748.48

46

Torx Flange Screw M6 X 45

420641198

$3.88

47

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

48

Torx Flange Screw M6 X 16

420641048

$2.82

49

Rubber Bracket

420660090

$3.88

50

Valve Guide | Inner diameter machined

420253929

$43.25

51

Sealing Cup

420460830

$20.12

B

Loctite 243, 10 ml

293800060

$21.49

K

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
