10- Electrical Accessories 1

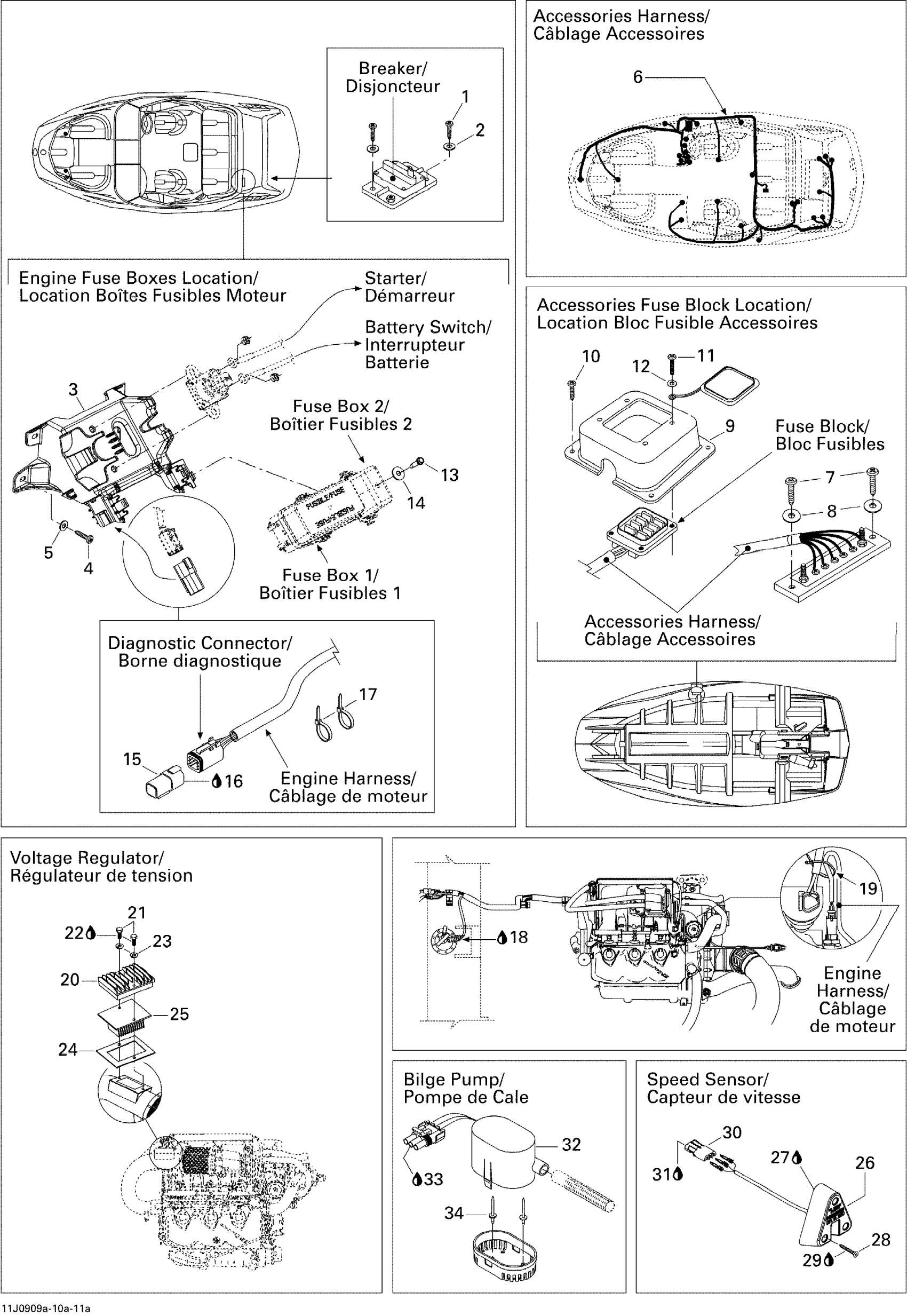

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 10- Electrical Accessories 1 Diagram
#
Description
Price
1
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
2
Flat Washer 4 mm, Stainless
234041600
$1.15
3
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
4
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Accessories Wiring Haness
204471349
Unavailable
7
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
8
Flat Washer 4 mm, Stainless
234041600
$1.15
9
FUSE BLOCK SUPPORT - Call your local BRP dealership
204471274
Unavailable
10
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
11
Pan Head Screw 10-32 X 1/2"
204100220
$2.51
12
Flat Washer 5 mm, Stainless
234052600
$0.77
13
Hex. Screw 10-14 X 7/8”
211000023
$3.59
14
Flat Washer 5 mm, Stainless
234052600
$0.77
15
Diagnostic Connector
278002704
$19.49
16
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
17
Tie-Rap 180 mm
414115200
$0.11
18
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
19
Tie Wrap 142 mm
293750002
$1.25
20
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
21
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
22
Loctite 243, 10 ml
293800060
$21.49
23
Lock Washer 1/4”
211200025
$1.29
24
SEAL - Call your local BRP dealership
204471293
Unavailable
25
RECTIFIER HEAT SINK - Call your local BRP dealership
204471296
Unavailable
26
Speed Sensor
278001993
$169.99
27
Silicone Sealant 51388, 300 ml
296000309
$36.99
28
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
29
Silicone Sealant 51388, 300 ml
296000309
$36.99
30
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
31
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
32
Bilge Pump
204471431
Unavailable
33
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
34
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
