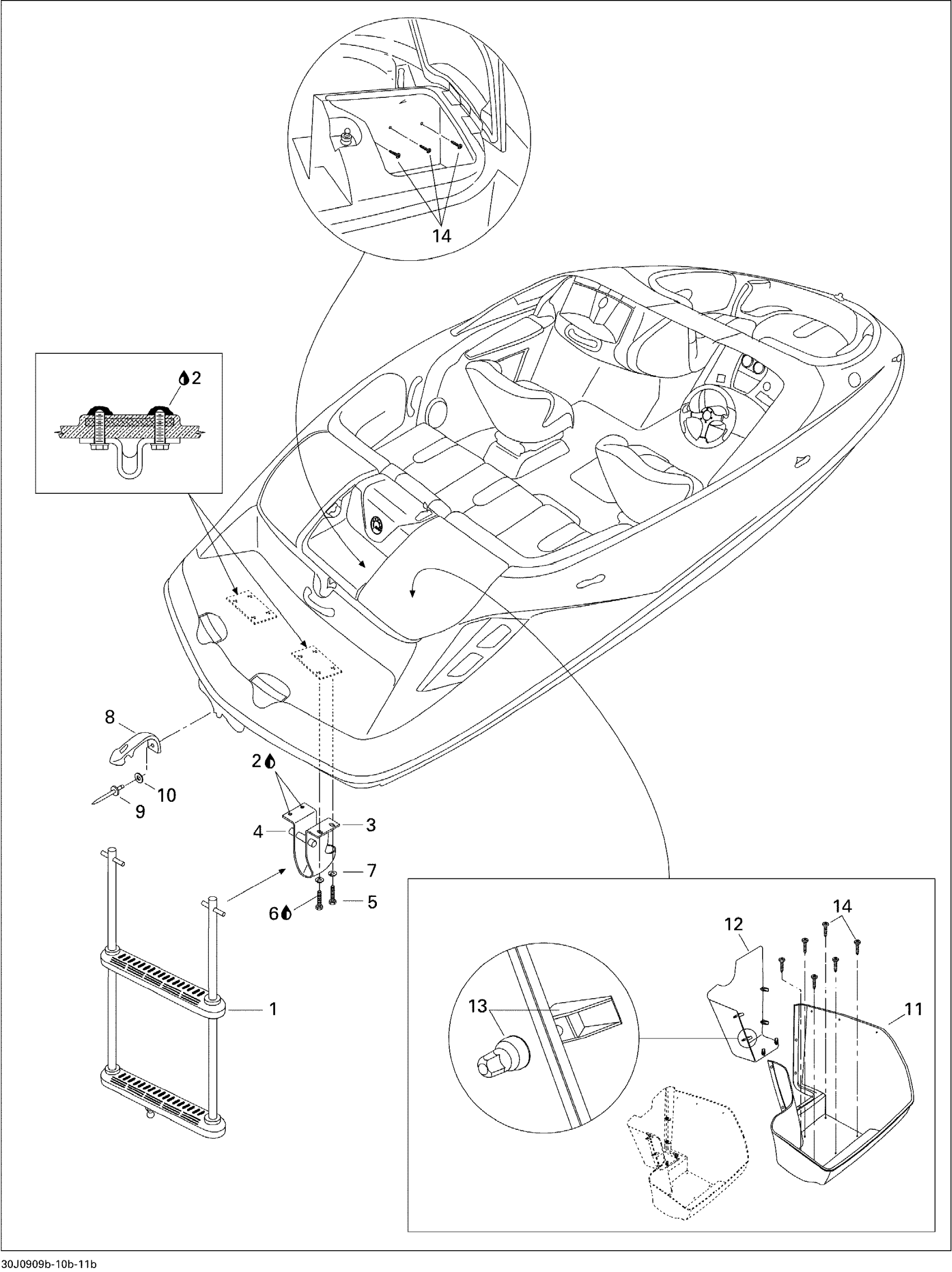

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 Lower Hull And Ladder Diagram

#

Description

Price

1

LADDER, 2 STEPS - Call your local BRP dealership

204061384

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

$36.99

3

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

4

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.49

6

Loctite 243, 10 ml

293800060

$21.49

7

Lock Washer Helical M6

234161601

$1.15

8

Hood Latch

570027100

$13.49

9

Pop Rivet 3/16"

293150013

$1.37

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

Rear Storage Bin

204061286

Unavailable

12

Rear Storage Bin Panel

204061223

Unavailable

13

LATCH ASS'Y - Call your local BRP dealership

204050309

Unavailable

14

Phillips Tapping Screw

204100058

$0.66
