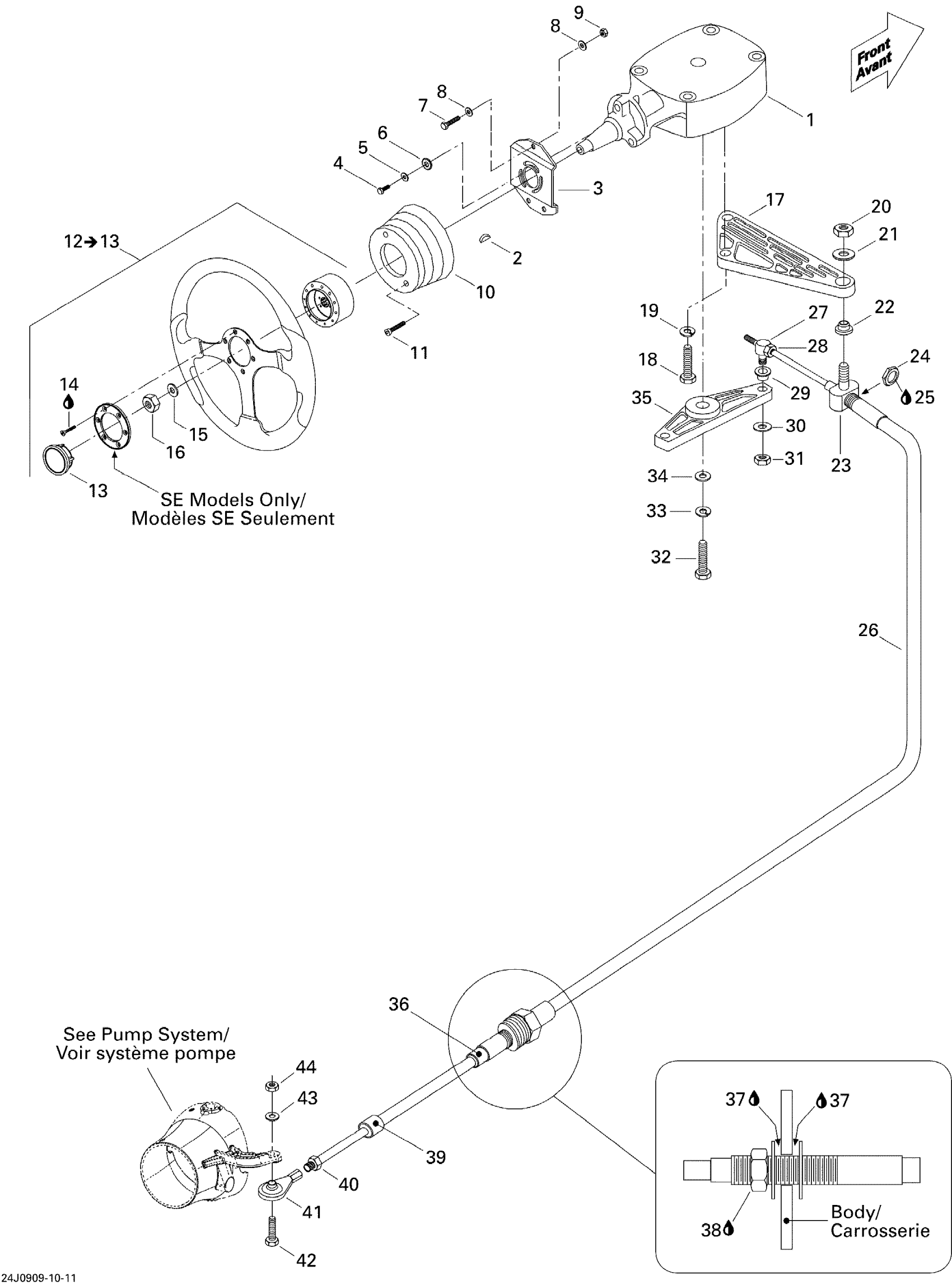

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 07- Steering Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
3
Support
277000383
Unavailable
4
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Serrated Lock Washer 8 mm
234481608
$1.15
7
Hex. Screw M6 X 40
207164060
$3.38
8
Stainless Flat Washer M6
234061600
$0.33
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
11
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
12
STEERING WHEEL ASS'Y - Call your local BRP dealership | SE
204390550
Unavailable
13
CENTER CAP - Call your local BRP dealership | SE
204390549
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
16
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
17
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
18
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
19
Lock Washer 1/4”
211200025
$1.29
20
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
21
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Flanged Bushing
293350014
$12.99
23
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
24
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
CABLE STEERING - Call your local BRP dealership
277001766
Unavailable
27
PIVOT - Call your local BRP dealership
277000456
Unavailable
28
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
29
BUSHING - Call your local BRP dealership
204130095
Unavailable
30
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
31
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
32
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
33
Lock Washer 1/4”
211200025
$1.29
34
Flat Washer M6, Stainless
234062600
$0.77
35
ARM - Call your local BRP dealership
204390040
Unavailable
36
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Loctite 243, 10 ml
293800060
$21.49
39
Terminal Wiper
277000441
$11.99
40
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
41
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
42
Hex. Screw M6 X 35
207063560
$2.22
43
Stainless Flat Washer M6
234061600
$0.33
44
Hex. Elastic Stop Nut M6
232561600
$1.15
