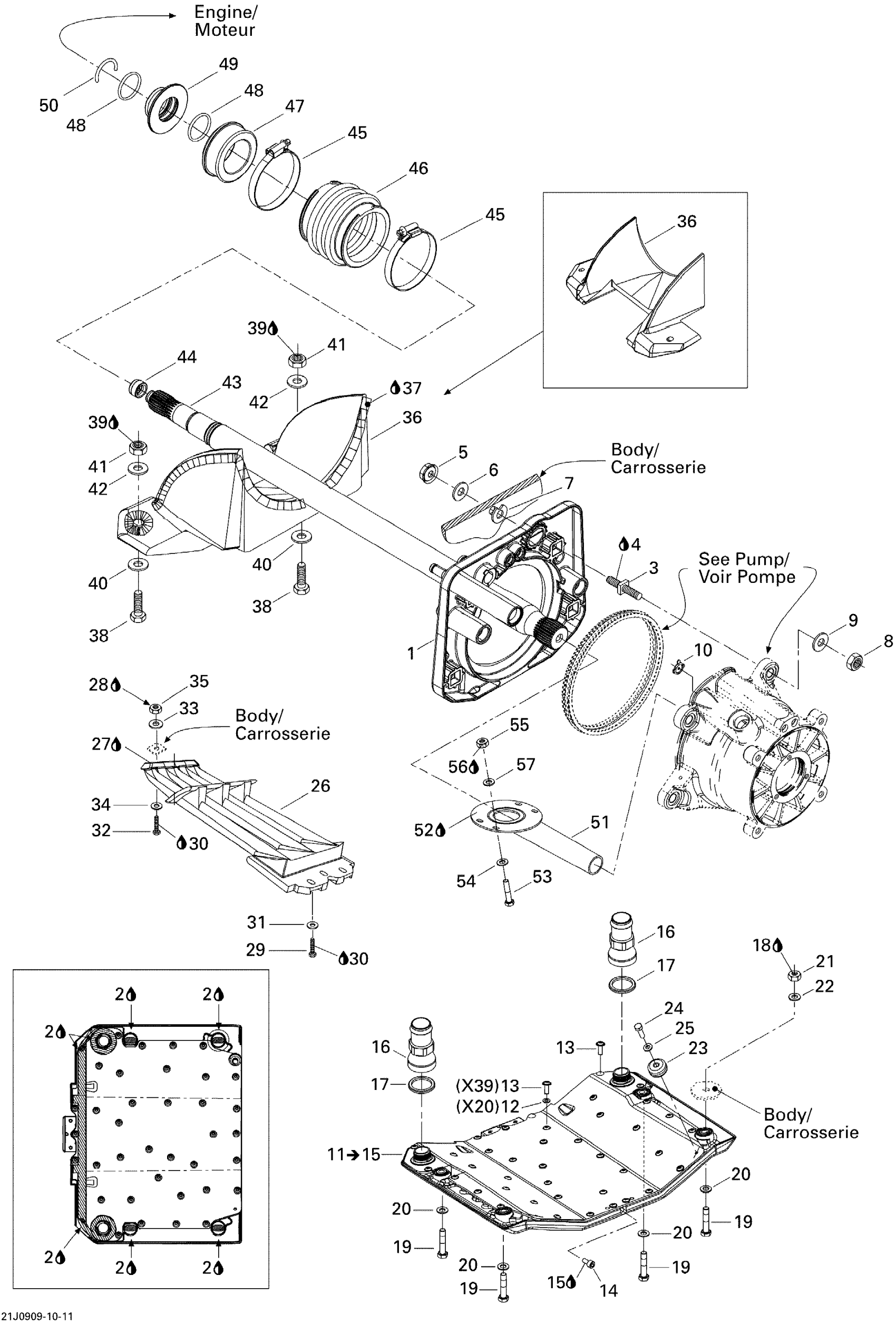

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120333
Unavailable
2
Instant Gasket
219701421
$51.99
3
Square Stud
250300022
$20.99
4
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
5
Elastic Stop Nut M10, Brass
232501200
$2.64
6
Flat Washer 10 mm, Stainless
234002600
$2.22
7
Shim 0.3 mm
272000053
$11.49
8
Elastic Stop Nut M10, Brass
232501200
$2.64
9
Flat Washer
211200051
$1.68
10
Reducer This part replaces 291001887.
291004649
$17.49
11
RIDING PLATE - Call your local BRP dealership | Includes 10 to 13
204120367
Unavailable
12
Sealing Washer
250200114
$4.44
13
Torx Screw M6 X 14
250000384
$7.51
14
Socket Drain Plug M6 X 12
250500005
$16.49
15
Was 293800013 Loctite 56765
219704454
$65.99
16
Straight Plastic Fitting
293710111
$8.47
17
O-Ring
293300121
$8.32
18
Silicone Sealant 51388, 300 ml
296000309
$36.99
19
Hex. Screw M8 X 40
207084060
$2.22
20
Flat Washer 8 mm, Stainless
234082600
$2.43
21
Hex. Elastic Nut M8
232581600
$1.48
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
Anode Zinc
271001813
$18.99
24
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
25
Stainless Flat Washer M6
234061600
$0.33
26
PUMP GRATE - Call your local BRP dealership
204120375
Unavailable
27
Instant Gasket
219701421
$51.99
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
Hex. Screw M6 X 16
207161660
$1.59
30
Loctite 271, 10 ml
293800005
$26.99
31
Stainless Flat Washer M6
234061600
$0.33
32
Hex. Screw M8 X 40
207184060
$2.22
33
Stainless, Flat Washer 8 mm
234081600
$0.55
34
Stainless, Flat Washer 8 mm
234081600
$0.55
35
Hex. Elastic Nut M8
232581600
$1.48
36
INLET RAMP - Call your local BRP dealership
204120370
Unavailable
37
Instant Gasket
219701421
$51.99
38
Hex. Screw M8 X 40
207084060
$2.22
39
Loctite 243, 10 ml
293800060
$21.49
40
Stainless, Flat Washer 8 mm
234081600
$0.55
41
Hex. Elastic Nut M8
232581600
$1.48
42
Flat Washer 8 mm, Stainless
234082600
$2.43
43
Drive Shaft
204120284
$476.99
44
Drive Shaft Plug
272000173
$8.68
45
Norma Clamp
293650077
$7.41
46
Bellows
272000183
$28.99
47
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
48
O-Ring
293300044
$1.05
49
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
50
C-Clip
271001575
$6.11
51
SHAFT GUARD - Call your local BRP dealership
204120316
Unavailable
52
Instant Gasket
219701421
$51.99
53
Phillips Screw M5 X 35
208653560
$2.22
54
Flat Washer M5, Stainless
234051600
$0.77
55
Hex. Elastic Nut M5 | X
232551600
$1.15
56
Silicone Sealant 51388, 300 ml
296000309
$36.99
57
Flat Washer 5 mm, Stainless
234052600
$0.77
