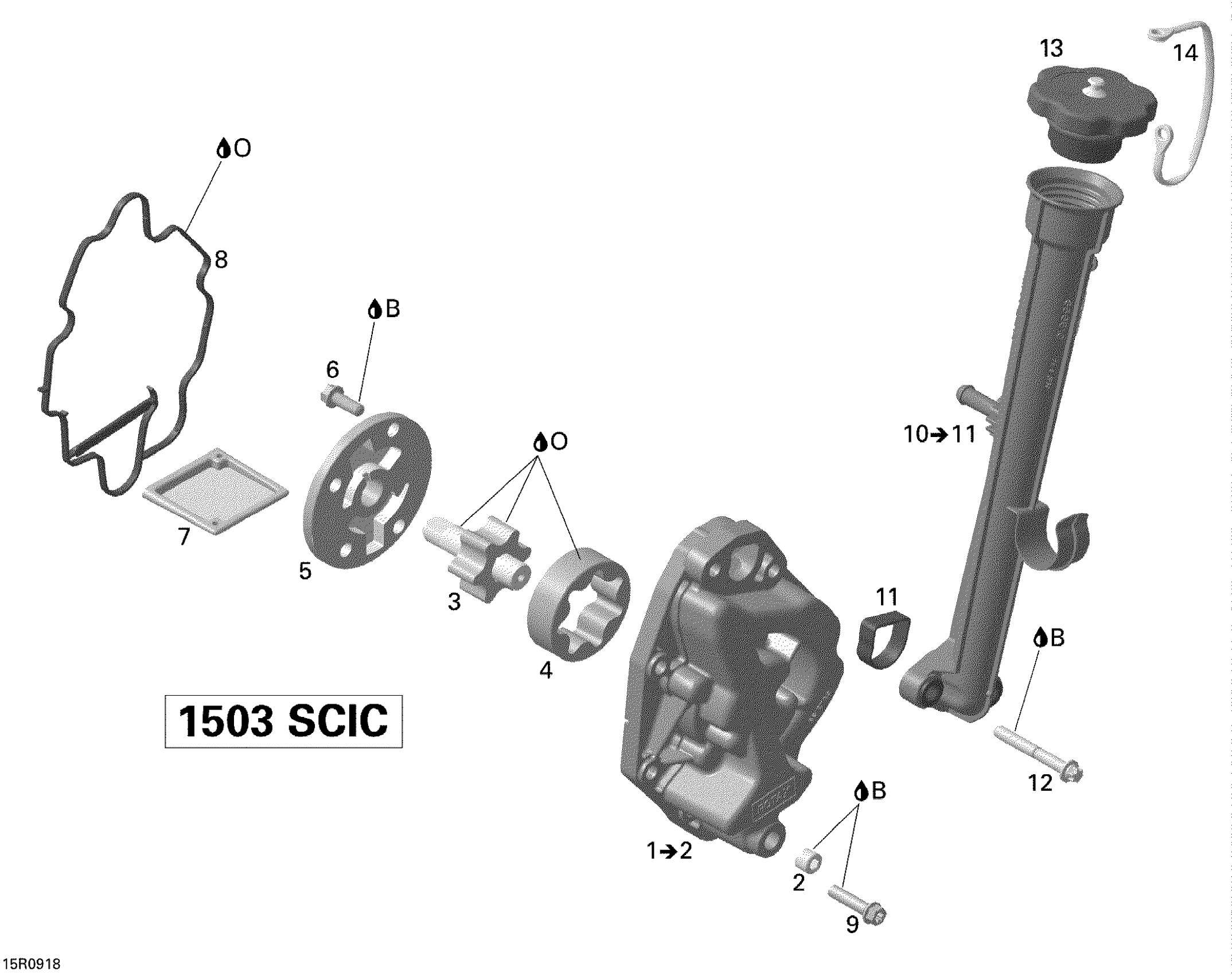

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 Oil Separator Diagram

Oil Pump Housing

420812723

$91.62

Plug Screw M10 X 1

420641323

$11.48

Oil Pump Shaft

420837543

$49.37

Oil Pump Rotor 16 mm

420956675

$29.22

Oil Pump Cover

420811851

$27.27

Torx Flange Screw M6 X 16

420641048

$2.46

Oil Sieve

420856520

$21.42

Oil Suction Pump Gasket | Included in gasket kit

420631486

$7.87

Torx Flange Screw M6 X 25

420641238

$2.68

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

Unavailable

Gasket

420430240

$3.61

Torx Flange Screw M6 X 45

420641198

$3.38

Plug Cover, Yellow

420956923

$19.47

Retaining Band

420660620

$6.11

Loctite 243, 10 ml

293800060

$20.77

Not Available As Spare Part - Friction Washer

Unavailable
