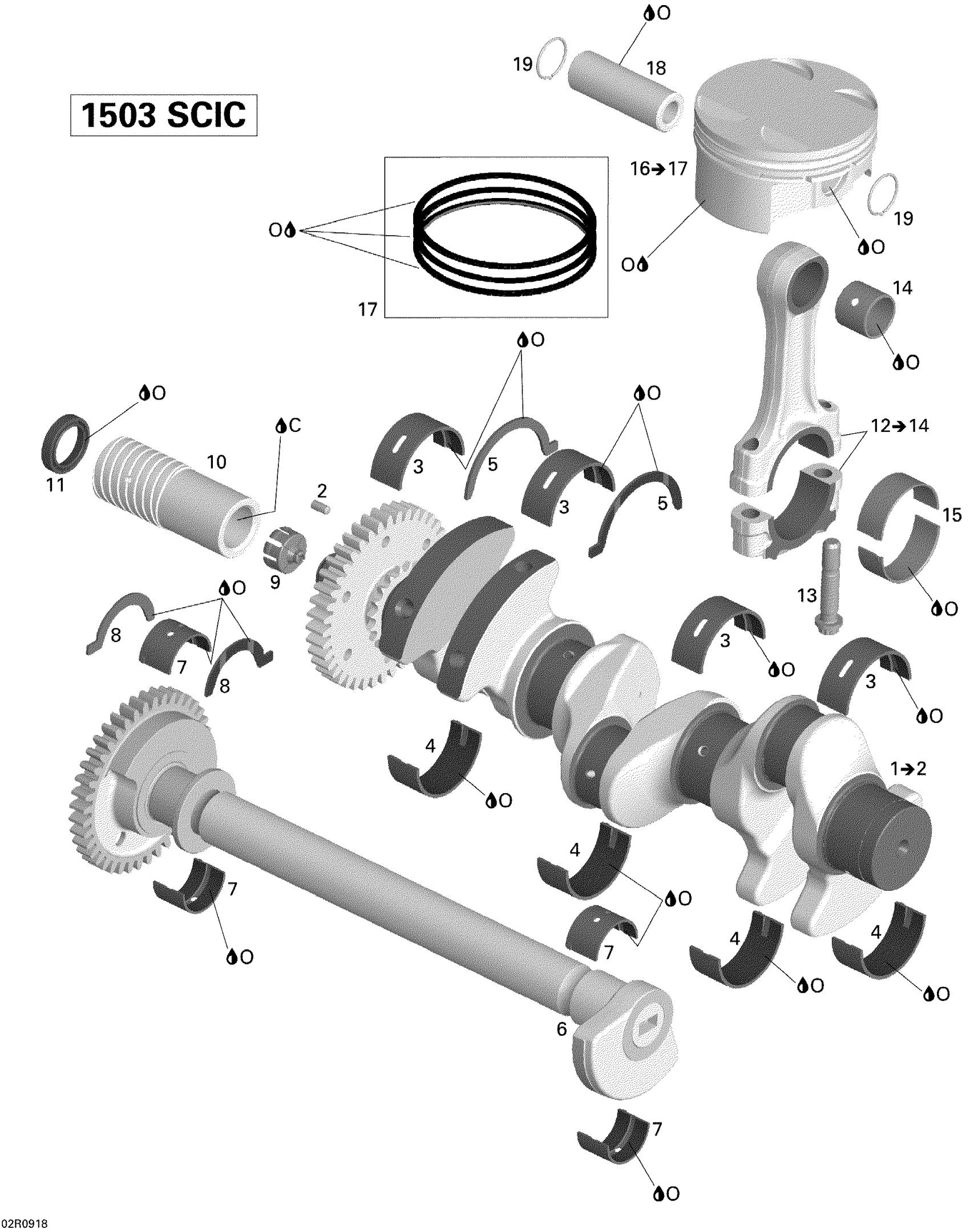

Sea-doo 180 Challenger SE, 1 x 215 SCIC, 2009 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420819348

$1,011.49

1

Crankshaft Ass'Y This part replaces 421000671.

420819341

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.54

3

Plain Half-Bearing

420933456

$13.90

4

Plain Half-Bearing

420933466

$13.90

5

Half-Ring

420933475

$10.76

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$579.07

7

Plain Bearing Half

420933442

$17.13

8

Half-Ring

420933470

$7.01

9

Stop Sleeve

420660280

$12.52

10

Output Sleeve This part replaces 420847952.

420947770

$112.66

11

Sealing Ring

420630551

$14.10

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

13

Connecting rod Screw M10 X 1

420640991

$10.76

14

Bearing Sleeve

420933510

$11.91

15

Half-Bearing

420933523

$16.39

16

Piston Ass'y, Standard, 99.94 mm | Includes 16 to 17

420890244

$249.97

16

Piston Ass'y, Oversize, 100.19 mm | Includes 16 to 17

420890245

$232.81

17

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$64.59

17

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$72.99

18

Piston Pin

420216250

$24.46

19

Circlip

420845580

$2.45

C

Sealant Loctite 648

219703000

$41.01

O

Not Available As Spare Part - Friction Washer

Unavailable
