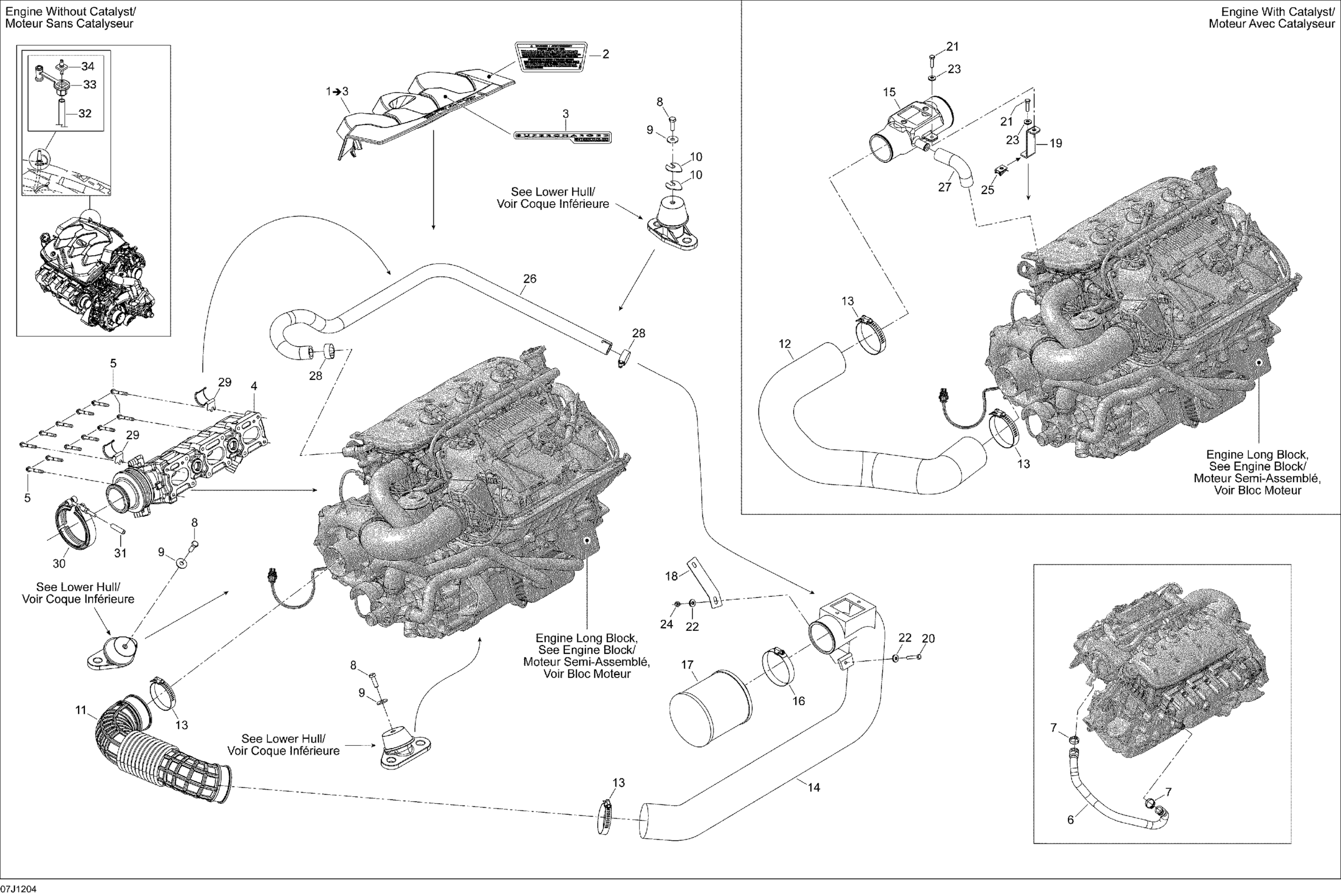

Sea-doo 180 Challenger & Challenger SE 215, 2012 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

2

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

3

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

4

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

5

Torx Flange Screw M6 X 45

420641198

$4.12

6

FORMED HOSE - Call your local BRP dealership

420822173

Unavailable

7

Crimp Clamp

293650217

$8.47

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

12

INTAKE HOSE - Call your local BRP dealership | With Catalyst

273000312

Unavailable

13

Tridon Clamp

293650179

$11.49

14

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

15

AIR INTAKE TUBE - Call your local BRP dealership | With Catalyst

270000861

Unavailable

16

Tridon Clamp

293650179

$11.49

17

Air Filter This part replaces 204250436.

204250466

$137.99

18

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

19

BRACKET-INTAKE - Call your local BRP dealership | With Catalyst

273000310

Unavailable

20

Hex. Screw M6 X 30

207163060

$1.48

21

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

22

Flat Washer, Stainless/Neoprene

211200055

$0.73

23

Flat Washer M6, Stainless

234062600

$0.77

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Panel Nut M6 X 1

420942108

$14.28

26

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

27

FORMED HOSE - Call your local BRP dealership | With Catalyst

270000853

Unavailable

28

Tridon Gear Clamp

293650051

$4.19

29

Retainer

275500664

$14.75

30

Exhaust Clamp

274001417

$58.99

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

33

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

34

CONNECTOR - Call your local BRP dealership

293710107

$1.09
