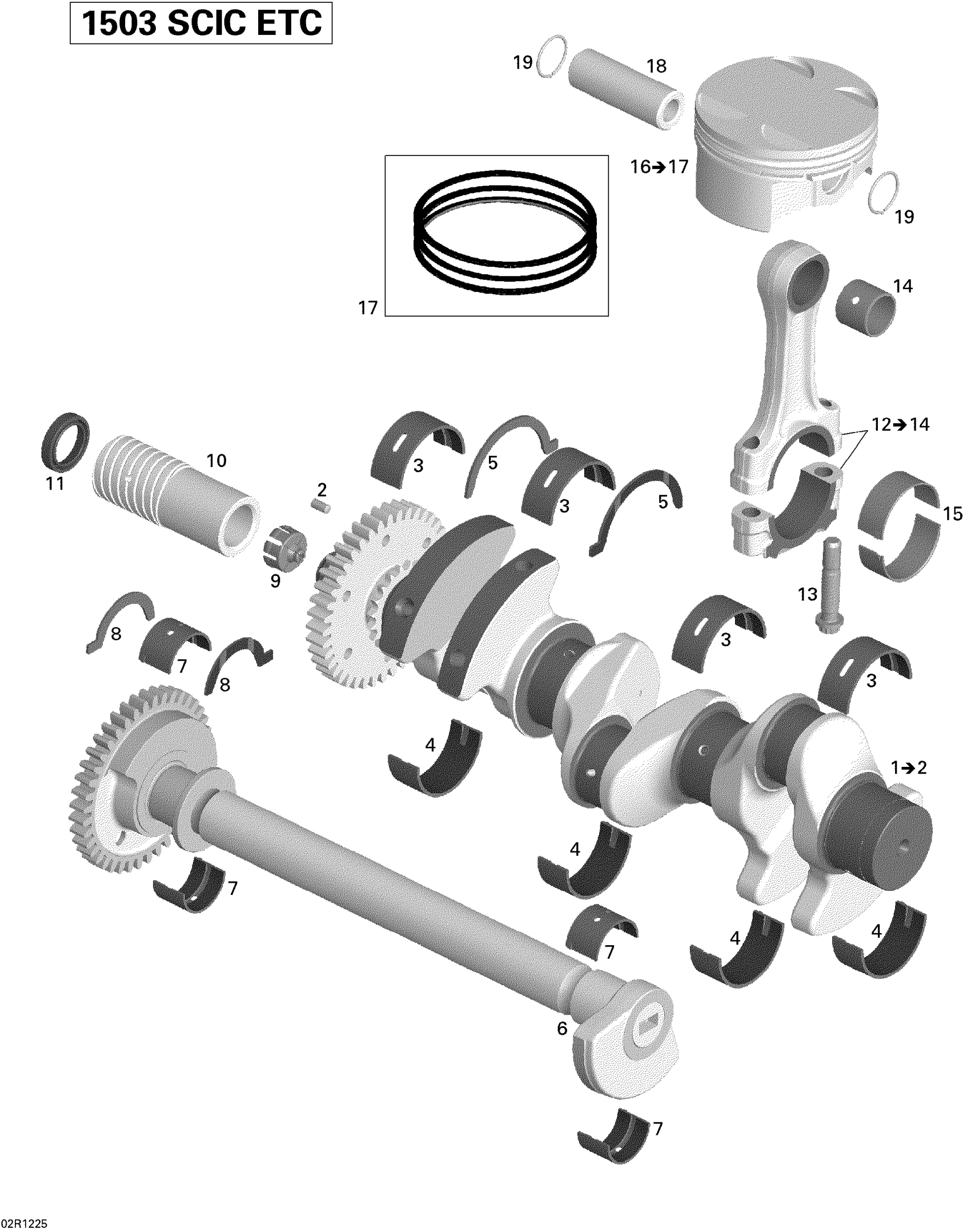

Sea-doo 180 Challenger & Challenger SE 215, 2012 Crankshaft, Pistons And Balance Shaft Diagram

Crankshaft Ass'y | Includes 1 to 2

420819348

$949.99

Crankshaft Ass'Y This part replaces 421000671.

420819341

$1.00

Drive Pin 5 X 10

420929650

$1.68

Plain Half-Bearing

420933456

$16.34

Plain Half-Bearing

420933466

$16.34

Half-Ring

420933475

$11.63

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$614.49

Plain Bearing Half

420933442

$19.99

Half-Ring

420933470

$7.41

Stop Sleeve

420660280

$14.75

Output Sleeve This part replaces 420847952.

420947770

$121.99

Sealing Ring

420630551

$14.83

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

Connecting rod Screw M10 X 1

420640991

$11.63

Bearing Sleeve

420933510

$14.22

Half-Bearing

420933523

$19.19

Piston Ass'y, Standard, 99.94 mm | Includes 16 to 17

420890244

$249.99

Piston Ass'y, Oversize, 100.19 mm | Includes 16 to 17

420890245

$233.99

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$65.99

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$71.49

Piston Pin

420216250

$23.99

Circlip

420845580

$2.64
