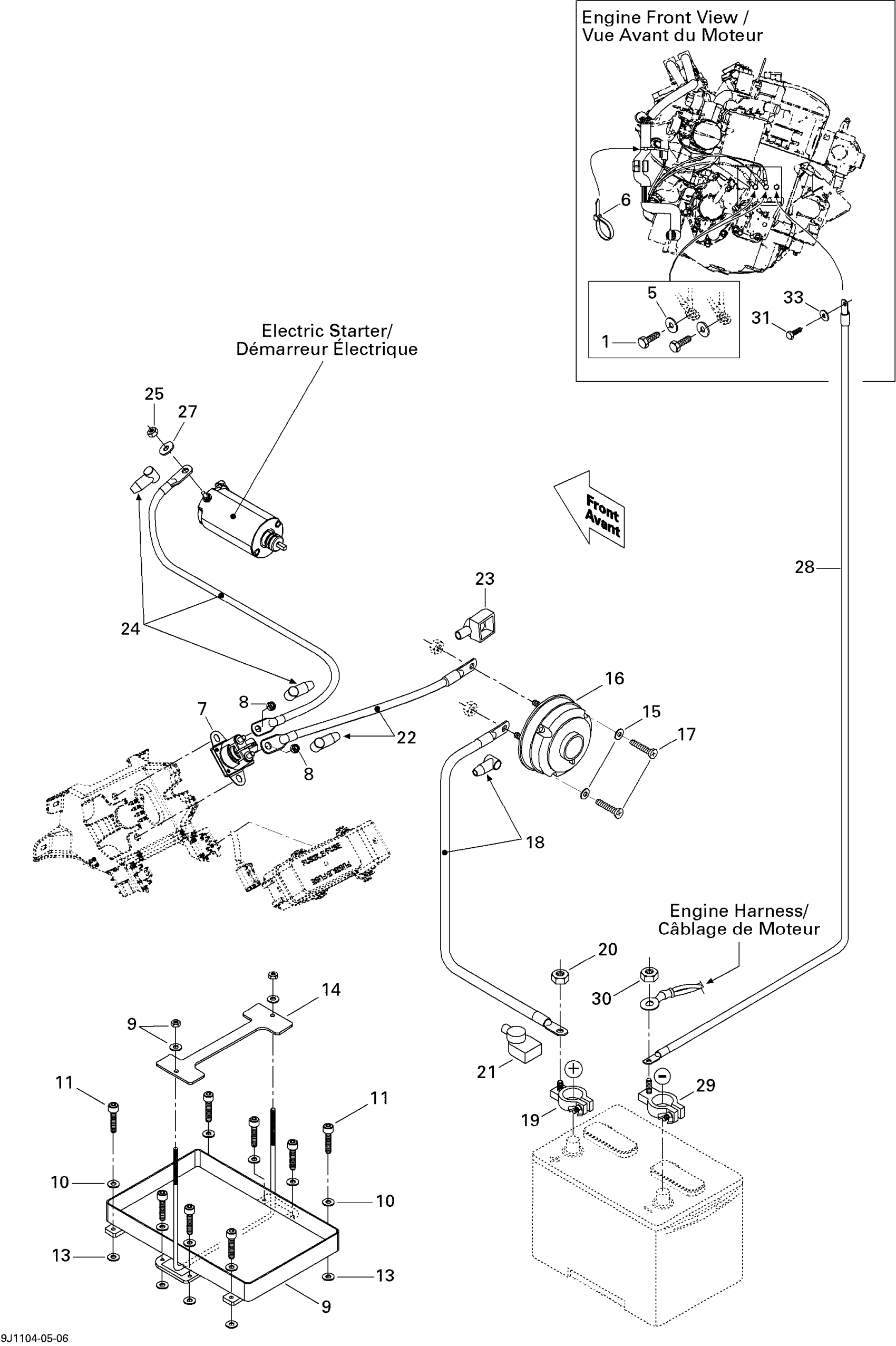

Sea-doo 180 Challenger 215, 2011 10- Electrical System Diagram
#
Description
Price
1
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
5
Stainless Flat Washer M6
234061600
$0.33
6
Tie-Rap 180 mm
414115200
$0.11
7
Starter Relay
278003012
$42.49
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
10
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
11
Socket Head Screw M6 X 25
205062560
$1.69
13
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
14
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
15
Flat Washer M5, Stainless
234051600
$0.77
16
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
17
PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership
250000089
Unavailable
18
POSITIVE SWITCH CABLE - Call your local BRP dealership
204470250
Unavailable
19
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
20
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
21
RED BOOT - Call your local BRP dealership
204470269
Unavailable
22
RED CABLE - Call your local BRP dealership
204470799
Unavailable
23
RED BOOT - Call your local BRP dealership
204470269
Unavailable
24
RED CABLE - Call your local BRP dealership
204470798
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
$1.15
27
Stainless Flat Washer M6
234061600
$0.33
28
RH GROUND CABLE - Call your local BRP dealership
204470199
Unavailable
29
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
30
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
31
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
33
Flat Washer M6, Stainless
234062600
$0.77
