- 180 Challenger 215, 2011
10- Electrical Accessories 2

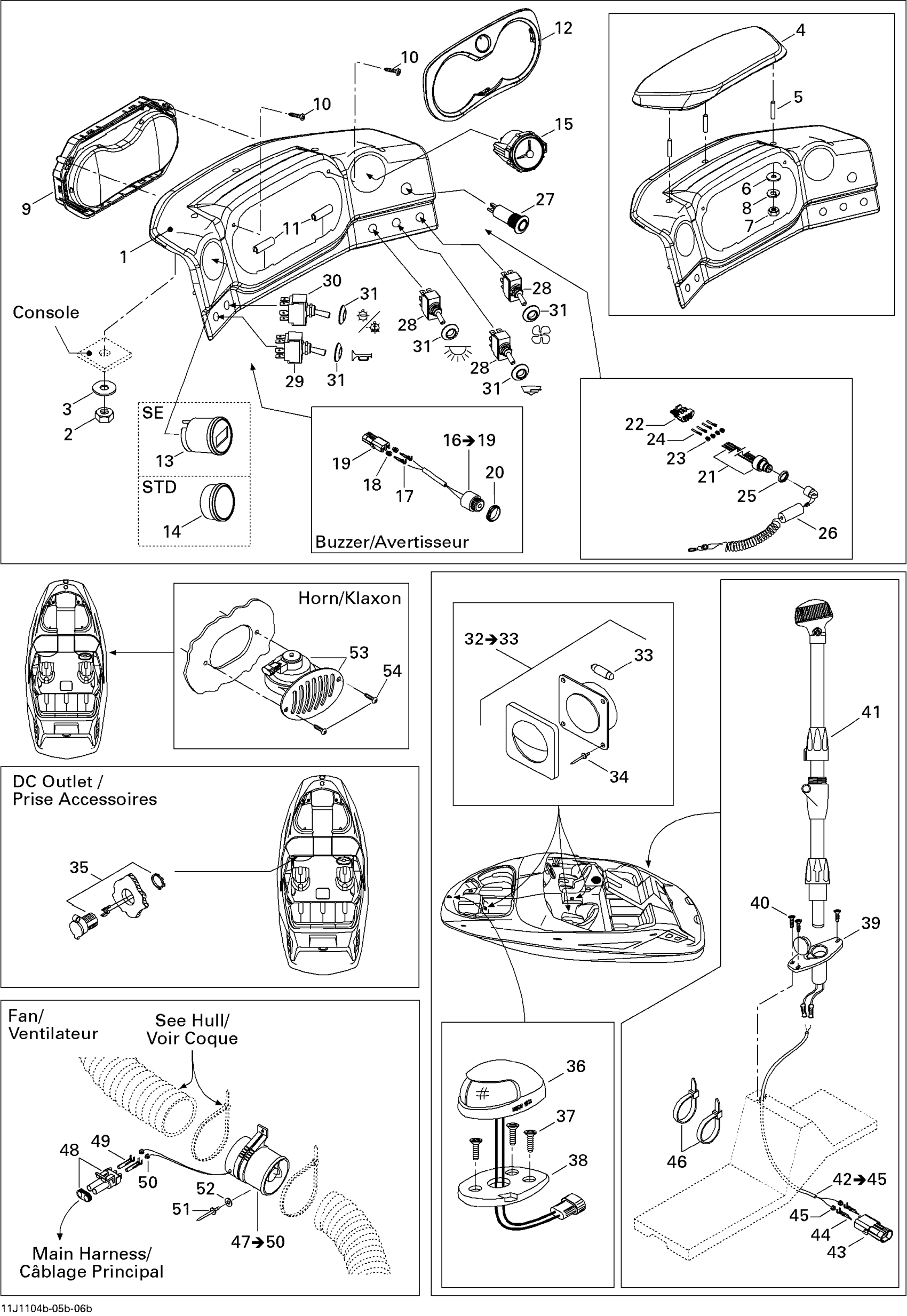

Sea-doo 180 Challenger 215, 2011 10- Electrical Accessories 2 Diagram
#
1
DASHBOARD FASCIA - Call your local BRP dealership
278002524
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
4
DASHBOARD CAP - Call your local BRP dealership
278002561
Unavailable
5
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
6
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
7
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
8
Lock Washer Helical M6
234161601
$1.15
9
Cluster Gauge
204471378
$899.99
10
Hex. Flange Screw K40 X 16
241141660
$1.48
11
TRIM - Call your local BRP dealership
293830113
Unavailable
12
Gauge Bezel, Chrome
278002144
$38.99
13
Not Available As Spare Parts
XXX
Unavailable
14
GAUGE CAP - Call your local BRP dealership | STD
204470987
Unavailable
15
GAUGE - CLOCK - Call your local BRP dealership
278002582
Unavailable
16
Buzzer Ass'y
204470913
$92.99
17
Male Terminal | XT Models
278000222
$3.19
18
Wire Seal
278000218
$4.39
19
Female Housing, 2 Circuits
278000217
$9.59
20
Buzzer Nut
278000707
Unavailable
21
Safety Switch
278002351
$114.99
22
Male Housing, 4 Circuits
278000395
$15.99
23
Wire Seal
278000218
$4.39
24
Female Terminal
278000223
$3.19
25
Safety Nut (DESS Switch)
278002963
$3.28
26
Safety Lanyard
204471206
$56.99
27
START SWITCH - Call your local BRP dealership
278002504
Unavailable
28
SWITCH - Call your local BRP dealership
278002413
Unavailable
29
SWITCH - Call your local BRP dealership
278002414
Unavailable
30
SWITCH - Call your local BRP dealership
278002505
Unavailable
31
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
32
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
33
BULB - Call your local BRP dealership
204470081
Unavailable
34
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
35
DC Outlet
710001248
$37.99
36
Front Lamp
204470372
Unavailable
37
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
38
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
39
REAR LIGHT BASE - Call your local BRP dealership
204470990
Unavailable
40
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
41
REAR LIGHT POLE - Call your local BRP dealership
204470979
Unavailable
42
REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42
204470980
Unavailable
43
Female Housing, 2 Circuits
278000217
$9.59
44
Male Terminal | XT Models
278000222
$3.19
45
Wire Seal
278000218
$4.39
46
Tie Wrap 142 mm
293750002
$1.25
47
Fan Ass'y | Includes 44 to 47
204470108
$144.99
48
Male Connector, 2 Circuits
278000220
$15.49
49
Female Terminal
278000223
$3.19
50
Wire Seal
278000218
$4.39
51
Pop Rivet 3/16"
293150088
$0.99
52
Flat Washer 5 mm, Stainless
234052600
$0.77
53
HORN - Call your local BRP dealership
204470801
Unavailable
54
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
