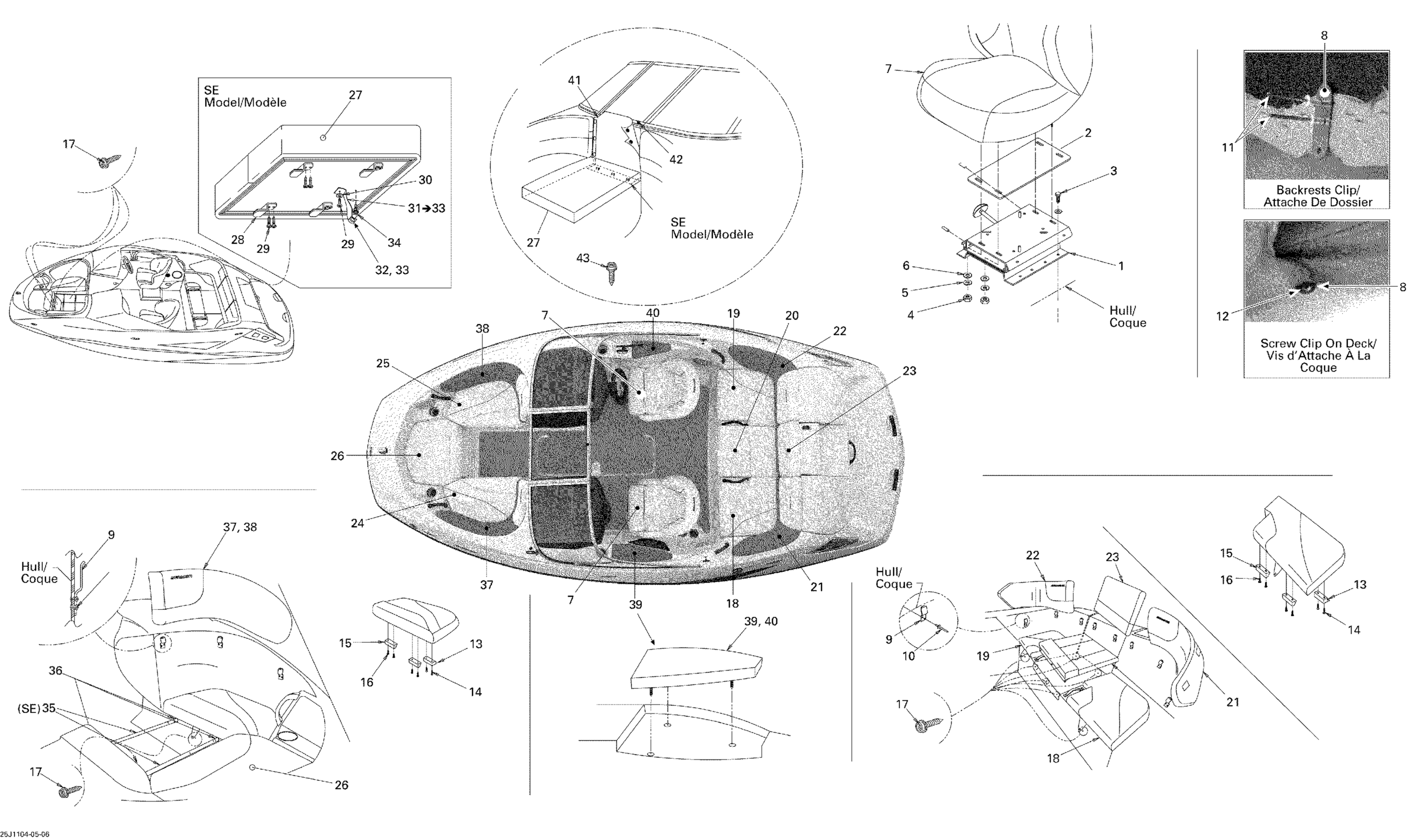

Sea-doo 180 Challenger 215, 2011 09- Seat Diagram
#
1
SEAT BASE, PORT SIDE - Call your local BRP dealership
204614717
Unavailable
1
SEAT BASE, STARBOARD - Call your local BRP dealership
204614718
Unavailable
2
SEAT BASE SHIM - Call your local BRP dealership
204614821
Unavailable
3
Hex. Screw M6 X 35
207163560
$1.49
4
Plastite Hex. Screw M6.8 X 35
243163560
$4.44
5
Lock Washer 1/4”
211200025
$1.29
6
Flat Washer M6, Stainless
234062600
$0.77
7
BUCKET SEAT ASS'Y - Call your local BRP dealership
269002177
Unavailable
8
SEAT SUPPORT - Call your local BRP dealership
269001696
Unavailable
9
SEAT SUPPORT - Call your local BRP dealership
269001695
Unavailable
10
Pop Rivet 3/16"
293150043
$2.09
11
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
12
Phillips Screw #8 X 1/2”
204100030
Unavailable
13
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
14
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
15
LATCH - Call your local BRP dealership
204611805
Unavailable
16
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
17
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
18
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002207
Unavailable
19
REAR CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269002541
Unavailable
20
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002209
Unavailable
21
REAR BACKREST ASS'Y, PORT SIDE - Call your local BRP dealership
269002210
Unavailable
22
REAR BACKREST ASS'Y, STARBOARD - Call your local BRP dealership
269002211
Unavailable
23
REAR BACKREST ASS'Y, CENTER - Call your local BRP dealership | STD, SE
269002212
Unavailable
24
FRONT CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002543
Unavailable
25
FRONT CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269002544
Unavailable
26
FRONT CUSHION ASS'Y, CENTER - Call your local BRP dealership | STD, SE
269002545
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
35
Not Available As Spare Parts
XXX
Unavailable
36
TUBE CAP - Call your local BRP dealership | Except STD
204613165
Unavailable
37
FRONT BACKREST ASS'Y, PORT SIDE - Call your local BRP dealership
269002217
Unavailable
38
FRONT BACKREST ASS'Y, STARBOARD - Call your local BRP dealership
269002218
Unavailable
39
ARMREST CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002010
Unavailable
40
ARMREST CUSHION ASS'Y, STARBOARD - Call your local BRP dealership | STD, SE
269002011
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
