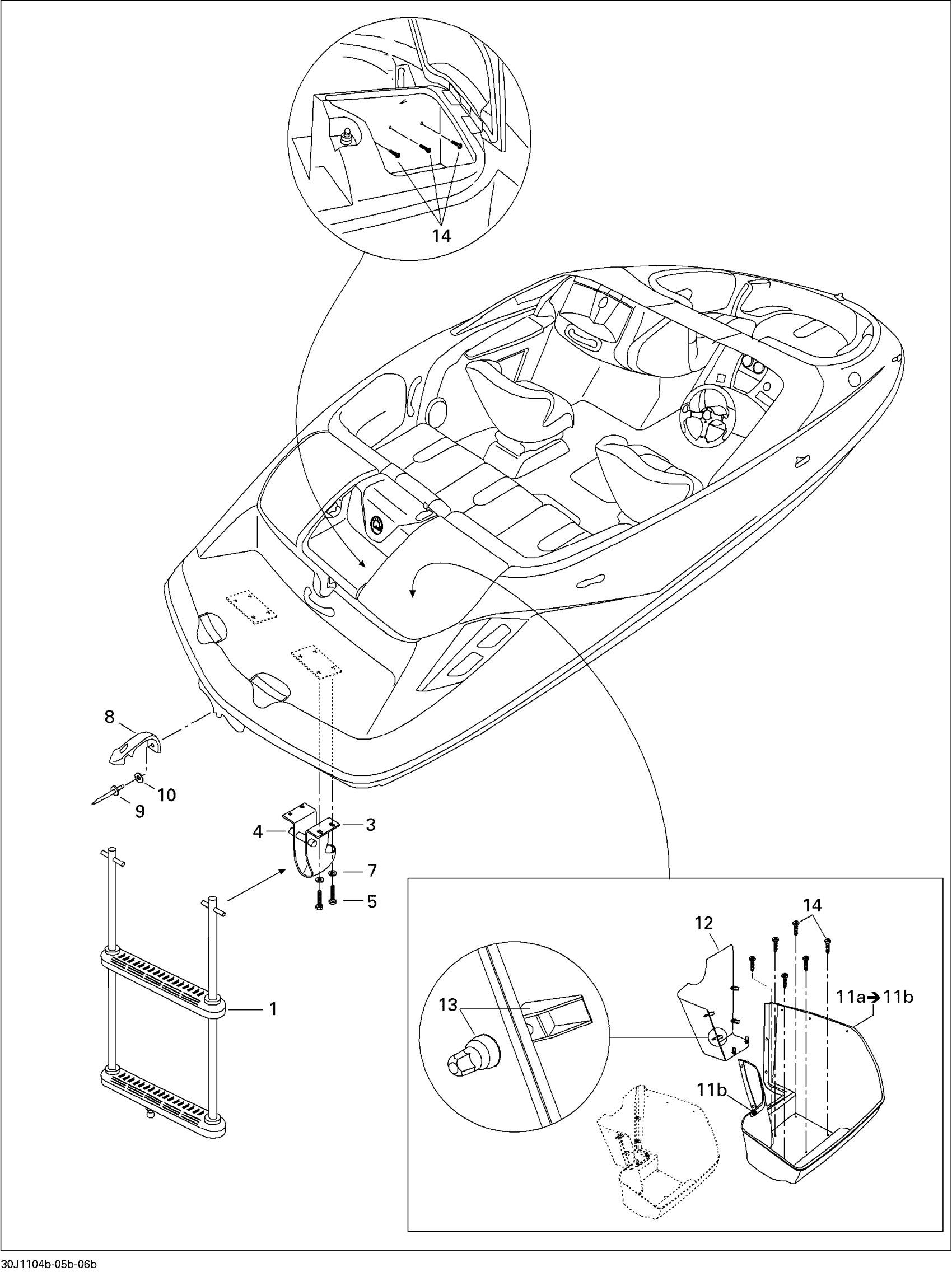

Sea-doo 180 Challenger 215, 2011 Lower Hull And Ladder Diagram

#

Description

Price

1

LADDER, 2 STEPS - Call your local BRP dealership

204061384

Unavailable

3

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

4

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.17

7

Lock Washer Helical M6

234161601

$0.92

8

Hood Latch

570027100

$9.46

9

Pop Rivet 3/16"

293150013

$1.11

10

Flat Washer 5 mm, Stainless

234052600

$0.64

11a

REAR STORAGE BIN - Call your local BRP dealership | Includes 6 to 7

292800054

Unavailable

11b

TRIM, BLACK, 7/16?, METER - Call your local BRP dealership

204072752

Unavailable

12

REAR STORAGE BIN PANEL - Call your local BRP dealership

292800056

Unavailable

13

LATCH ASS'Y - Call your local BRP dealership

204050309

Unavailable

14

Phillips Tapping Screw

204100058

$0.61
