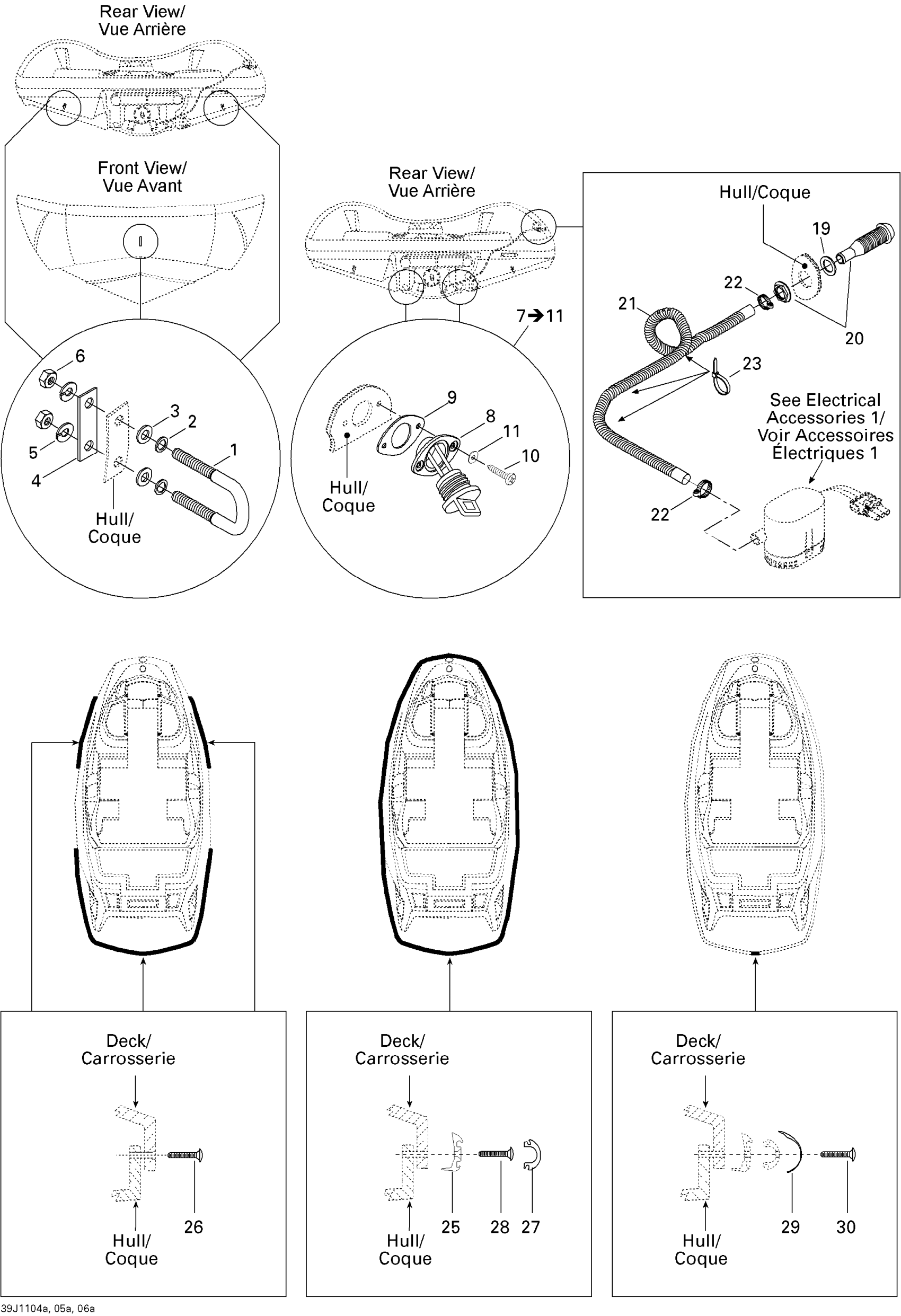

Sea-doo 180 Challenger 215, 2011 Hull 1 Diagram

#

Description
Price

1

U-Clamp

292000933

$32.47

2

Flat Washer M8.5 x 18

293050001

$1.29

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.46

6

Hex. Nut M8

232081600

$1.22

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Drain Plug

292000187

$10.21

9

GASKET - Call your local BRP dealership

293250030

Unavailable

10

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

11

Flat Washer 4 mm, Stainless

234041600

$0.91

19

Fitting

293710162

$11.87

20

GASKET - Call your local BRP dealership

293250254

Unavailable

21

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

22

Tridon Clamp

293650016

$8.57

23

Tie-Rap 180 mm

414115200

$0.09

25

BUMPER, BLACK - Call your local BRP dealership

262000198

Unavailable

26

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

27

RUBRAIL INSERT 50FT - Call your local BRP dealership

204061394

Unavailable

28

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

29

BUMPER COVER, BLACK - Call your local BRP dealership

204050780

Unavailable

30

Phillips Tapping Screw M4.2 X 32

209943260

$1.40
