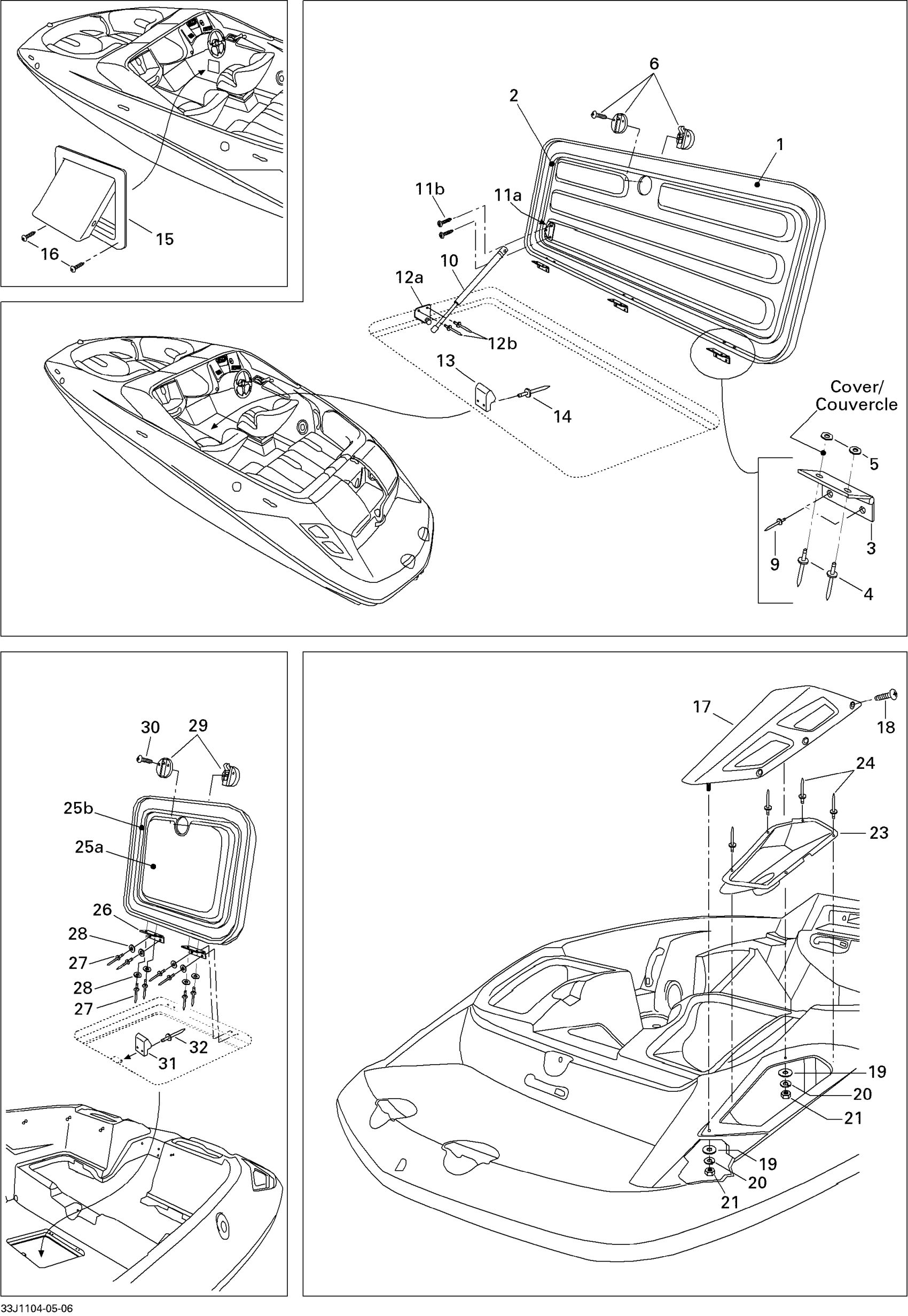

Sea-doo 180 Challenger 215, 2011 Central Cover And Accessories Diagram

#

Description
Price

1

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Avdel Rivet 3/16"

293150037

$0.56

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH ASS'Y - Call your local BRP dealership

204073347

Unavailable

9

Pop Rivet 3/16"

293150088

$0.99

10

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

11a

Shock Bracket

204073074

$27.99

11b

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

12a

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

12b

Pop Rivet 3/16"

293150043

$2.09

13

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

14

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

15

ACCESS DOOR - Call your local BRP dealership

204072447

Unavailable

16

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

17

VENT COVER ASS'Y, PORT SIDE - Call your local BRP dealership | Port Side

204072292

Unavailable

17

VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Starboard

204072293

Unavailable

18

PHILLIPS SCREW 1 - Call your local BRP dealership

204100154

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

20

Lock Washer 1/4”

211200025

$1.29

21

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

23

VENT INLET, PORT SIDE - Call your local BRP dealership | Port Side

291003407

Unavailable

23

VENT - INLET / STBD - Call your local BRP dealership | Starboard This part replaces 204072231.

204073836

Unavailable

24

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

25a

ACCESS DOOR - Call your local BRP dealership

204072592

Unavailable

25b

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

26

HINGE - Call your local BRP dealership

204072601

Unavailable

27

Avdel Rivet 3/16"

293150037

$0.56

28

Flat Washer M5, Stainless

234051600

$0.77

29

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

30

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

31

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

32

Pop Rivet 3/16"

293150088

$0.99
