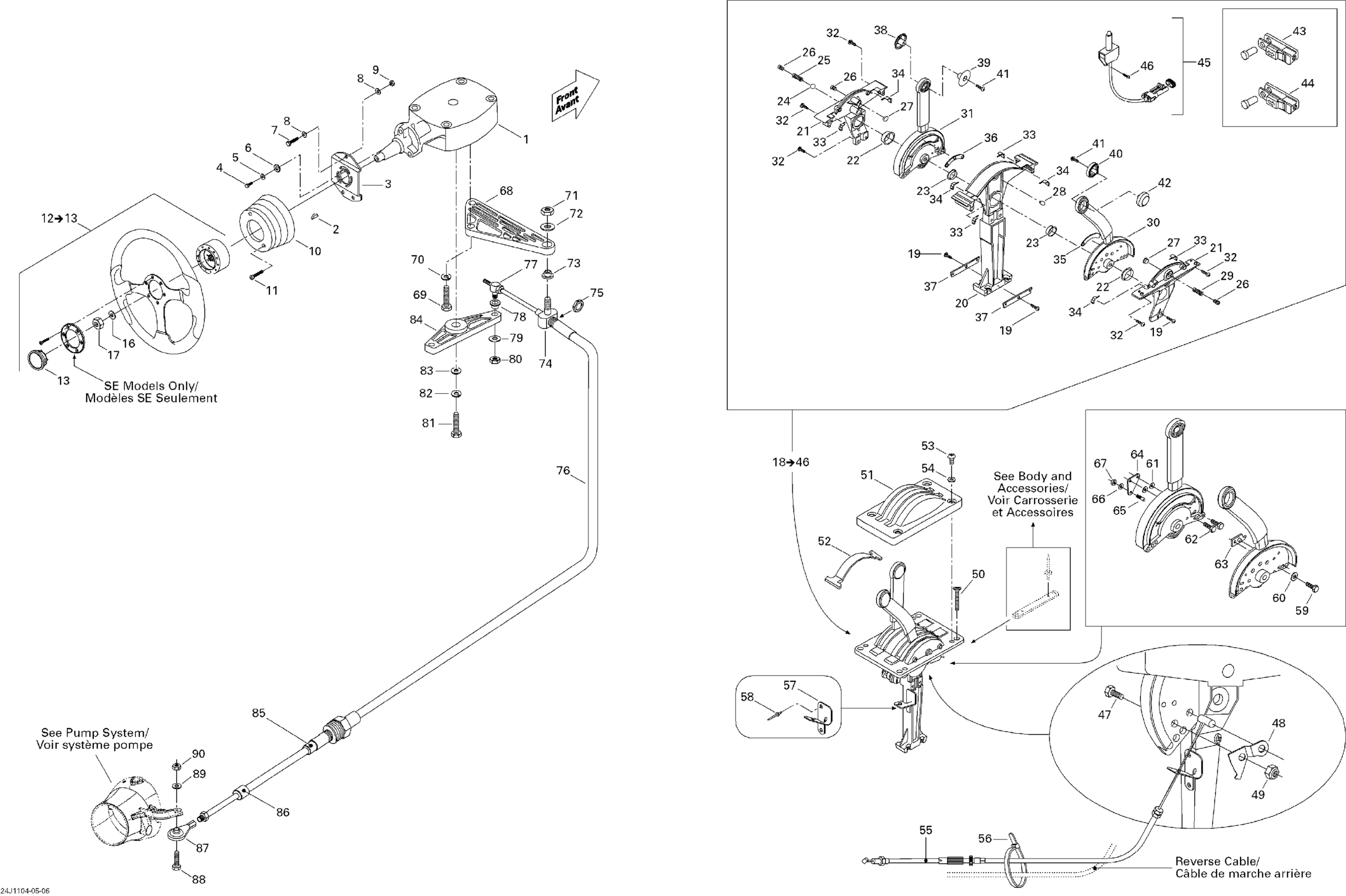

Sea-doo 180 Challenger 215, 2011 07- Steering Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

3

Support

277000383

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Serrated Lock Washer 8 mm

234481608

$1.15

7

Hex. Screw M6 X 40

207164060

$3.38

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

11

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

12

STEERING WHEEL ASS'Y - Call your local BRP dealership | STD

204390588

Unavailable

13

CENTER CAP - Call your local BRP dealership | STD

204390563

Unavailable

16

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

17

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

18

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

19

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

BUSHING - Call your local BRP dealership

277000397

Unavailable

23

BUSHING - Call your local BRP dealership

277000398

Unavailable

24

BALL - Call your local BRP dealership

277000399

Unavailable

25

SPRING - Call your local BRP dealership

277000400

Unavailable

26

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

27

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

28

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

29

SPRING - Call your local BRP dealership

277000401

Unavailable

30

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

31

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

32

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

LH Water Seal

277000424

Unavailable

35

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

36

Shift Lever Spacer

277000408

Unavailable

37

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

38

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

39

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

40

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

41

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

42

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

43

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

44

CLEVIS L25 - Call your local BRP dealership

204390225

Unavailable

45

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

46

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

47

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

48

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

49

Hex. Elastic Nut M5 | X

232551600

$1.15

50

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

51

PLATE CONTROL - Call your local BRP dealership

277001759

Unavailable

52

CONTROL PLATE INSERT - Call your local BRP dealership

277001760

Unavailable

53

Phillips Screw M4 X 10

208641060

$1.01

54

Flat Washer 4 mm

234040600

$0.55

55

RH THROTTLE CABLE - Call your local BRP dealership

204390576

Unavailable

56

Tie-Rap 180 mm

414115200

$0.11

57

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

58

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

59

Hex. Cap Screw M6 X 12

207161260

$1.26

60

Lock Washer 1/4”

211200025

$1.29

61

Lock Washer 1/4”

211200025

$1.29

62

Hex. Cap Screw M6 X 12

207161260

$1.26

63

REVERSE CATCH - Call your local BRP dealership

204390373

Unavailable

64

STOP-REVERSE - Call your local BRP dealership

204390369

Unavailable

65

REVERSE PIN - Call your local BRP dealership

204390370

Unavailable

66

Lock Washer 1/4”

211200025

$1.29

67

Hex. Elastic Stop Nut M6

232561600

$1.15

68

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

69

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

70

Lock Washer 1/4”

211200025

$1.29

71

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

72

Flat Washer 10 mm, Stainless

234001600

$1.15

73

Flanged Bushing

293350014

$12.99

74

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

75

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

76

CABLE STEERING - Call your local BRP dealership

277001766

Unavailable

77

PIVOT - Call your local BRP dealership

277000456

Unavailable

78

BUSHING - Call your local BRP dealership

204130095

Unavailable

79

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

80

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

81

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

82

Lock Washer 1/4”

211200025

$1.29

83

Flat Washer M6, Stainless

234062600

$0.77

84

ARM - Call your local BRP dealership

204390040

Unavailable

85

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

86

Terminal Wiper

277000441

$11.99

87

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

88

Hex. Screw M6 X 35

207063560

$2.22

89

Stainless Flat Washer M6

234061600

$0.33

90

Hex. Elastic Stop Nut M6

232561600

$1.15
