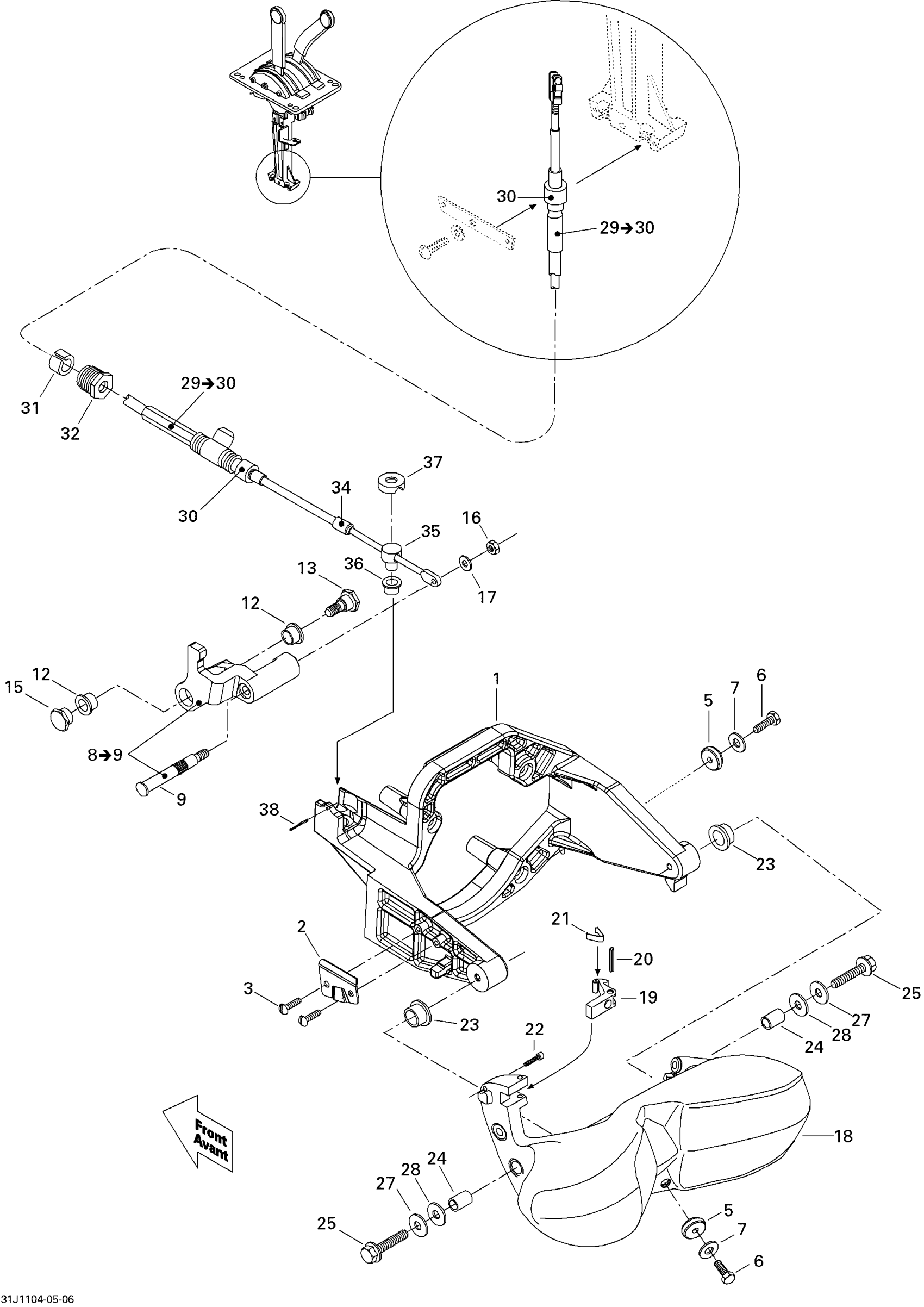

Sea-doo 180 Challenger 215, 2011 05- Reverse Diagram
#
Description
Price
1
Reverse Gate Support
204170214
$189.99
2
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
3
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
5
Anode Zinc
271001813
$18.99
6
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
7
Stainless Flat Washer M6
234061600
$0.33
8
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
$224.99
9
PIN - Call your local BRP dealership
204130037
Unavailable
12
BUSHING - Call your local BRP dealership
204130036
Unavailable
13
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
15
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
16
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
17
Flat Washer 5 mm, Stainless
234052600
$0.77
18
Reverse Gate
204170213
$289.99
19
HOOK - Call your local BRP dealership
204170220
Unavailable
20
Pin
211400009
$1.68
21
Spring
271000431
$15.49
22
Socket Head Screw
204100127
$3.70
23
Bushing
204130237
$12.11
24
Sleeve
204170177
$33.99
25
Hex. Flange Screw 18 X 1.56
204100163
$9.09
27
Flat Washer 8 mm, Stainless
234082600
$2.43
28
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
29
Reverse Cable
268000109
$148.49
30
End Piece
277001583
$14.49
31
Slip Grommet - Call your local BRP dealership
204130420
Unavailable
32
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
34
Wiper Rod
277001582
$11.11
35
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
36
Bushing
204130237
$12.11
37
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
38
Cotter Pin
204130040
$2.85
