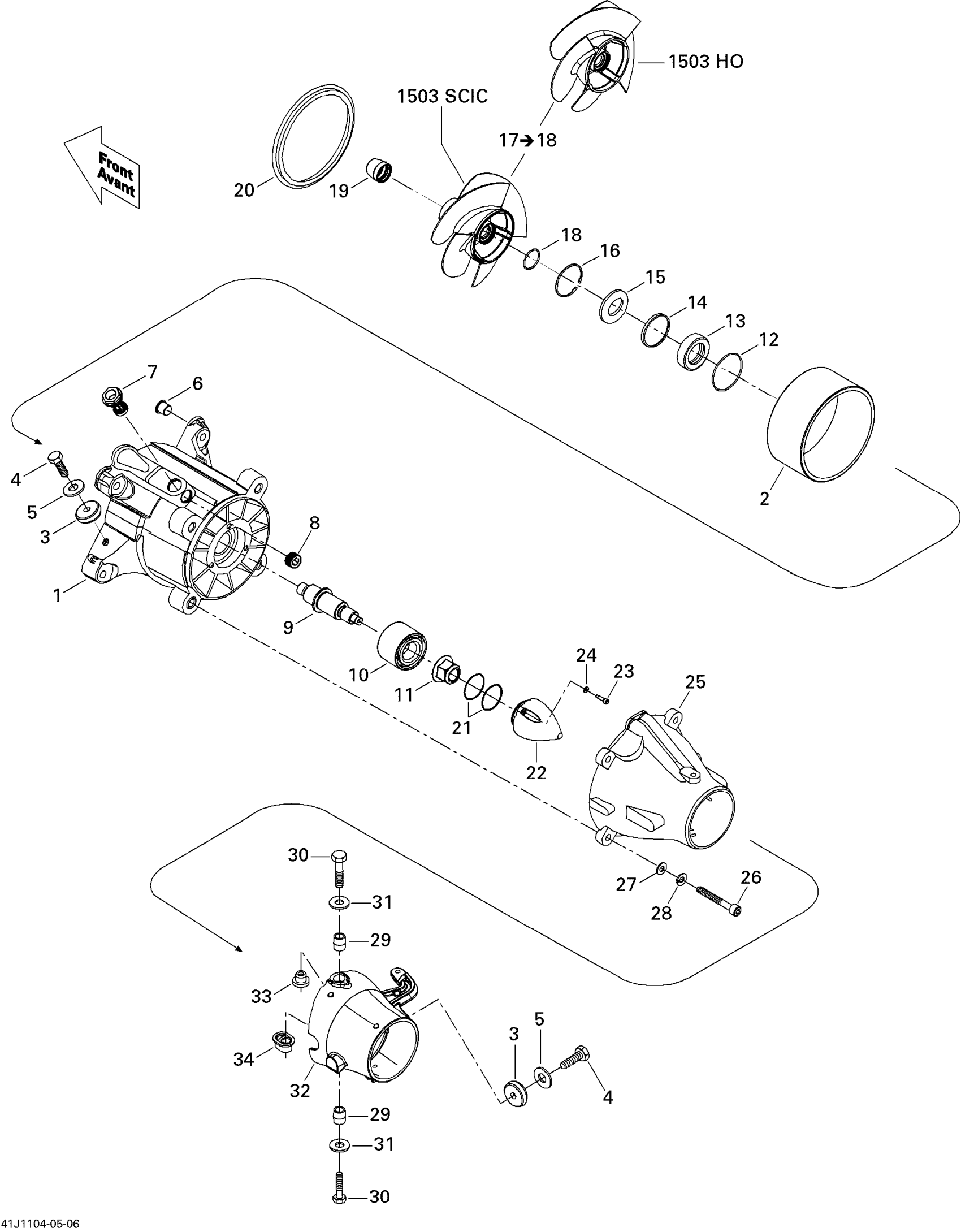

Sea-doo 180 Challenger 215, 2011 05- Pump Diagram
#
Description
Price
1
Housing Impeller Anodized This part replaces 267000417.
271002161
$329.99
2
Wear Ring
267000372
$84.99
3
Anode Zinc
271001813
$18.99
4
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
5
Stainless Flat Washer M6
234061600
$0.33
6
Bushing
267000093
$9.59
7
Plug | Includes 370z to 370z1
267000282
$19.49
8
Black, Plastic Plug
267000469
$7.59
9
Impeller Shaft
267000388
$116.49
10
Angled Bearing This part replaces 267000030.
267000900
$80.99
11
Elastic Flange Nut M20
250100104
$12.66
12
O-Ring
293300090
$7.20
13
Seal
271002071
$33.99
14
Spacer
271001393
$8.59
15
Oil Seal
293200089
$19.99
16
Circlip
293370038
$8.79
17
STANLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership | Includes 195 to 195a
267000653
Unavailable
18
O-Ring
293300114
$15.89
19
Guard
271002228
$12.99
20
Neoprene Seal
293200087
$12.63
21
O-Ring
293300086
$3.59
22
Impeller Cover
267000428
$18.49
23
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
24
Stainless Flat Washer M6
234061600
$0.33
25
VENTURI, BLACK - Call your local BRP dealership
204160306
Unavailable
26
Socket Head Screw M8 X 100, Scotch Grip
250000464
$7.51
27
Flat Washer M8.5 x 18
293050001
$3.07
28
Lock Washer 8 mm, Stainless
234181601
$0.55
29
Sleeve
271001816
$14.99
30
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
31
Flat Washer M8.5 x 18
293050001
$3.07
32
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.
462125
Unavailable
33
Venturi Bushing
293900001
$7.62
34
Plastic Bushing
293900010
$9.59
