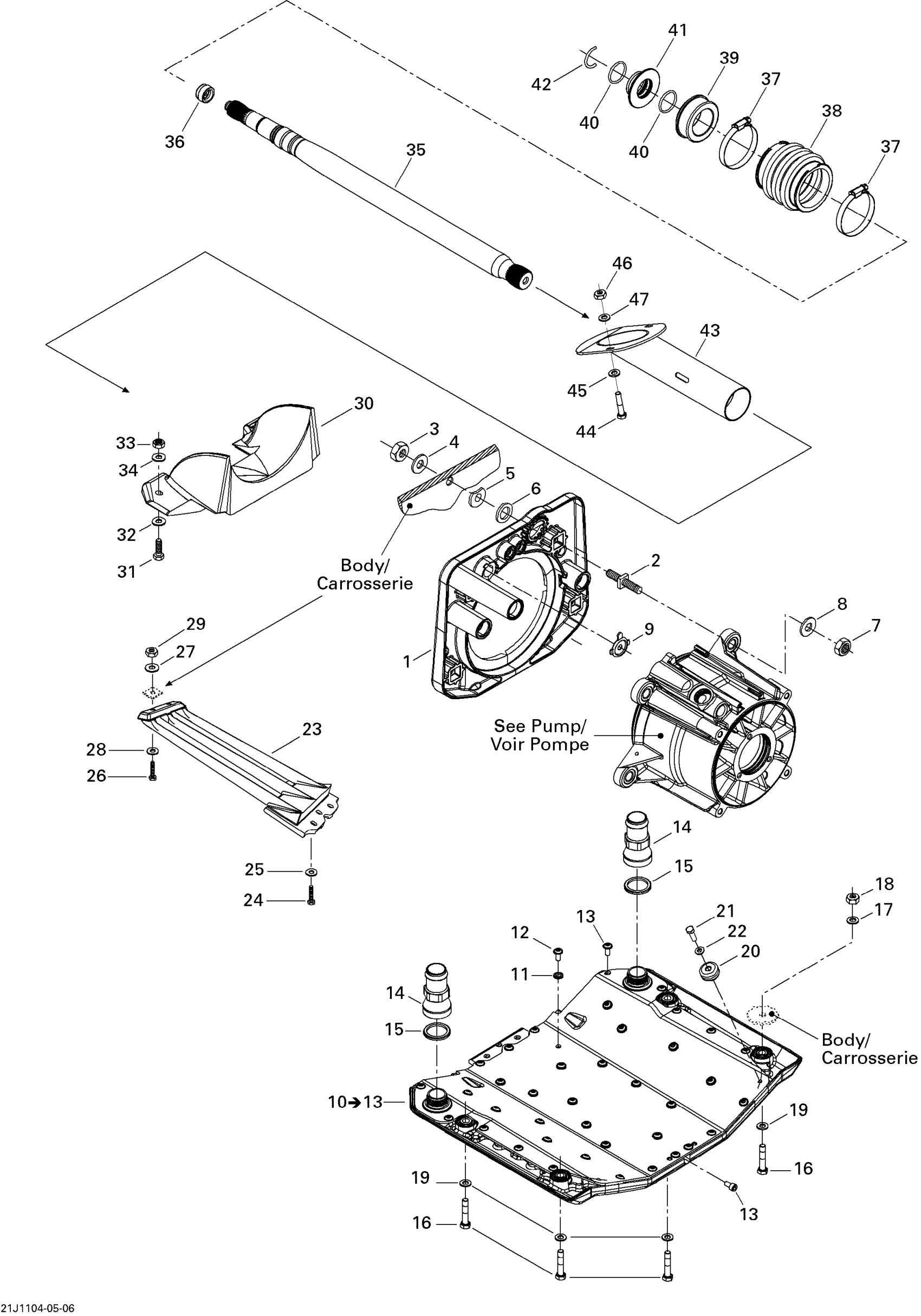

Sea-doo 180 Challenger 215, 2011 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120333

Unavailable

2

Square Stud

250300022

$20.99

3

Elastic Stop Nut M10, Brass

232501200

$2.64

4

Flat Washer 10 mm, Stainless

234002600

$2.22

5

Shim 0.3 mm

272000053

$11.49

6

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

7

Elastic Stop Nut M10, Brass

232501200

$2.64

8

Flat Washer

211200051

$1.68

9

Reducer This part replaces 291001887.

291004649

$17.49

10

RIDING PLATE - Call your local BRP dealership | Includes 10 to 13

204120367

Unavailable

11

Sealing Washer

250200114

$4.44

12

Torx Screw M6 X 14

250000384

$7.51

13

Socket Drain Plug M6 X 12

250500005

$16.49

14

Straight Plastic Fitting

293710111

$8.47

15

O-Ring

293300121

$8.32

16

Hex. Screw M8 X 40

207084060

$2.22

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Elastic Nut M8

232581600

$1.48

19

Stainless, Flat Washer 8 mm

234081600

$0.55

20

Anode Zinc

271001813

$18.99

21

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

22

Stainless Flat Washer M6

234061600

$0.33

23

PUMP GRATE - Call your local BRP dealership

204120375

Unavailable

24

Hex. Screw M6 X 16

207161660

$1.59

25

Stainless Flat Washer M6

234061600

$0.33

26

Hex. Screw M8 X 40

207184060

$2.22

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Stainless, Flat Washer 8 mm

234081600

$0.55

29

Hex. Elastic Nut M8

232581600

$1.48

30

INLET RAMP - Call your local BRP dealership

204120370

Unavailable

31

Hex. Screw M8 X 40

207084060

$2.22

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Hex. Elastic Nut M8

232581600

$1.48

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Drive Shaft

271001550

$402.49

36

Drive Shaft Plug

272000173

$8.68

37

Norma Clamp

293650079

$11.60

38

Bellow This part replaces 271001422.

271001933

$23.49

39

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

40

O-Ring

293300107

$1.01

41

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

42

C-Clip

271001577

$3.27

43

SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001716.

271001836

Unavailable

44

Phillips Screw M5 X 35

208653560

$2.22

45

Flat Washer M5, Stainless

234051600

$0.77

46

Hex. Elastic Nut M5 | X

232551600

$1.15

47

Flat Washer 5 mm, Stainless

234052600

$0.77
