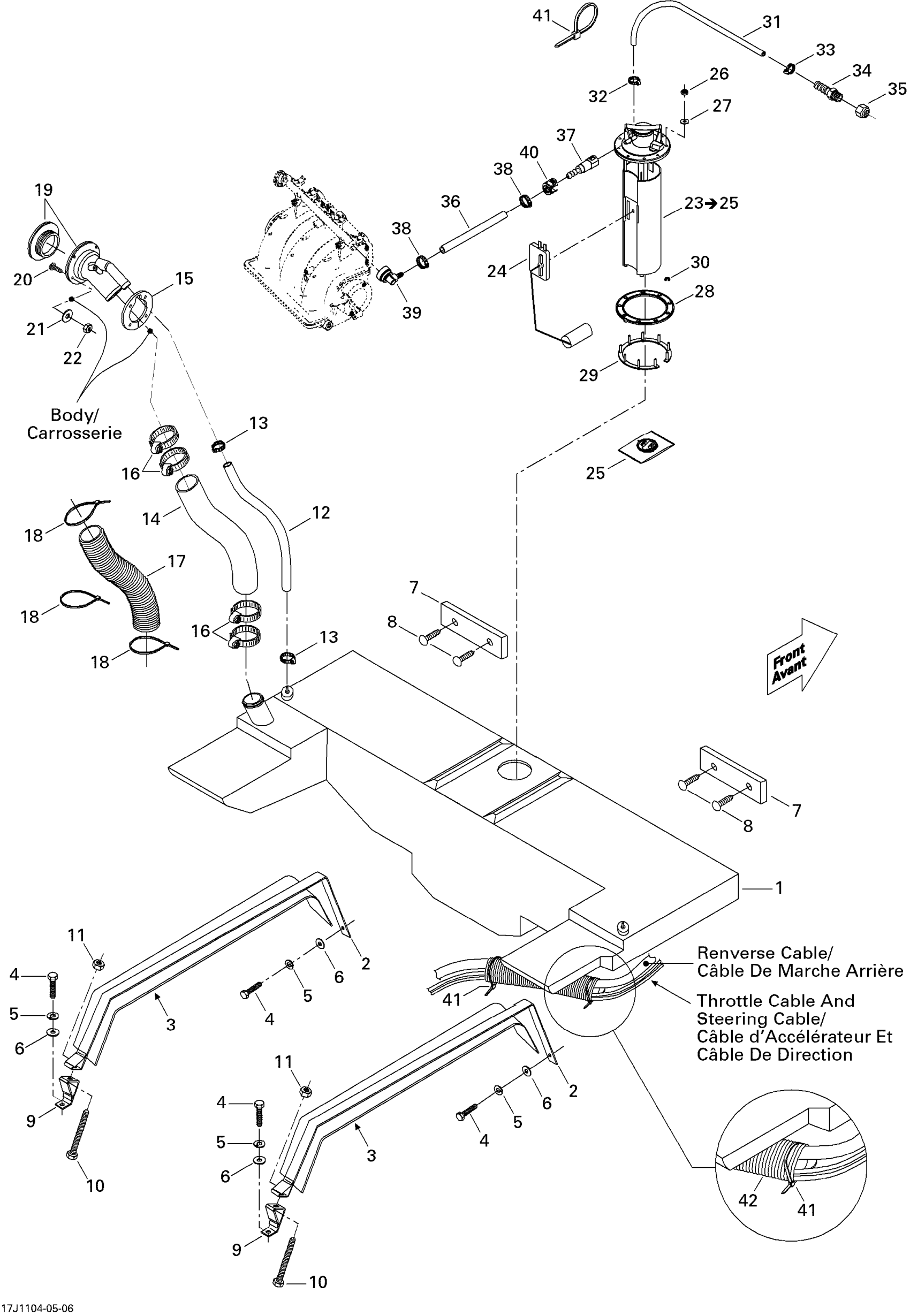

Sea-doo 180 Challenger 215, 2011 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership

204560405

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

8

Black, Dart

293730006

$0.99

9

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.48

12

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

13

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

14

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

15

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

16

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

17

SPLIT CONDUIT - Call your local BRP dealership

204130408

Unavailable

18

Tie Wrap 368 mm

293750008

$1.04

19

FILLER NECK - Call your local BRP dealership

275500800

Unavailable

20

Phillips Screw M4 X 35

208643560

Unavailable

21

Flat Washer 4 mm

234040600

$0.55

22

Elastic Stop Nut M4

232541600

$1.15

23

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

24

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

25

Fuel Filter, Bosch

219700368

$39.99

26

Elastic Stop Nut 5 mm

232551200

$1.47

27

Flat Washer 5 mm, Stainless

234052400

$2.85

28

Gasket

293250088

$14.99

29

C-Ring, 9 Studs

275500679

$77.49

30

Circlip 5 mm

293370002

$5.50

31

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

32

Tridon Gear Clamp

293650170

$1.99

33

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

34

COUPLER - Call your local BRP dealership

204560265

Unavailable

35

Pipe Cap

204560263

Unavailable

36

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

37

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

38

Norma Clamp

293650084

$4.12

39

Elbow Fitting 90°

293710105

$14.22

40

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

41

Tie Wrap 142 mm

293750002

$1.25

42

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable
