Description

Price

1

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

Unavailable

2

Temperature Sensor

278002895

$39.99

4

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

5

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

7

Hose | Without Catalyst

274001348

$24.49

8

Gear Clamp This part replaces 293650281.

293650202

$15.88

9

Tridon Clamp

293650179

$11.49

10

EXHAUST HOSE - Call your local BRP dealership | Without Catalyst

204340436

Unavailable

11

RH Resonator

274001045

$217.49

12

Exhaust Hose This part replaces 204340437.

0461589

$16.88

13

Exhaust Hose, Outlet

274001389

$29.49

14

GASKET - Call your local BRP dealership

293250041

Unavailable

15

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

16

Nut 72 mm

274000224

$16.34

18

Seal Tray 1000Mm Long

219704368

$13.99

19

Retainer Strap

293850097

$11.64

20

STRAP - Call your local BRP dealership

293850022

Unavailable

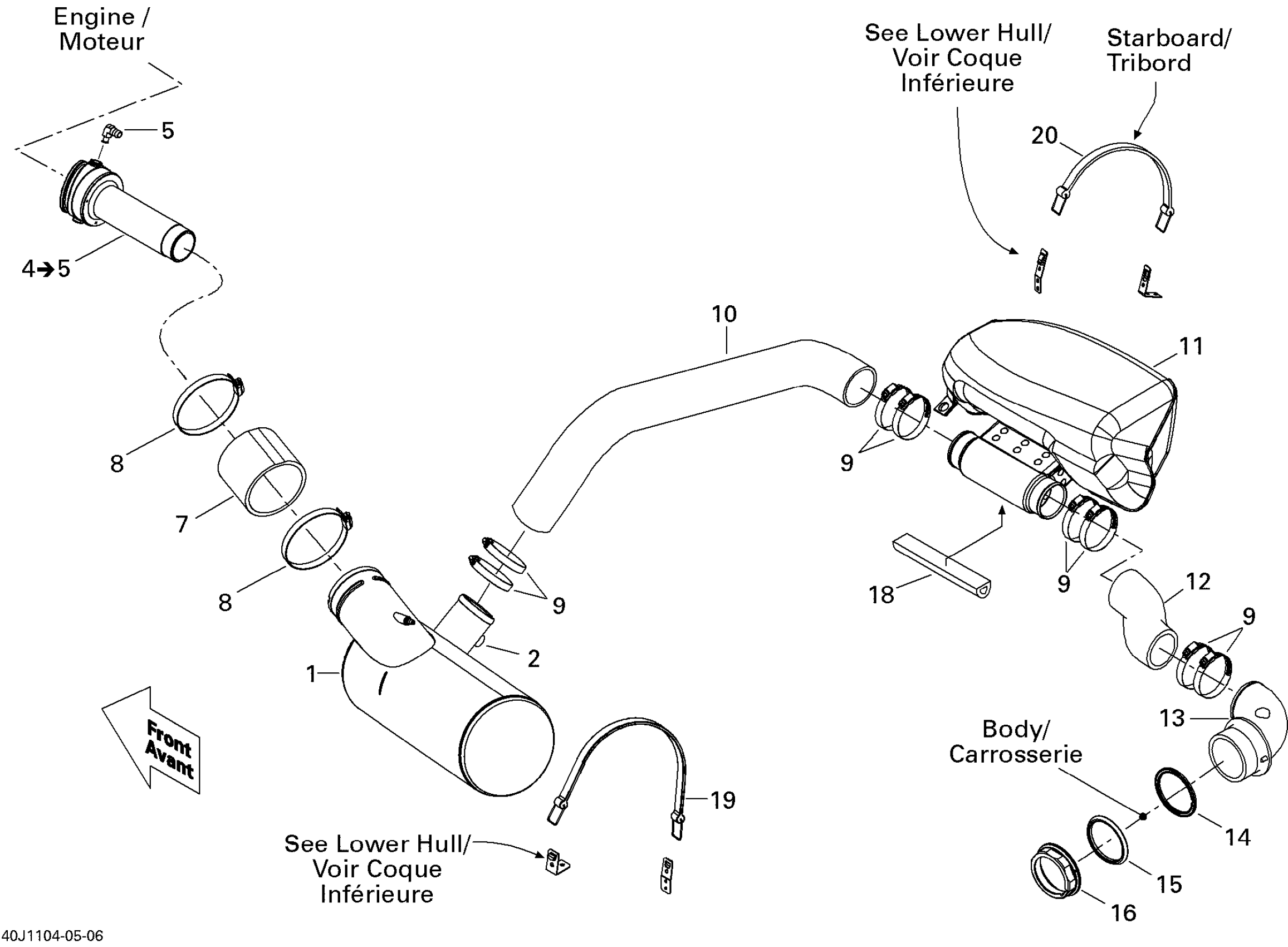

Sea-doo 180 Challenger 215, 2011 01- Exhaust System Diagram

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

Temperature Sensor

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

Elbow Fitting 90° | Without Catalyst

Hose | Without Catalyst

Gear Clamp This part replaces 293650281.

Tridon Clamp

EXHAUST HOSE - Call your local BRP dealership | Without Catalyst

RH Resonator

Exhaust Hose This part replaces 204340437.

Exhaust Hose, Outlet

GASKET - Call your local BRP dealership

STABILIZING WASHER - Call your local BRP dealership

Nut 72 mm

Seal Tray 1000Mm Long

Retainer Strap

STRAP - Call your local BRP dealership
