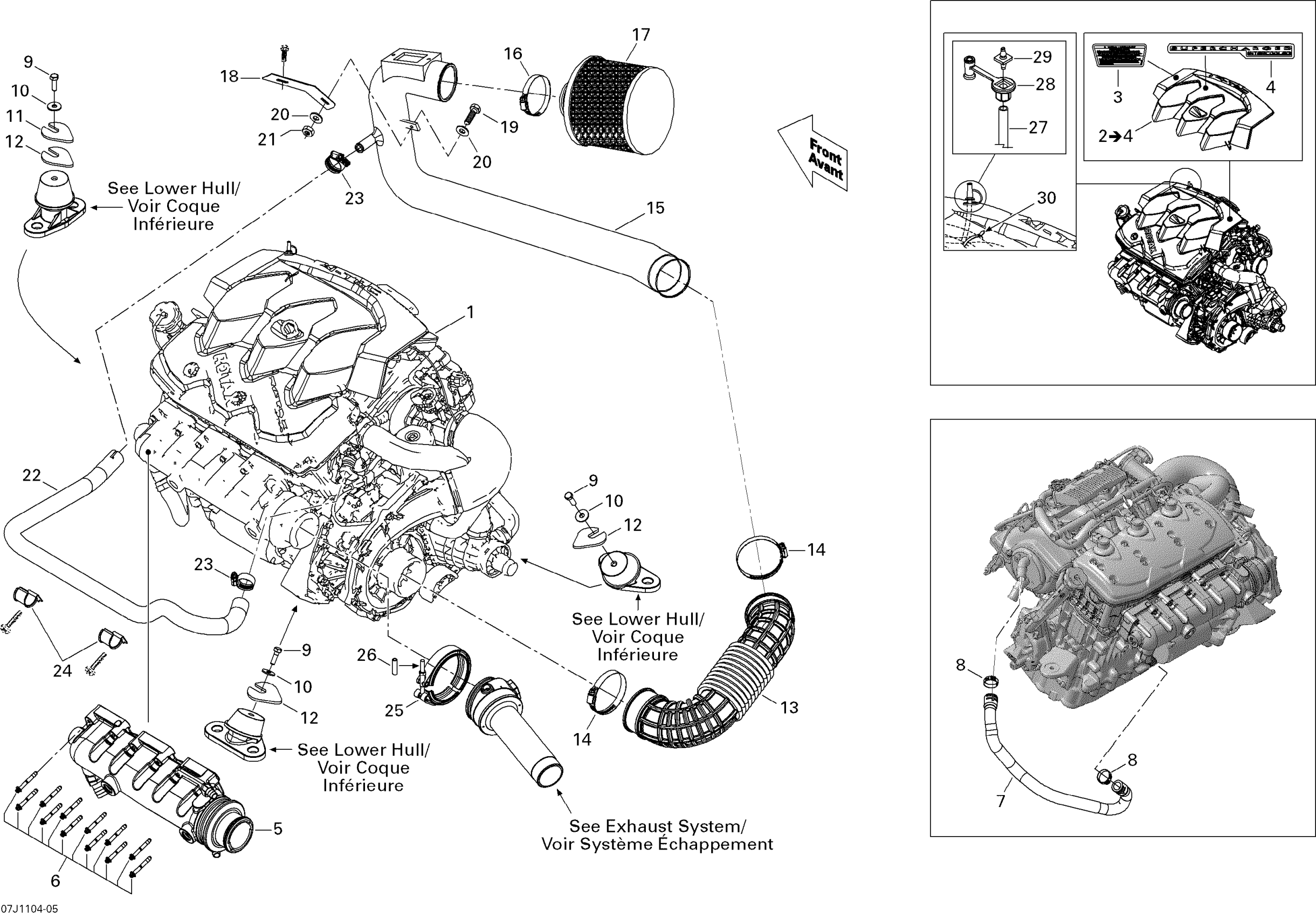

Sea-doo 180 Challenger 215, 2011 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

56

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

6

Torx Flange Screw M6 X 45

420641198

$4.12

7

FORMED HOSE - Call your local BRP dealership

420822173

Unavailable

8

Crimp Clamp

293650217

$8.47

9

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

12

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

13

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

14

Tridon Clamp

293650179

$11.49

15

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

16

Tridon Clamp

293650179

$11.49

17

Air Filter This part replaces 204250436.

204250466

$137.99

18

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

19

Hex. Screw M6 X 30

207163060

$1.48

20

Flat Washer, Stainless/Neoprene

211200055

$0.73

21

Hex. Elastic Stop Nut M6

232561600

$1.15

22

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

23

Tridon Gear Clamp

293650051

$4.19

24

Retainer

275500664

$14.75

25

Exhaust Clamp

274001417

$58.99

26

Polyurethane Hose 10000Mm Long

219704410

$56.99

27

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

28

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

29

CONNECTOR - Call your local BRP dealership

293710107

$1.09

30

Tie Wrap 142 mm

293750002

$1.25
