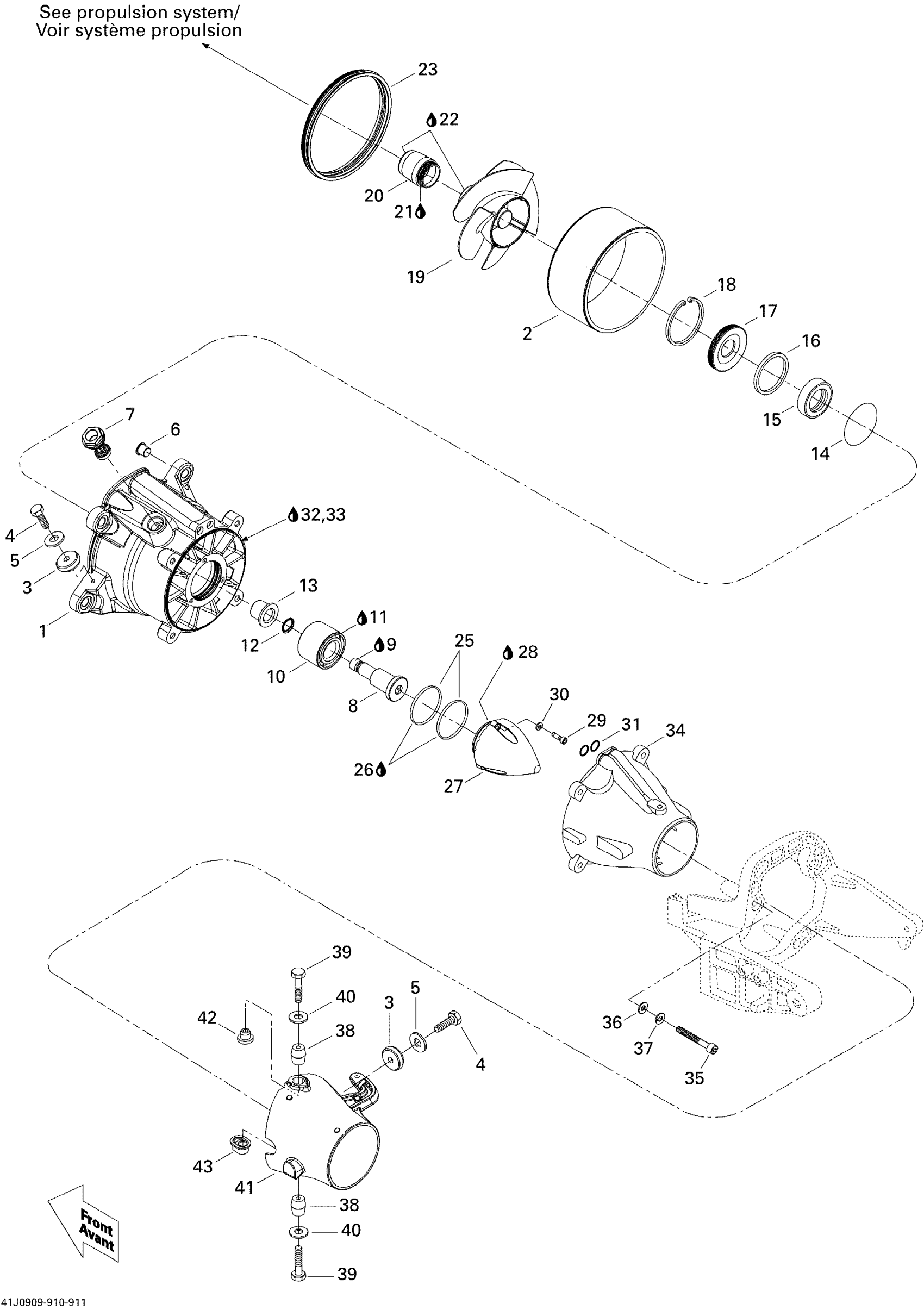

Sea-doo 180 Challenger, 1 x 215 SCIC, 2009 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000372

$84.99

3

Anode Zinc

271001813

$18.99

4

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

5

Stainless Flat Washer M6

234061600

$0.33

6

Bushing

267000093

$9.59

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Impeller Shaft

267000054

$116.49

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

Angled Bearing This part replaces 267000030.

267000900

$80.99

11

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

12

O-Ring

505070315

$2.85

13

Shaft Sleeve

267000318

$134.99

14

O-Ring

293300090

$7.20

15

Seal

271002071

$33.99

16

Spacer

271001393

$8.59

17

Oil Seal

293200089

$19.99

18

Circlip

293370038

$8.79

19

Impeller Ass'y This part replaces 267000250.

267000699

$391.99

20

Guard

271002228

$12.99

21

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

22

Synthetic Grease, 400 G

293550010

Unavailable

23

Neoprene Seal

293200087

$12.63

25

O-Ring

293300086

$3.59

26

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

27

Impeller Cover

267000262

$21.99

28

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

29

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

30

Stainless Flat Washer M6

234061600

$0.33

31

O-Ring

293300013

$8.18

32

Was 293800041 Loctite Primer 7649

219704458

$39.99

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

34

VENTURI, BLACK - Call your local BRP dealership

204160306

Unavailable

35

Socket Screw M8 X 110, Scotch Grip

231181060

$9.89

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Lock Washer 8 mm, Stainless

234181601

$0.55

38

Sleeve

271001816

$14.99

39

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

40

Flat Washer M8.5 x 18

293050001

$3.07

41

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

42

Venturi Bushing

293900001

$7.62

43

Plastic Bushing

293900010

$9.59
