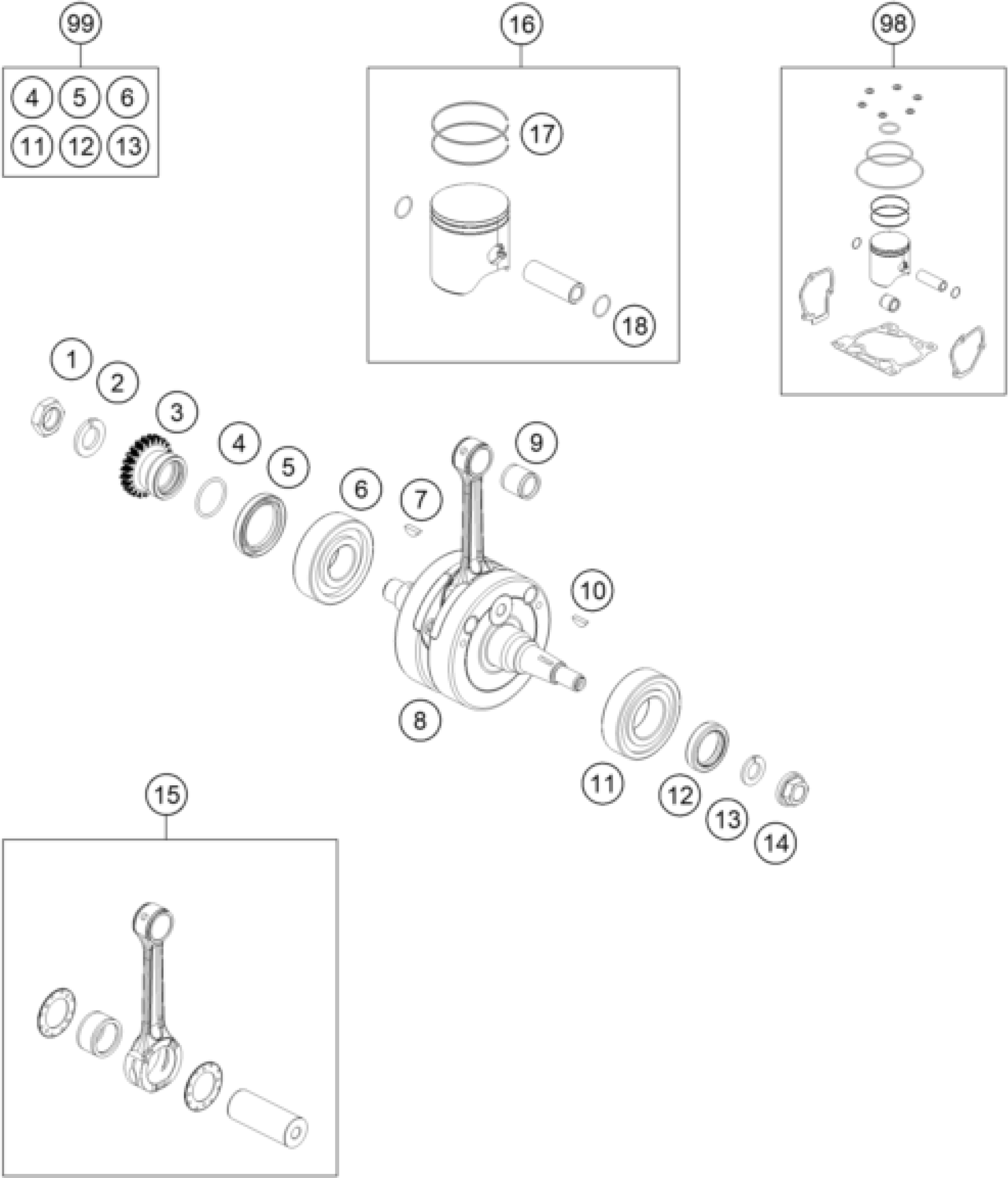

KTM 150 XC-W TPI 2021 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

HEXAGON NUT M 16 X 1,5 - L/S

50330029000

$10.00

2

LOCKING RING VSK 16

50230029016

$2.05

3

gear primary drive

50532023023

$108.73

4

O-RING 25,00X2,00 NBR 70

0770250020

$3.08

5

Shaft seal ring 32x45x6.5

0760324566

$12.33

6

BALL BEARING 6305 JR2 CS36

0625063055

$43.19

7

woodruff key DIN 6888 4x5x13

0888040050

$4.11

8

Crankshaft

50530018000

$685.44

9

NEEDLE BEARING KBK 15X19X20

51030034000

$25.05

10

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

11

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

12

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

13

LOCKING RING VSK 12

50230029012

$2.05

14

Collar nut, M12x1, right

49030021100

$2.05

15

Connecting rod repair kit

50530015044

$298.54

16

Piston I cpl. 150 Enduro

51730007000 I

Unavailable

16

Piston II cpl. 150 Enduro

51730007000 II

Unavailable

17

PISTON RING SET 150

51630032044

$86.01

18

WIRE LOCK RING 15X1

50330074500

$2.05

98

Pistonkit I 150 Enduro

00050000269

Unavailable

98

Pistonkit II 150 Enduro

00050000270

Unavailable

99

CRANKSHAFT REP. KIT 125-200

00050002300

Unavailable
