CLUTCH

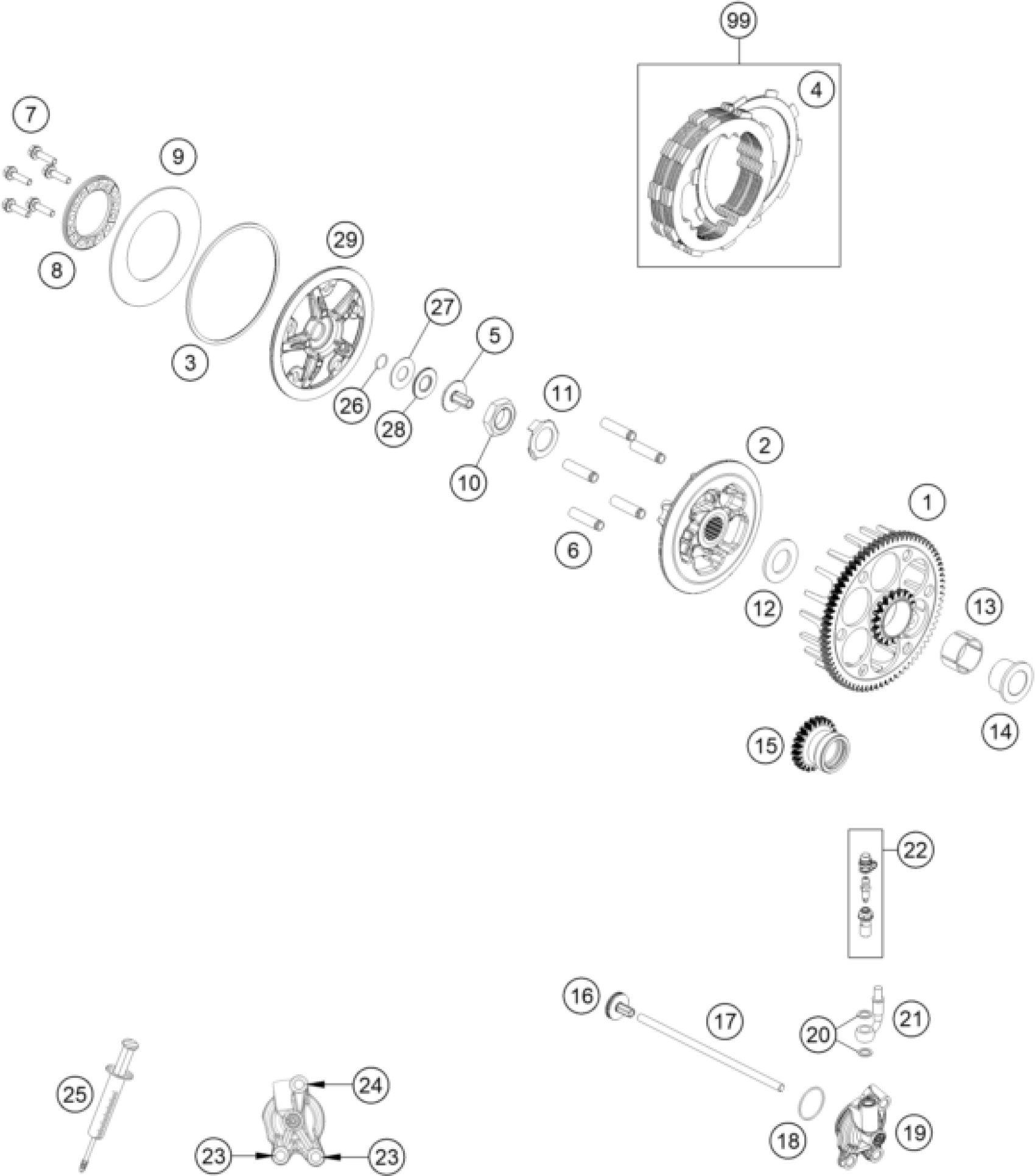

KTM 150 XC-W TPI 2021 CLUTCH Diagram
#
Description
Price
1
clutch basket SX
50532001073
$288.72
2
Inner clutch hub
50532002000
$34.03
3
Inner ring
50532013000
$6.91
4
Friction plate 2 mm
50532111000
$19.63
5
PRESSURE PIECE
78032057000
$26.08
6
Sleeve 7.95x31.65
50532004100
$3.08
7
HH collar screw M5x20 TX30
0025050206
$2.05
8
Spring plate
50532006000
$28.14
9
Clutch spring
50532005000
$11.02
10
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
11
locking plate
78132018100
$5.88
12
Supporting plate 20x36x2.5
50532017000
$9.62
13
Needle cage K263017
0405263017
$10.93
14
Collar 20x26x19,5
50532015000
$20.94
15
gear primary drive
50532023023
$108.73
16
PRESSURE PIECE CPL. 08
78032057044
$26.08
17
Push rod
50532054000
$10.93
18
O-ring 30x1.5 NBR 70
0770300015
$2.05
19
OUTPUT CYLINDER CPL.
79232061044
$187.65
20
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
21
CLUTCH PIPE
79232063000
$112.38
22
BLEEDER SCREW CPL.
79032064000
$30.38
23
HH collar screw M6x16 TX30
0025060166
$3.08
24
HH collar screw M6x25 TX30
0025060256
$3.08
25
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
26
CIRCLIP DIN7993-RW12
0993012000
$3.08
27
AXIAL WASHER AS1226 12X26X1
54637098200
$5.23
28
AXIAL NEEDLE BEARING AXK 1226
54637097200
$10.18
29
Preasure plate
50532003000
$24.77
99
Clutch disc pack
50532110033
$168.95
