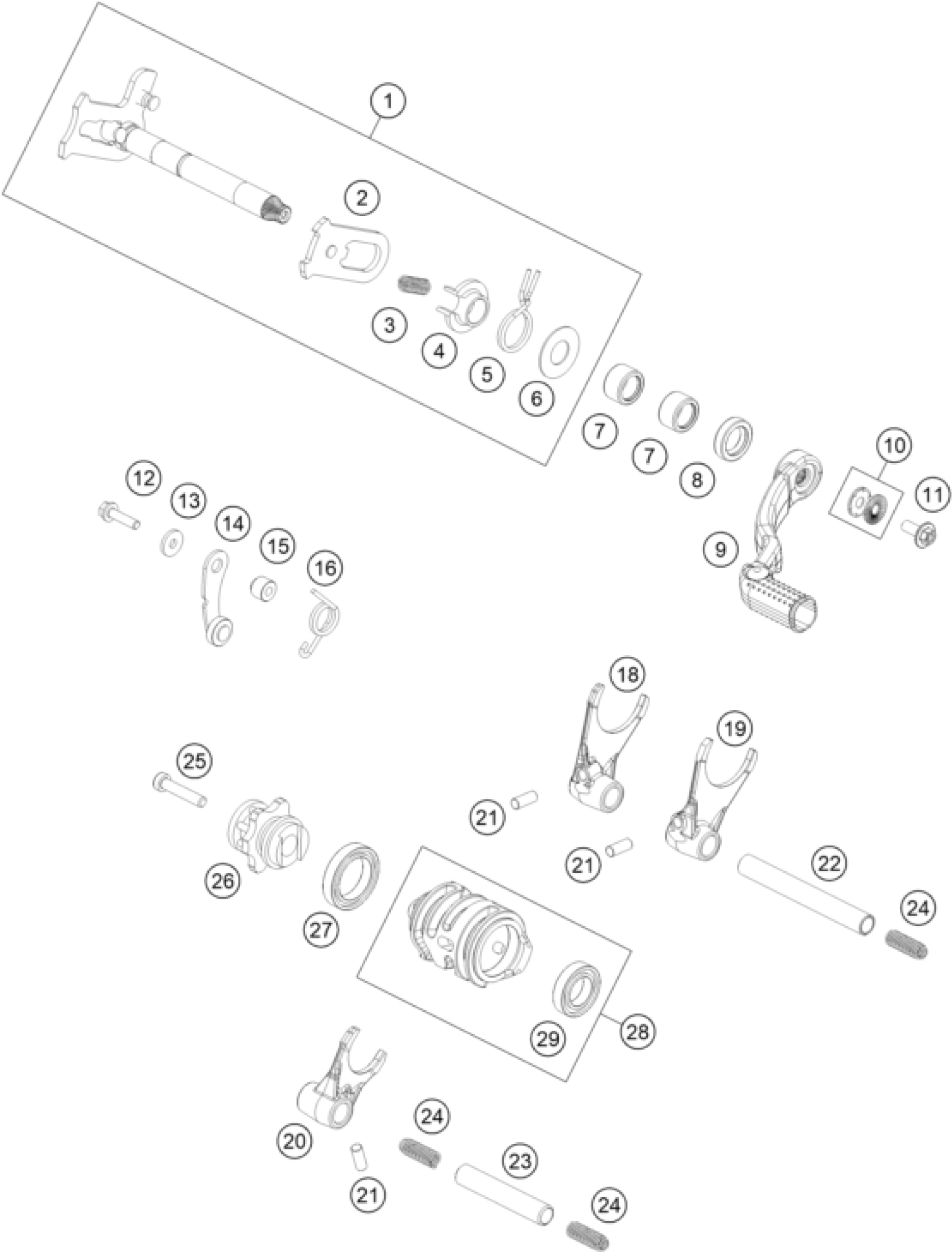

KTM 150 XC-W TPI 2020 SHIFTING MECHANISM Diagram

Shift shaft cmpl.

50534005044

$57.21

SLIDING PLATE

61234008044

$10.46

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

RETURN SPRING 03

54834014000

$4.11

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

SHIFT LEVER CPL.

50434031000

$92.65

PAIR NORDLOCK WASHER M6

50233041500

$4.11

HH collar screw M6x15 TX30

0024060156S

$2.05

HH collar screw M5x20 TX30

0025050206

$2.05

WASHER DIN7349-5X15X2

0349000050

$1.49

LOCATING LEVER CPL. 08

50334024144

$14.58

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

LOCKING LEVER SPRING 03

54834023000

$3.08

SHIFTING FORK 1ST/3RD GEAR

50434003000

$56.93

shifting fork 2/4 gear

50534002000

$38.51

SHIFTING FORK 5/6 GEAR

50434001000

$53.85

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

SHIFT. RAIL C. SHAFT 250/300

54834020000

$13.74

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

PRESSURE SPRING 0,9MM

58038023200

$4.11

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

Shift drum locating cpl.

50434015100

$29.16

BALL BEARING 61805 C3

0625618050

$43.94

Shift roller cpl.

50534012033

$45.62

BALL BEARING 6903 C4

0625069034

$20.37
