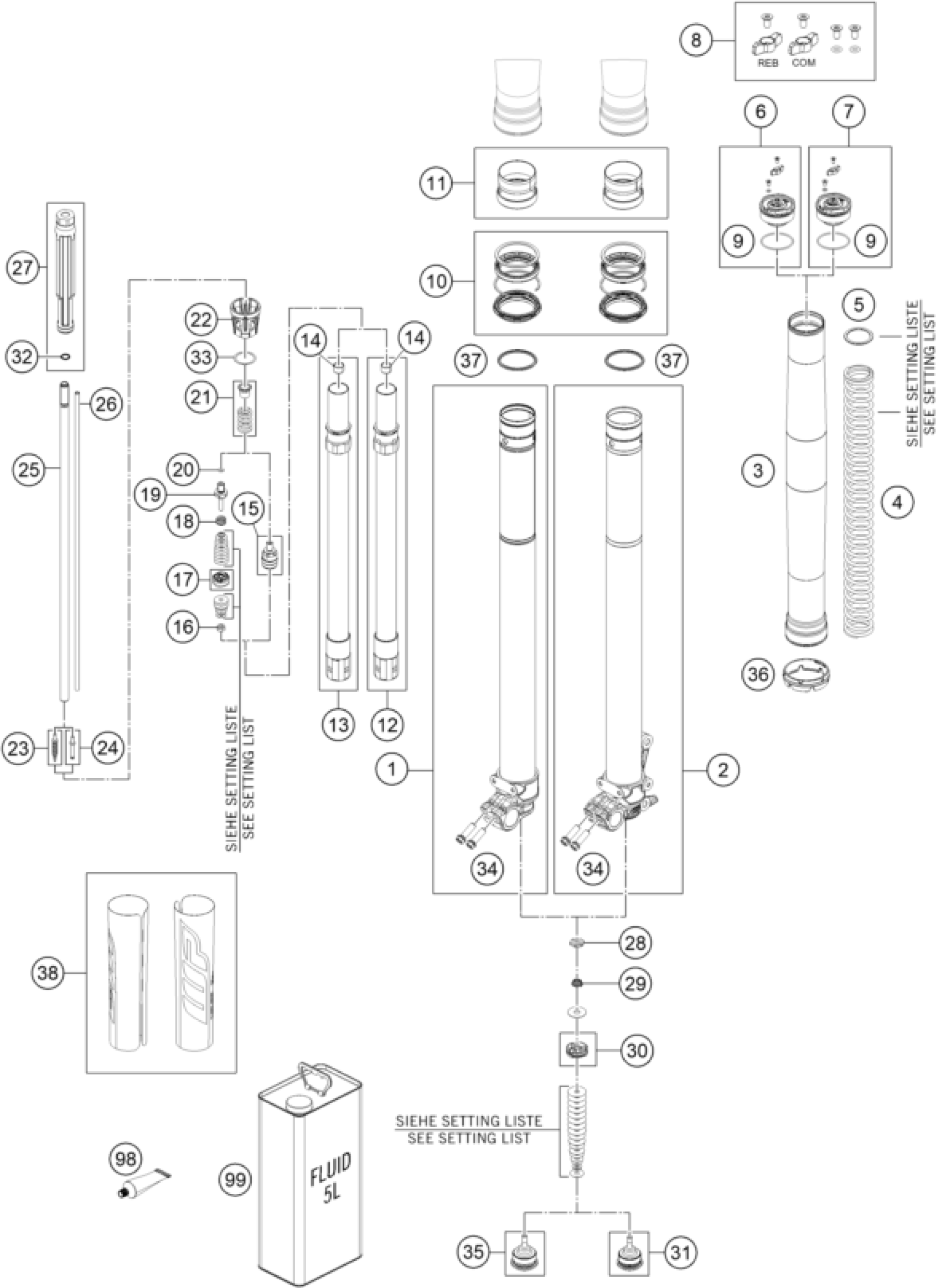

KTM 150 XC-W TPI 2020 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axleclamp OC right cpl. with t

48601933S1

$395.31

2

Axleclamp OC left cpl. with tu

48601932S1

$395.31

3

Fork outer tube 49,13x577 dt54

48601671

$257.40

4

SPRING 3,8N/MM SET D=4,9MM

91410099S

Unavailable

4

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

4

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

4

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

4

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

4

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

6

Screw cap M51x1,5 rebound cpl.

48601960S

$62.26

7

Screw cap M51x1,5 compression

48601961S

$62.26

8

Adjuster kit screw cap

RP10021

$5.70

9

O-ring 46x2 NBR70 siliconized

48600048

$3.08

10

Sealkit 48mm SKF black

RP10012

$66.75

11

Guide bushing set fork 48mm

R14047

$25.70

12

Tube, including screw sleeve w

48600763S5

$162.78

13

tube incl. screw sleeve

48600763S6

$157.54

14

Guide bushing 12x14x10

48600430

$6.44

15

Tap compression cpl.

48601843S3

$55.06

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

17

Midvalve piston assembly d23

48602002S

$18.41

18

Spring (11,4) 0,4-8 valve

48600382

$2.05

19

Tap 6x46 rebound

48600576

$9.72

20

O-ring 6x1,2 NBR70

48600299

$1.49

21

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

22

Spring retainer 27,08x43x45

48601298

$5.88

23

Needle 4,5x43,6 cpl.

48600277S

$8.97

24

Needle 4,5x38,2 cpl.

48601558S

$11.59

25

Piston rod 12x554

48600568

$99.20

26

Adjustment tube 6x524,6

48602036

$5.60

27

Stop 12,4x31,9x200,3 cpl.

48601556S

$12.71

28

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

29

Spring (8,5) l6,5 valve

48600202

$2.05

30

Piston 6x27,3x9 compression cp

48601934S

$13.46

31

Screw cap M29,3x1 OC split cpl

48601553S

$25.70

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

$1.49

33

Shim 27,5x33x0,3

48601702

$10.74

34

HH collar screw M8x25

0025080256

$2.05

35

Screw cap M29,3x1

48601980S

$21.96

98

Fuchs grease IPR (250g)

T14034

$34.59

99

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

4

Spring (43,8) 3,6-470

91410098S

Unavailable

36

Fork protection ring 60,1mm

48601948

$2.05

37

Stroke indicator 48mm red

48602007

$4.11

38

Sticker set Xplor OC 238x182.5

52000238SET

$36.92

4

SPRING 5,0N/MM SET D=4,9MM

91410105S

Unavailable

4

SPRING 5,2N/MM SET

91410106S

Unavailable
