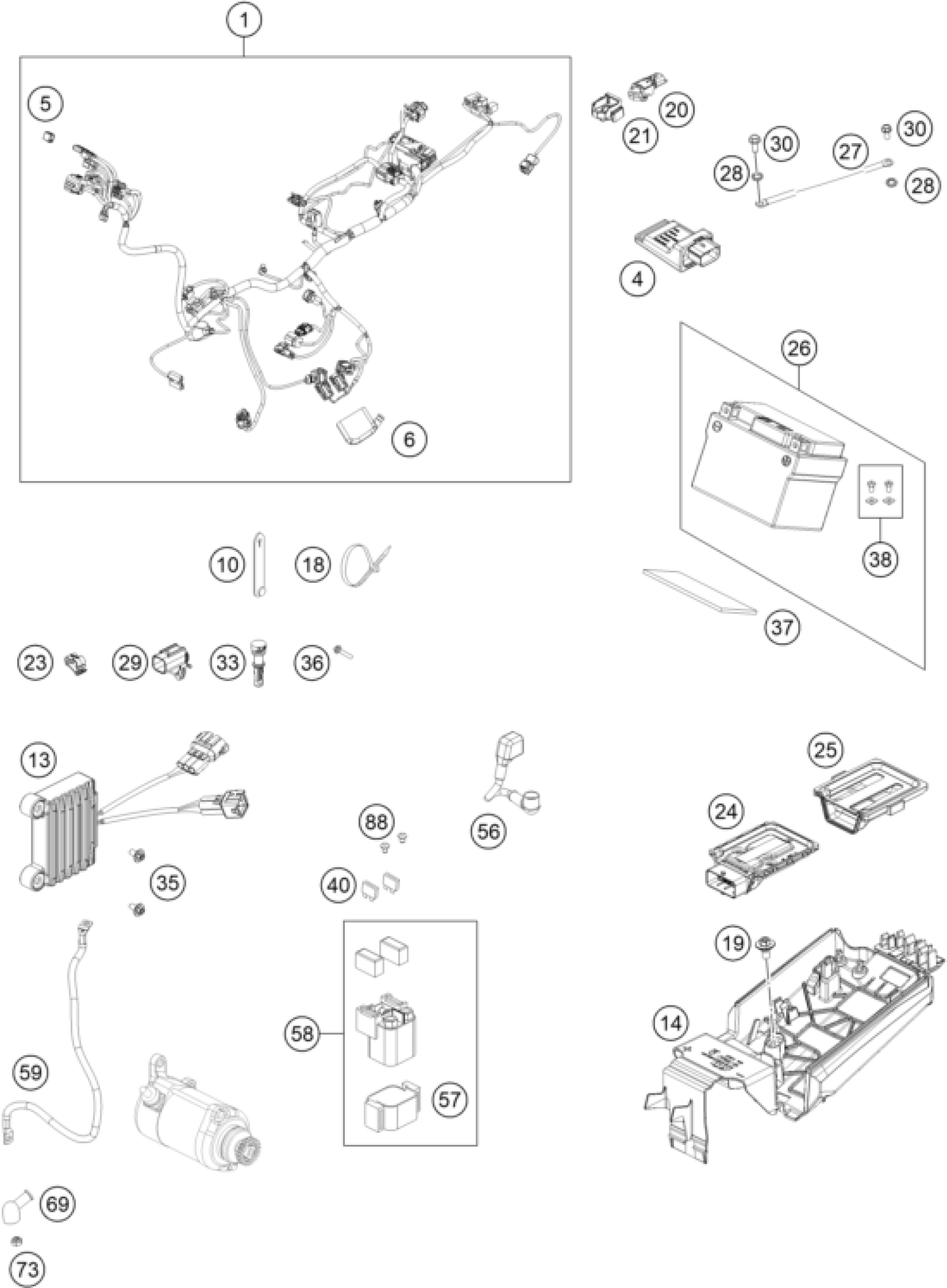

KTM 150 XC-W 2024 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness US

A45011175000

$350.52

4

Offroad-control-unit 1.0

A49011033033

$134.26

5

dummy plug

000700000LP001

$1.69

6

Injection valve protection

A42041025000

$7.75

10

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

13

Voltage regulator

A49011034000

$131.17

14

Battery holding bracket

A46011055100

$16.54

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

19

special screw M6x12x3

83008000012

$3.08

20

crank case pressure sensor

A45041075000

$50.01

21

Rubber band, crankcase pressur

A45041075010

$5.23

23

Line guide

83013026000

$3.08

24

Engine control unit

A45041031000

$312.47

25

Engine control unit rubber

A45041031050

$8.13

26

battery 12V/24Wh

79111053000

$166.05

27

Ground wire

75011097100

$10.18

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

29

Plug cap

000700000OU002

$24.21

30

HH collar screw M5x12 TX30

0025050126

$3.08

33

Holder control unit

55641030000

$3.08

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

37

METAMOLL 90X45X3MM 03

59003001099

$2.05

38

screw kit

79111053010

$4.11

40

Plug-in fuse, big 20A

58011109120

$1.49

56

Battery cable cmpl.

A46011059050

$23.65

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

58

Starter reley 12V 99

58211058000

$72.64

59

Starter cable

A44011059000

$25.24

69

Protection cap for starter eng

77240099000

$6.35

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
