Description

Price

1

Membrane Box cpl.

A45030051044

$212.24

2

Reed Valve Set

50530152044

$114.66

3

GASKET REED VALVE CASE

50430098050

$7.66

4

GASKET SUPPORTING PLATE

54830153050

$9.44

5

EJOT DELTA PT SCREW 30X5,5

00810300553

$1.49

6

EJOT DELTA PT SCREW 35X25

0081035253

$1.49

7

EJOT DELTA PT SCREW 30X12

0081030124

$1.49

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

Hose clip GEMI 52mm

54330061000

$7.47

11

INTAKE FLANGE

50430050000

$54.32

12

GASKET INTAKE FLANGE

50430098060

$5.23

8

retaining bracket angle valve

A44038065010

$9.25

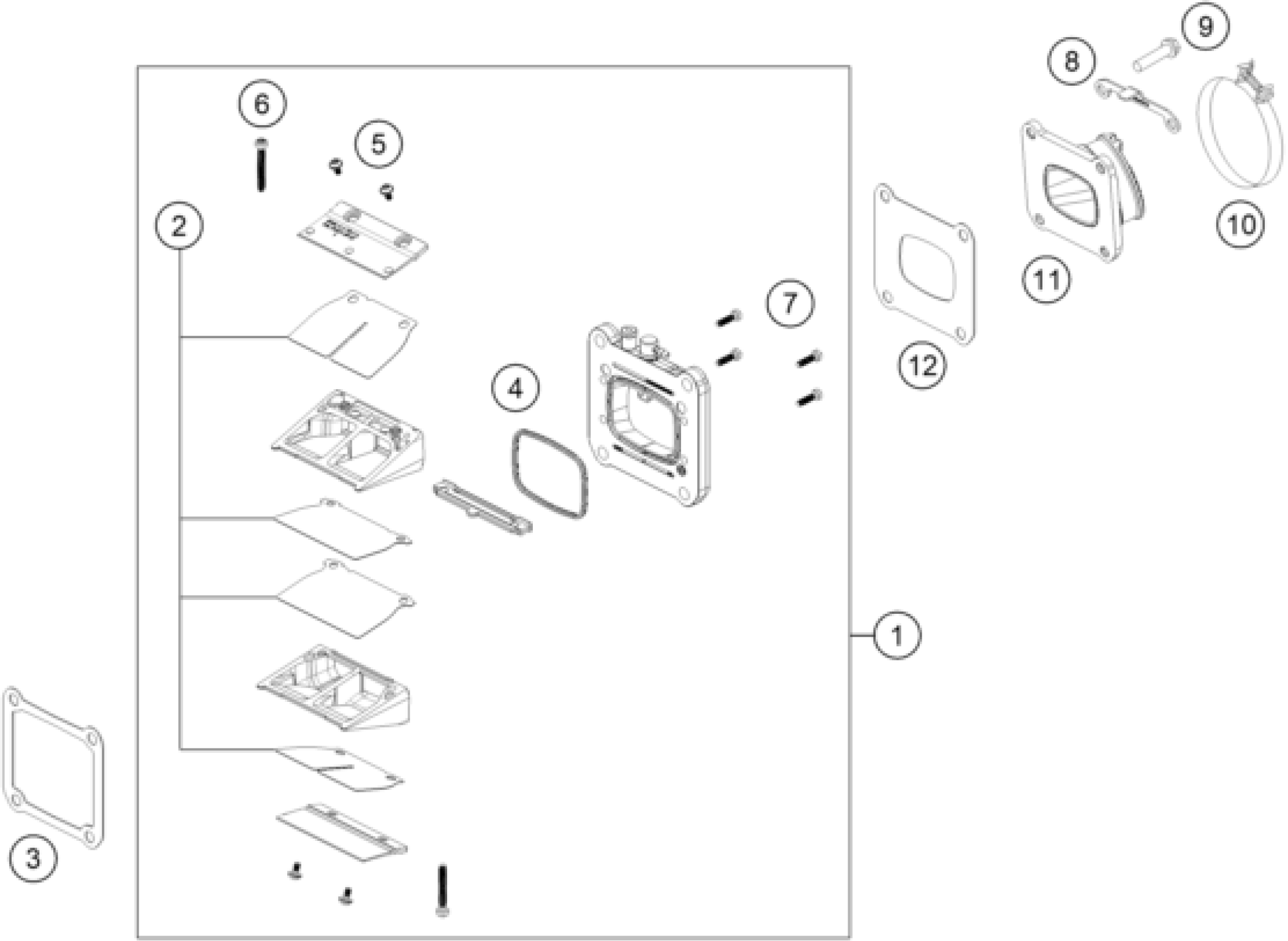

KTM 150 XC-W 2024 REED VALVE CASE Diagram

Membrane Box cpl.

Reed Valve Set

GASKET REED VALVE CASE

GASKET SUPPORTING PLATE

EJOT DELTA PT SCREW 30X5,5

EJOT DELTA PT SCREW 35X25

EJOT DELTA PT SCREW 30X12

HH collar screw M6x25 TX30

Hose clip GEMI 52mm

INTAKE FLANGE

GASKET INTAKE FLANGE

retaining bracket angle valve
