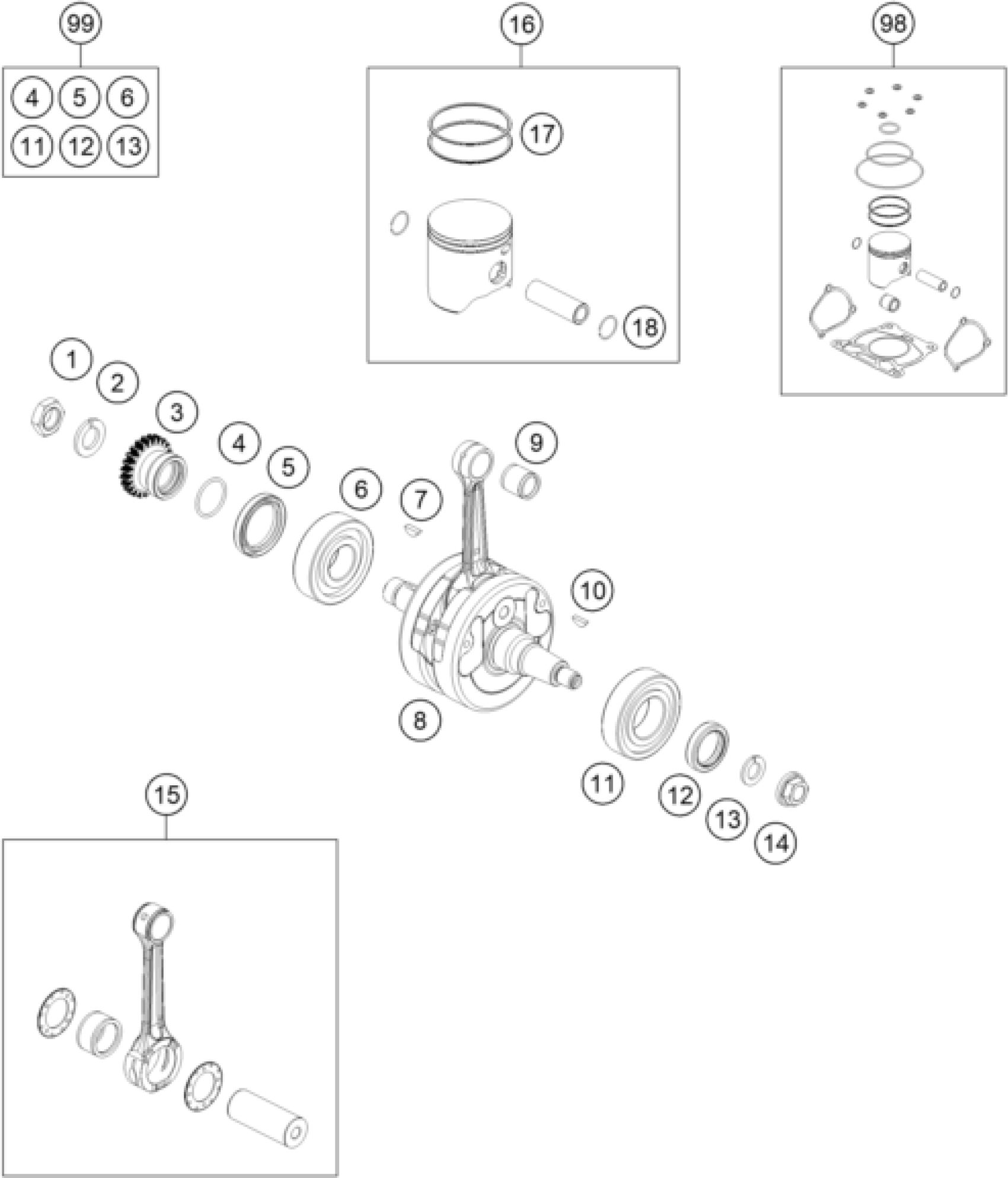

KTM 150 XC-W 2024 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Nut M18x1.5 Precote

0910001801000S

$4.29

2

LOCKING RING VSK 16

50230029016

$2.05

3

Primary gear wheel 23 teeth.

A42032023023

$60.86

4

O-RING 25,00X2,00 NBR 70

0770250020

$3.08

5

Shaft seal ring 32x45x6.5

0760324566

$12.33

6

BALL BEARING 6305 JR2 CS36

0625063055

$43.19

7

woodruff key DIN 6888 4x5x13

0888040050

$4.11

8

Crankshaft

A42030118000

$437.10

9

NEEDLE BEARING KBK 15X19X20

51030034000

$25.05

10

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

11

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

12

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

13

Locking ring

0710001324300

$1.49

14

Collar nut, M12x1, right

49030021100

$2.05

15

CON-ROD REPAIR KIT

50430015044

$298.54

16

Piston I cpl. 150 Enduro

51730007000 I

Unavailable

16

Piston II cpl. 150 Enduro

51730007000 II

Unavailable

17

PISTON RING SET 150

51630032044

$86.01

18

WIRE LOCK RING 15X1

50330074500

$2.05

98

Pistonkit Gr.I 150 Enduro 2024

A43030007010 I

Unavailable

98

Pistonkit Gr.II 150 Enduro 202

A43030007010 II

Unavailable

99

Repkit crankshaft bearing 2024

A42030018010

Unavailable
